2 H110 MACHINE CONTROLLER 2.5 FRONT PANEL CONNECTORS 12 STANDALONE MANUAL H110 MACHINE CONTROLLER 05/2020 Connector Pin Information Lan Host Comms (RJ45) 1 8 Pin No Signal Pin No Signal 1 +ve Transmit 5 N/C 2 -ve Transmi…
2 H110 MACHINE CONTROLLER
2.5 FRONT PANEL CONNECTORS
STANDALONE MANUAL H110 MACHINE CONTROLLER 05/2020 11
2.5 FRONT PANEL CONNECTORS
0
1
19
2
17
16
18
15
20
3
4
5
8
6
14
7
9
1112
10
13
Item Type Connector Description
1 RJ45 3SK02a LAN 2 Host Comms – Ethernet Port
2 Firewire – Port 1 3SK54 Not Used
3 Firewire – Port 2 3SK55 Digital Camera
4 Firewire – Port 3 3SK53 Not Used
5 Jack Socket (Green) 3SK47 Line Out - Not Used
6 Jack Socket (Pink) 3SK48 Mic In - Not Used
7 USB 3.0 3SK59 USB8 – USB/RS232 Converter
8 USB 3.0 3SK35 USB4 – NextMove ES
9 USB 3.0 3SK57 USB1 – USB Hub
10 USB 3.0 3SK34 USB2 - Not Used
11 Visual Display Port 3SK63 Visual Display Port - Not Used
12 15 Way D Type Plug 3PL05 VGA - Monitor Display
13 USB 2.0 3SK37 USB6 – M37 PSU
14 USB 2.0 3SK36 USB3 – Dongle
15 PS2 3SK04 6 Pin Mini Keyboard - Not Used
16 USB 2.0 3SK58 USB7 – Covers RH Operator USB Devices
17 USB 2.0 3SK56 USB5 – Covers LH Operator USB Devices
18 9 Way D Type Plug 3PL03 COM 2 RS232 – Stinger (If fitted)
19 DVI 3SK64 DVI-I – Monitor – Not Used
20 RJ45 3SK02b LAN 1 Host Comms – Not Used
NOTE
Ensure that the correct USB ports are used. Manufacturers claim that USB 2.0 and USB 3.0 are
backward and forwards compatible, but there has been reported problems of some USB 2.0
devices not working correctly in a USB 3.0 port.
2 H110 MACHINE CONTROLLER
2.5 FRONT PANEL CONNECTORS
12 STANDALONE MANUAL H110 MACHINE CONTROLLER 05/2020
Connector Pin Information
Lan Host Comms (RJ45)
1
8
Pin No Signal Pin No Signal
1 +ve Transmit 5 N/C
2 -ve Transmit 6 -ve Receive
3 +ve Receive 7 N/C
4 N/C 8 N/C
USB 1 – USB 4
USB 3.0 Type A Socket
1 2
3
4
9 8 7 6 5
Pin No Signal Pin No Signal
1 V Bus 6 StdA_SSRX/TX+
2 Data - 7 GND_DRAIN
3 Data + 8 StdA_SSRX/TX-
4 GND 9 StdA_SSRX/TX+
5 StdA_SSRX/TX-
USB 5 – USB 8
USB 2.0 Type A Socket
1 2
3
4
Pin No Signal Pin No Signal
1 V Bus 3 Data +
2 Data - 4 GND
2 H110 MACHINE CONTROLLER
2.5 FRONT PANEL CONNECTORS
STANDALONE MANUAL H110 MACHINE CONTROLLER 05/2020 13

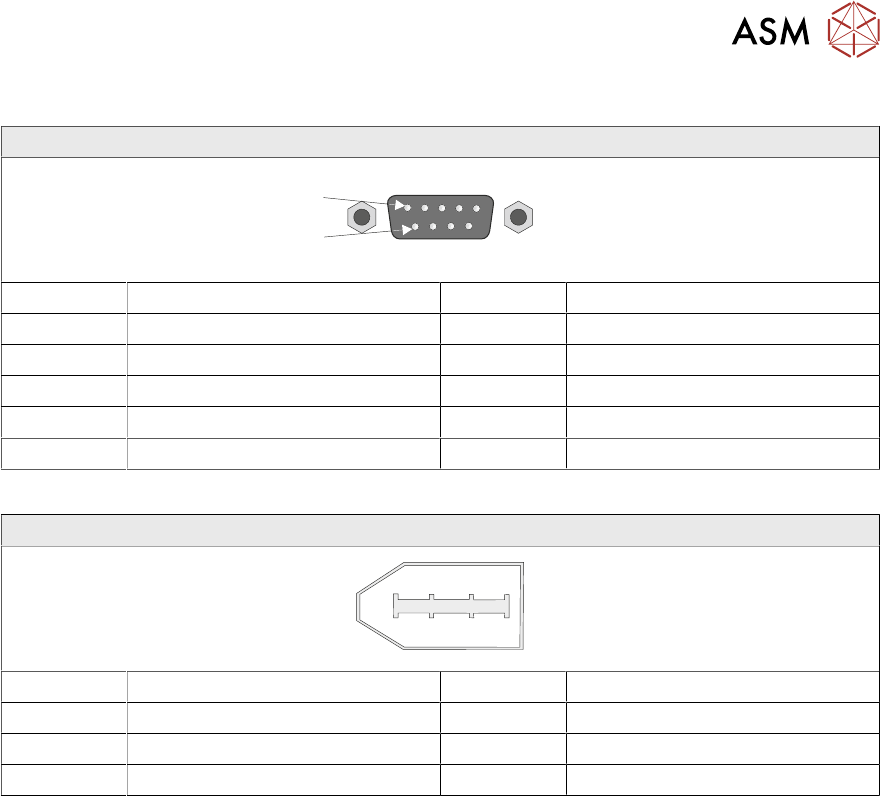

COM 1 RS232
9 Way D Type Plug
1
6
Pin No Signal Pin No Signal
1 Data Carrier Detect (DCD) 6 Data Set Ready (DSR)
2 Receive Data (RxD) 7 Request To Send (RTS)
3 Transmit Data (TxD) 8 Clear To Send (CTS)
4 Data Terminal Ready (DTR) 9 Ring Indicator (RI)
5 Signal Ground (GND)
1394a PCI Interface Card (Port 1 – 3)
Firewire Port
1
5
2
6
3
4
Pin No Signal Pin No Signal
1 Power 6 Twisted Pair B+
2 Ground 7 Twisted Pair A-
3 Twisted Pair B- 8 Twisted Pair A+
