3. Detail
3.1 Condition for executing the function
This function enables Teach and Trace of pickup position on a lane stopping or resetting, even
while the other lane is running.
The following “Table 3.1.1” shows availabilities of Teach and Trace with or without this function.
It is a comparison with an existing function.
State of Lane-1 State of Lane-2 Existing function This function
RESET O (both lanes) O (both lanes)
STOP O (both lanes) O (both lanes)
RESET
AUTO. X O (only lane 1)
RESET O (both lanes) O (both lanes)
STOP O (both lanes) O (both lanes)
STOP
AUTO. X O (only lane 1)
RESET X O (only lane 2)
STOP X O (only lane 2)
AUTO.
AUTO. X X
Table 3.1.1 Condition for executing the function
YAMAHA Motor Co. Ltd.,
IM Company
SMT Software Engineering Group
MDOC-SOFT50146
4/7
3.2 Operation procedure
1) On the [parts] window, select parts on a lane in a STOP or RESET state by , or
button, then the button can be clicked.
Fig. 3.2.1 Parts window
2) The [parts Teach] window opens by clicking the button. (See Fig. 3.2.2)
Axis moving, Teach or Trace can be operated on this window.
Please push the , or button if you want to select parts.
Fig. 3.2.1 Parts teach window (Feeder parts)
YAMAHA Motor Co. Ltd.,
IM Company
SMT Software Engineering Group
MDOC-SOFT50146
5/7

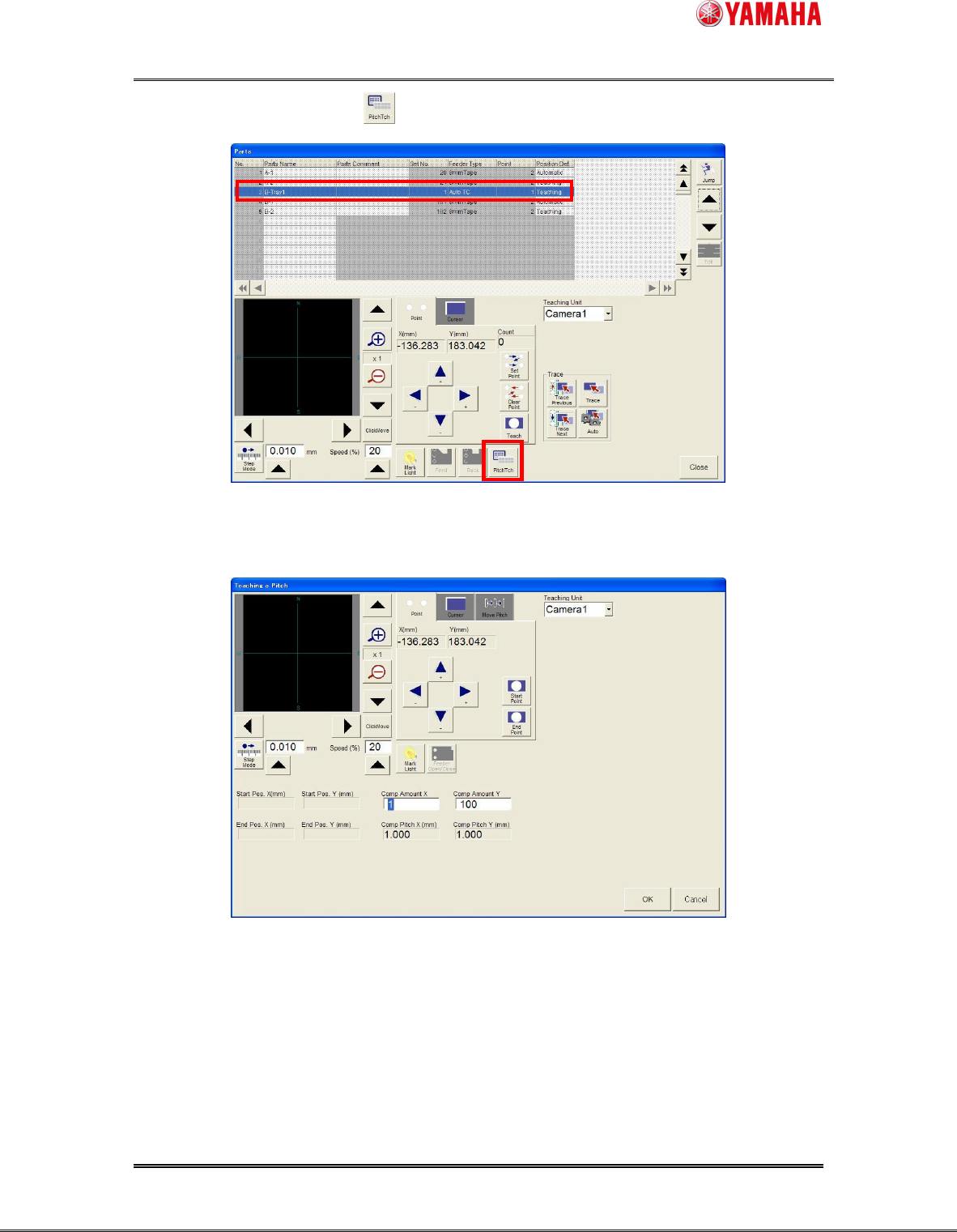

3) When tray parts are chosen, button can be clicked. (See Fig. 3.2.3)
Fig. 3.2.3 Parts teach window (Tray parts)
4) Each operation is possible on the [Teaching a Pitch] window.
Fig. 3.2.4 Teaching a pitch window
