Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE Fig. L1-4 1003-001 Fig. L1 391 4U250146 UNIT_I/O 1 109490003M-001 392 21 1FE986 BRACKET 1 109490003M-002 393 221AA017 ROHS_HEX-SCT 2 109490003M-003 394 221HA004 WASHER 2 1…

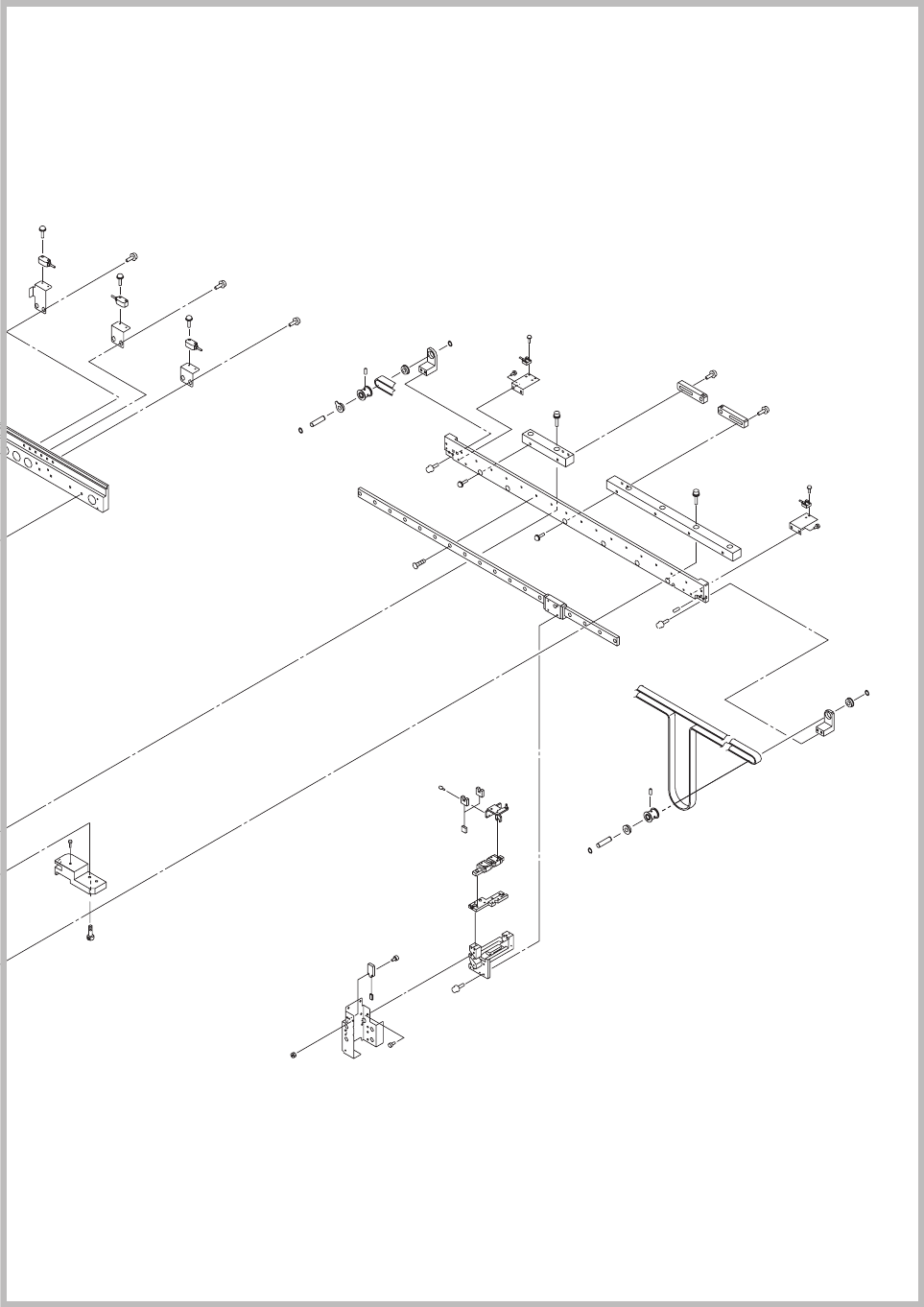

Fig. L1

Fig. L1-4

Key No. PART No. PART NAME Q’ty

REMARKS

NOTE

Fig. L1-4

1003-001

Fig. L1

391 4U250146 UNIT_I/O 1 109490003M-001

392 211FE986 BRACKET 1

109490003M-002

393 221AA017 ROHS_HEX-SCT 2

109490003M-003

394 221HA004 WASHER 2

109490003M-004

395 221HA104 WASHER 2

109490003M-005

396 23N30632 WIRING 2

109490003M-006

397 221DA053 MACHINE_SCREW 2

109490003M-007

398 0916D209 ACCESS_WIRING 2

109490003M-008

GS-DA420

MEMO
