A B DET AIL “A” DET AIL “B” From L1-4 See Fig. L1-4 Key No.391 9E5 9E3 9E0 9E6 9D2 9D9 9E1 9E4 9E2 9C1 9D4 9D6 9D8 9D7 9D8 9D2 9D3 9D9 9E6 9C3 9C4 9C2 9C2 (BASE:Document No. P-309-00X or P-310-00X UNIT -1 1 Fig.L1-10) Fi…
MEMO
A
B
DETAIL “A”
DETAIL “B”
From L1-4
See Fig. L1-4
Key No.391
9E5
9E3
9E0
9E6
9D2
9D9
9E1
9E4
9E2
9C1
9D4
9D6
9D8
9D7
9D8
9D2
9D3
9D9
9E6
9C3
9C4
9C2
9C2
(BASE:Document No. P-309-00X or
P-310-00X UNIT-11 Fig.L1-10)

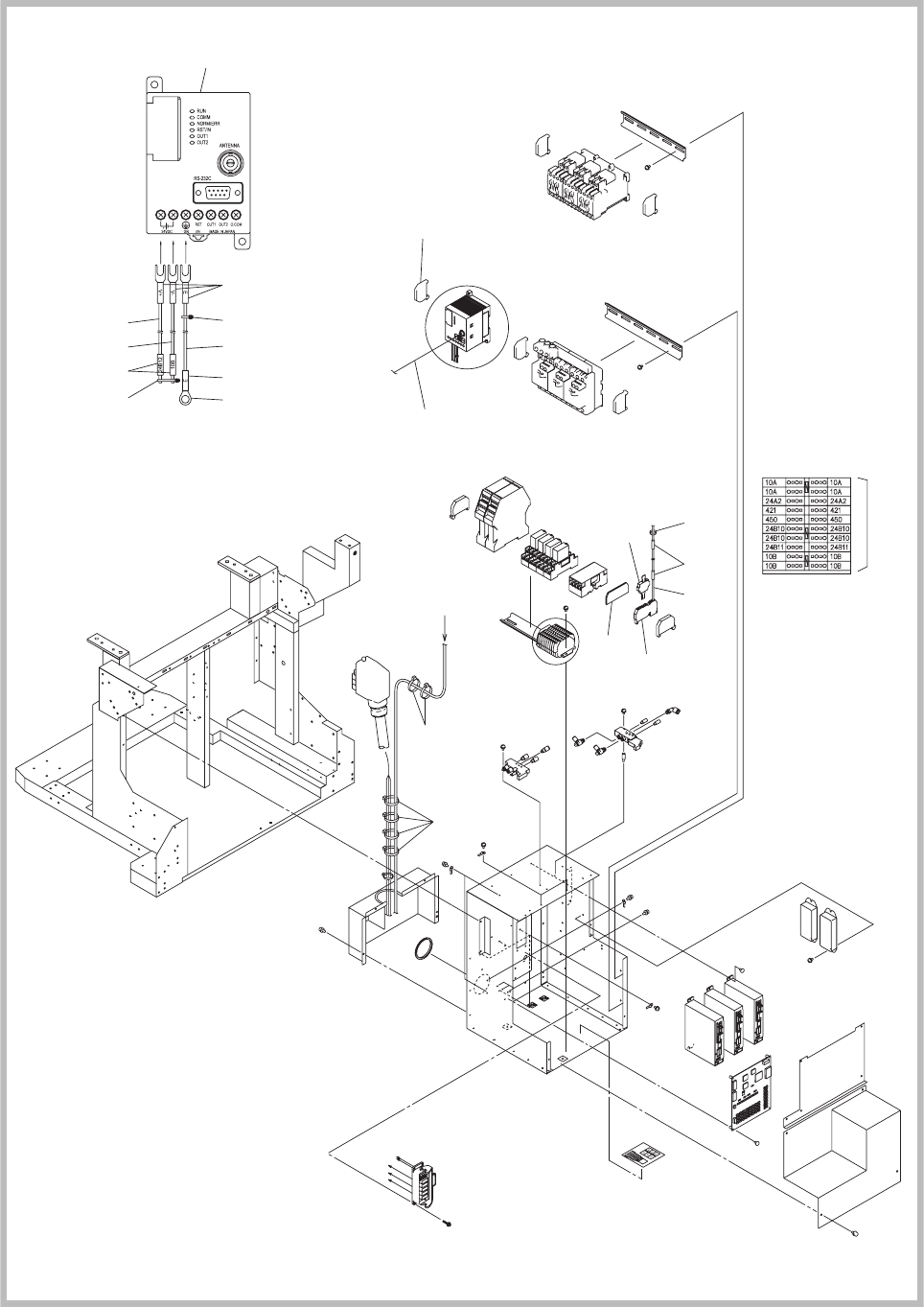

Fig. L1-10
電装ボックス２
Electrical Box 2
1003-001
Fig. D1
パレット
ACV
システム対応（
GS-DA420
）
FOR PALLET ACV SYSTEM(GS-DA420)
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
9C1 23N30737 ACCESS_WIRING(M 20 109490003M-121
9C2 23N30738 ACCESS_WIRING(M 10
109490003M-122
9C3 4U260322 EQUIPMENT 1
109490003M-123
9C4 23N10027 BRACKET_WIRING 2
109490003M-124
9D2 0949A018 CORD 2
309490003J-002
9D3 0949A017 CORD 1
309490003J-003
9D4 0949A00Y CORD 1
309490003J-004
9D6 4J300015 CAB_JOINTTERMIN 1
309490003J-006
9D7 4J300050 CAB_JOINTTERMIN 3
309490003J-007
9D8 23N20115 TUBE_WIRING 4
309490003J-008
9D9 23N20103 TUBE_WIRING 4
309490003J-009
9E0 0914B30E PLUGGABLE_FUSE 1
309490003J-010
9E1 0914B30F TERMINAL 1
309490003J-011
9E2 0914B30G END_PLATE 1
309490003J-012
9E3 0949A01R NAME_PLATE 1
309490003J-013
9E4 23N30524 ACCESS_WIRING 1
309490003J-014
9E5 4V320007 FUSE 250V 1A 1
309490003J-015
9E6 23N30737 ACCESS_WIRING(M 2
309490003J-016
Fig. L1
Fig. L1-10
1003-001
GS-DA420
