SIPLACE Pro 15.1 (R18-1) / Installation Manual 05/2018 Edition
24
6.2.1 Installation without Local SIPLACE Line Control Server
If SIPLACE Line Control Server has already been installed on a remote computer this software
component has to be disabled during the SIPLACE Pro installation.
► Ensure that the remote computer is connected to the network and available.
► Start installing SIPLACE Pro as described in section 6.2.
► Proceed as follows when the Packages and Features dialog is displayed.

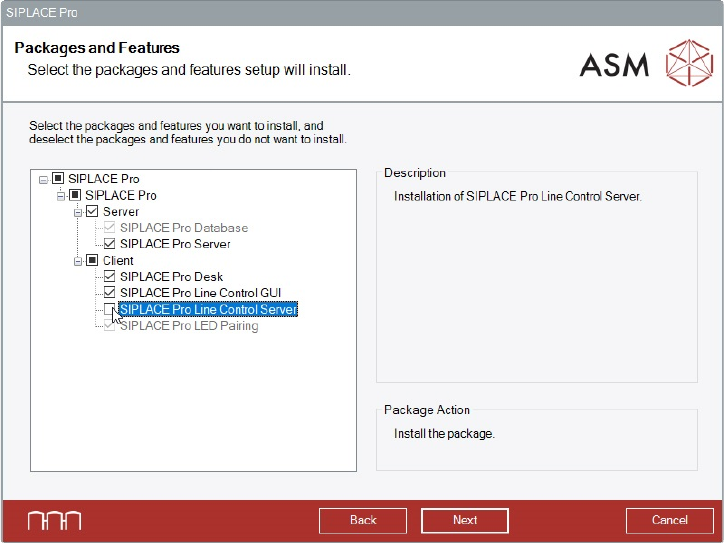

Figure 6-18: Disabling SIPLACE Pro Line Control Server
► Disable the SIPLACE Pro Line Control Server software feature.
► Click the Next button.
► Configure SIPLACE Pro Server and the SIPLACE Pro access rights as described in section 6.2
(Figure 6-6, Figure 6-7 and Figure 6-8).
SIPLACE Pro 15.1 (R18-1) / Installation Manual 05/2018 Edition
25
The Select Server dialog is displayed.

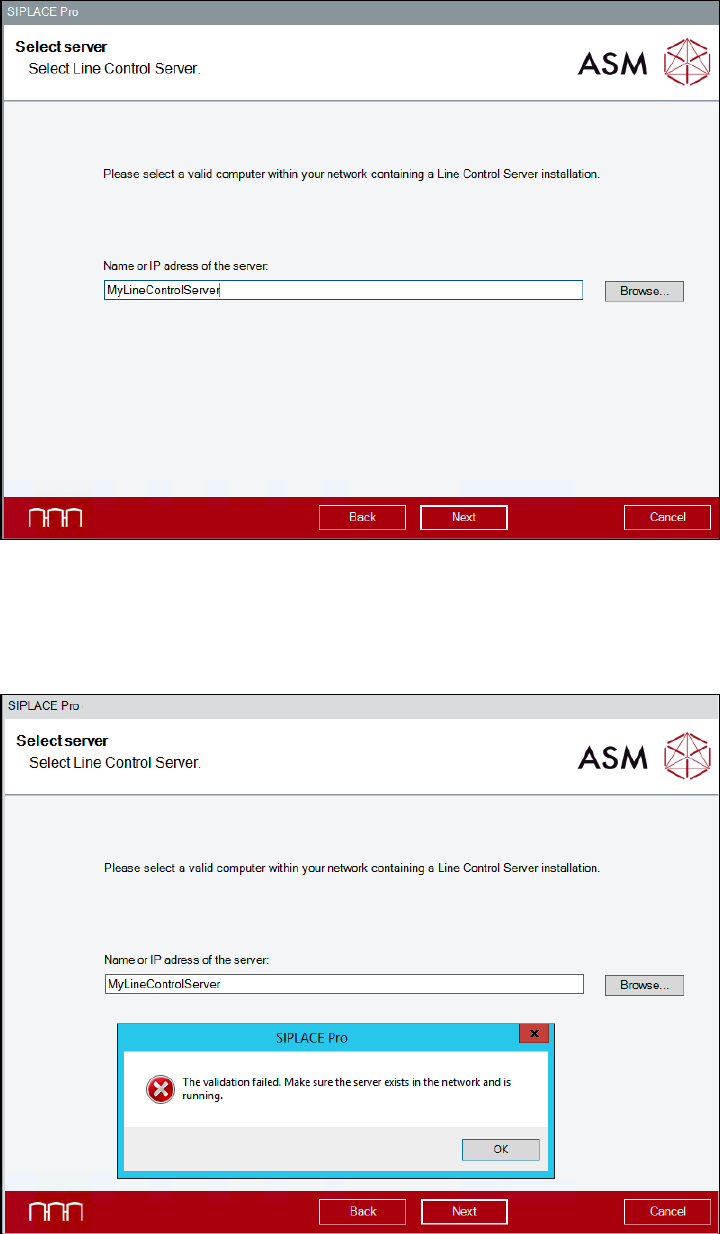

Figure 6-19: Selecting Line Control Server
► Enter the server name of the remote computer on which the Line Control Server is installed.
► Click the Next button.
The following message is displayed if the remote computer is unavailable.
Figure 6-20: Validation failed
► In this case, click the OK button and solve the problem.
► Click the Next button.
The installation continues with the SQL Server Login dialog as described in Figure 6-9.
SIPLACE Pro 15.1 (R18-1) / Installation Manual 05/2018 Edition
26
NOTICE
After installation, the remote server must be running. Otherwise, required configuration
steps cannot be done and, as a consequence, the product will not work!
6.2.2 Installation without Local SIPLACE Pro Server
If SIPLACE Pro Server has already been installed on a remote computer this software component
has to be disabled during the SIPLACE Pro installation.
► Ensure that the remote computer is connected to the network and available.
► Start installing SIPLACE Pro as described in section 6.2.
► Proceed as follows when the Packages and Features dialog is displayed.

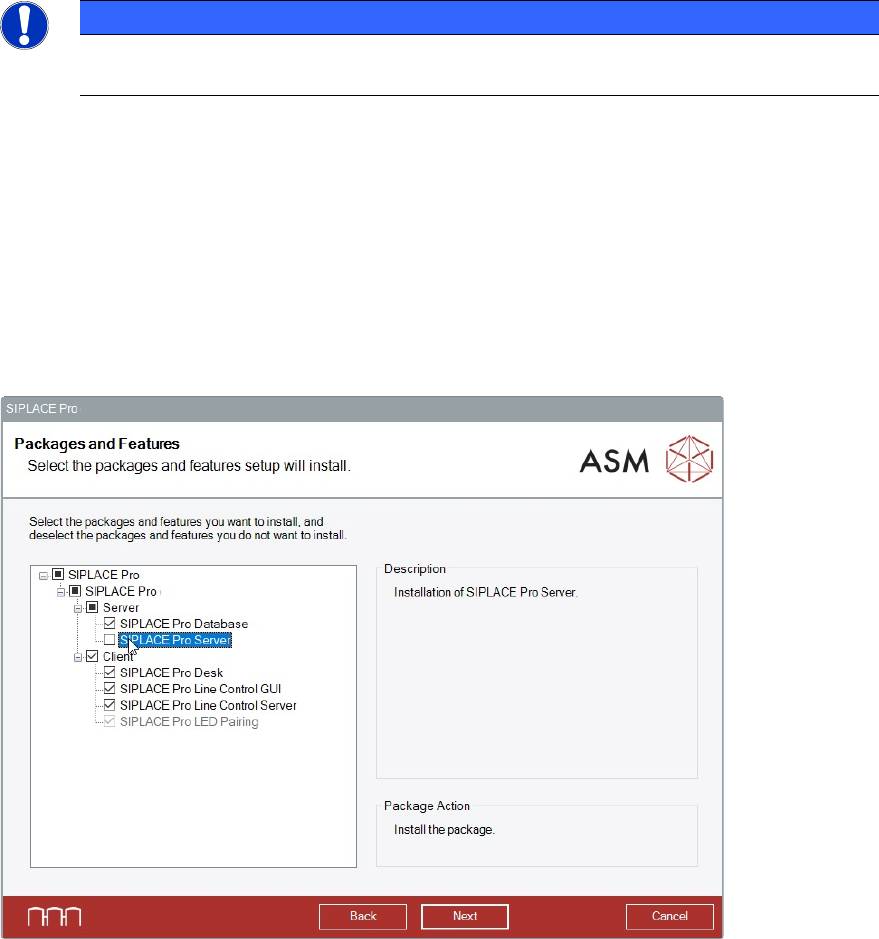

Figure 6-21: Disabling SIPLACE Pro Server
► Disable the SIPLACE Pro Server software feature.
► Click the Next button.
