SQUEEGEE MODULE

REPLACEMENT PROCEDURES

Chapter Issue 8 Oct 06 Technical Reference Manual 9.9

5. Remove the drive belt cover plate from the squeegee printhead mechanism

and remove the broken drive belt.

Rear Squeegee

Drive Belt

1. The rear squeegee drive belt (right hand stepper motor) can be replaced

without having to remove the printhead mechanism from the print carriage.

2. Slacken off the three screws securing the right hand motor to the motor

support plate.

3. Fit the new belt in position.

4. Using a cable tie wrap or similar, provide a loop around the top of the body

of the motor enabling the motor to be pulled using a force meter. Ensure

that the force meter is pulled in the direction which the drive belt is fitted,

figure above refers.

5. Pull the force meter until a tension of 3-4kgs is monitored on the meter.

Tighten the three screws whilst the motor is under tension.

Front Squeegee

Drive Belt

1. To replace the front squeegee drive belt (left hand stepper motor), the

printhead mechanism must be removed from the print carriage.

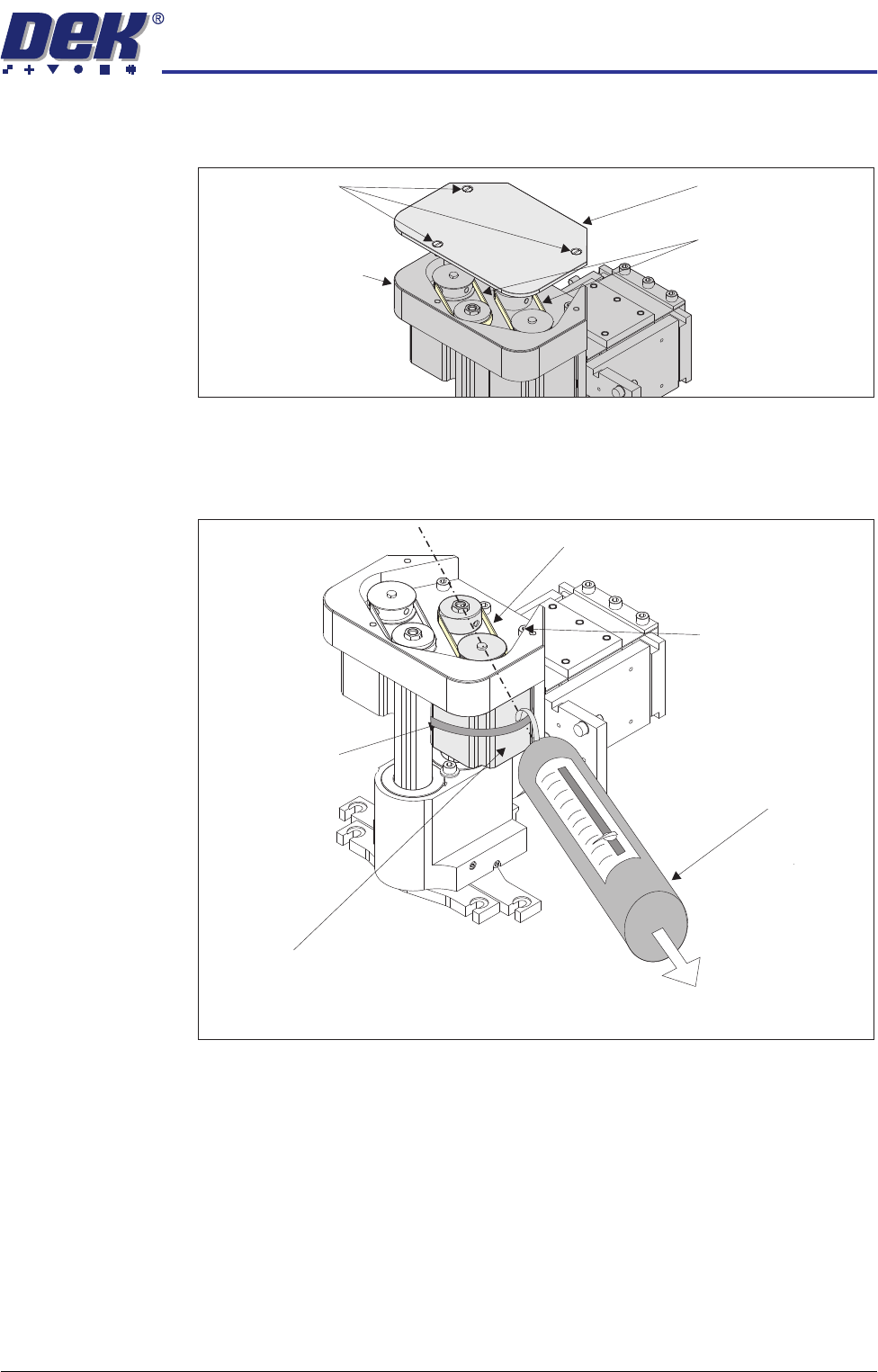

Drive Belt Cover Plate

Drive Belts

Squeegee Printhead

Mechanism

Securing Screws

Tension in Direction of

Drive Belt Orientation

Right Stepper Motor

Rear Squeegee Motor Tensioning

Force Meter

Motor Securing Screw

Position (3 positions)

Looped Cable Tie

Drive Belt

SQUEEGEE MODULE

REPLACEMENT PROCEDURES

9.10 Technical Reference Manual Chapter Issue 8 Oct 06

2. Disconnect the following connectors from the print carriage, left hand side

(figure in Step 10 of ProFlow to Squeegees section refers):

• Rear Squeegee Motor

• Front Squeegee Motor

• Home Sensors

• Squeegee Pressure Amplifier

3. Remove the printhead mechanism by unscrewing the four screws securing

the unit to the print carriage.

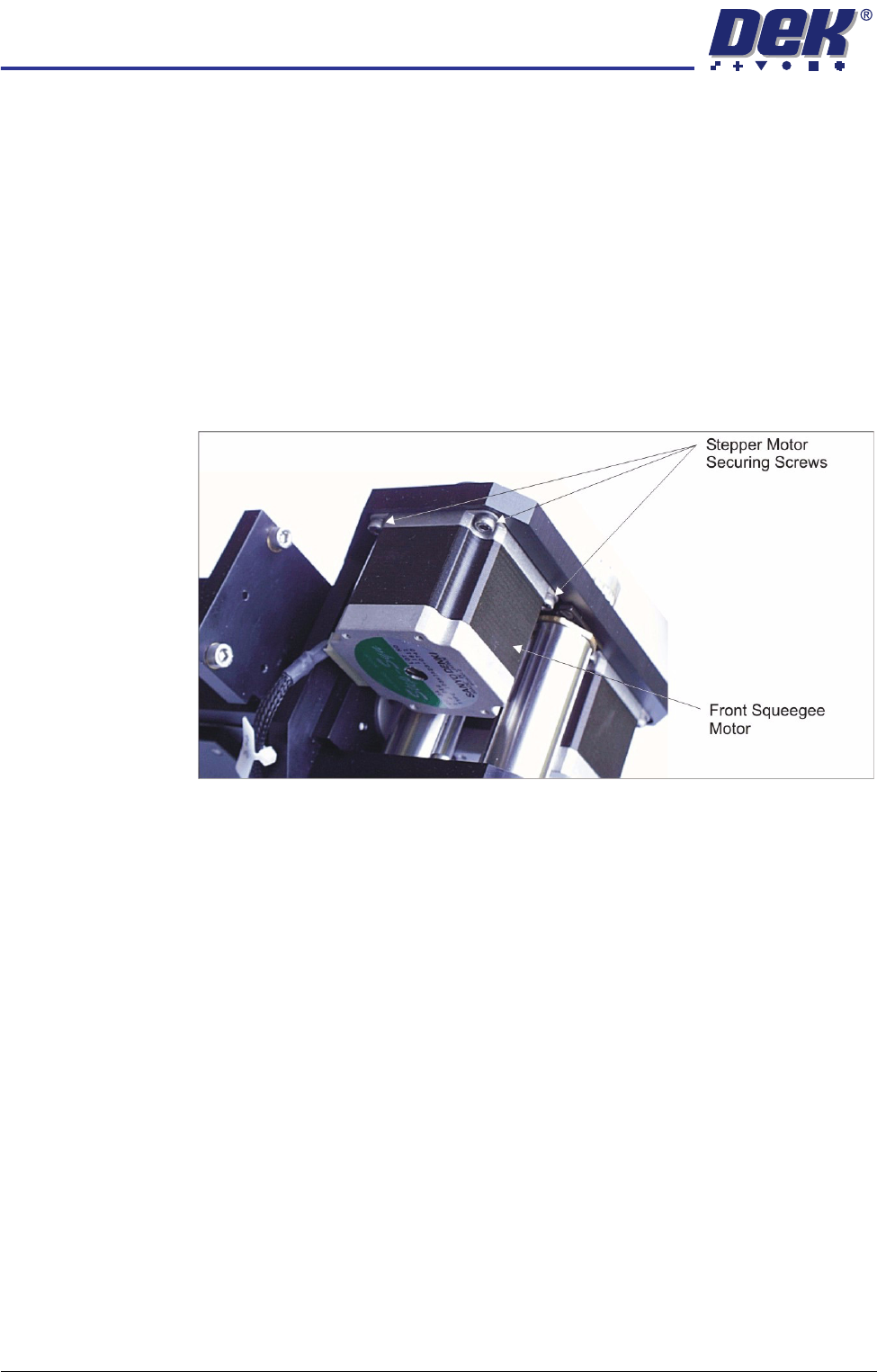

4. Placing the unit on a secure surface, slacken off the three screws securing

the left hand motor to the support plate.

5. Fit the new belt in position.

6. Using a cable tie wrap or similar, provide a loop around the top of the body

of the motor enabling the motor to be pulled using a force meter. Ensure

that the force meter is pulled in the direction which the drive belt is fitted,

Rear Squeegee Motor Tensioning figure example refers.

7. Pull the force meter until a tension of 3-4kgs is monitored on the meter.

Tighten the three screws whilst the motor is under tension.

8. On completion re-fit the printhead mechanism to the print carriage refit the

drive belt cover plate and re-connect all leads to the print carriage, left hand

side.

9. Refit the squeegees.

Fitting the

Squeegees

It is usual to fit two trailing edge squeegees and use the machine in the Print/

Print mode.

When fitting a single squeegee (trailing edge or diamond section) to the

machine, it must be fitted to the front squeegee mount only.

The following procedure describes a double trailing edge squeegee configura-

tion fit to the machine printhead mounting assembly.

1. From the Start menu select Setup Product - Setup Squeegees.

SQUEEGEE MODULE

REPLACEMENT PROCEDURES

Chapter Issue 8 Oct 06 Technical Reference Manual 9.11

2. From the Modal Commands panel select Change Squeegees. The mes-

sage ‘Open cover and change squeegees’ is displayed.

3. Raise the front printhead cover/shutter to gain access to the printhead

mounting assembly.

4. Fit the rear squeegee to the rear squeegee mount tightening the thumb-

screws finger tight.

NOTE

The locking thumbscrews on the rear squeegee are positioned wider apart

than those fitted to the front squeegee and the keyway slot is positioned on

the left hand side of the rear squeegee.

5. Fit the front squeegee to the front squeegee mount ensuring the thumb-

screws are tightened finger tight.

NOTE

The locking thumbscrews on the front squeegee are positioned closer

together than those fitted to the rear squeegee and the keyway slot is

positioned on the right hand side of the front squeegee.

6. If fitted remove the stencil.

7. Lower the front printhead cover/shutter.

8. Press the System button.

9. Select Finish.

10. If the initial Squeegee Calibration Readings Setting has been completed

previously on the machine, carry out Squeegee Reference Height calibra-

tion (refer to Calibrations section later in this chapter).

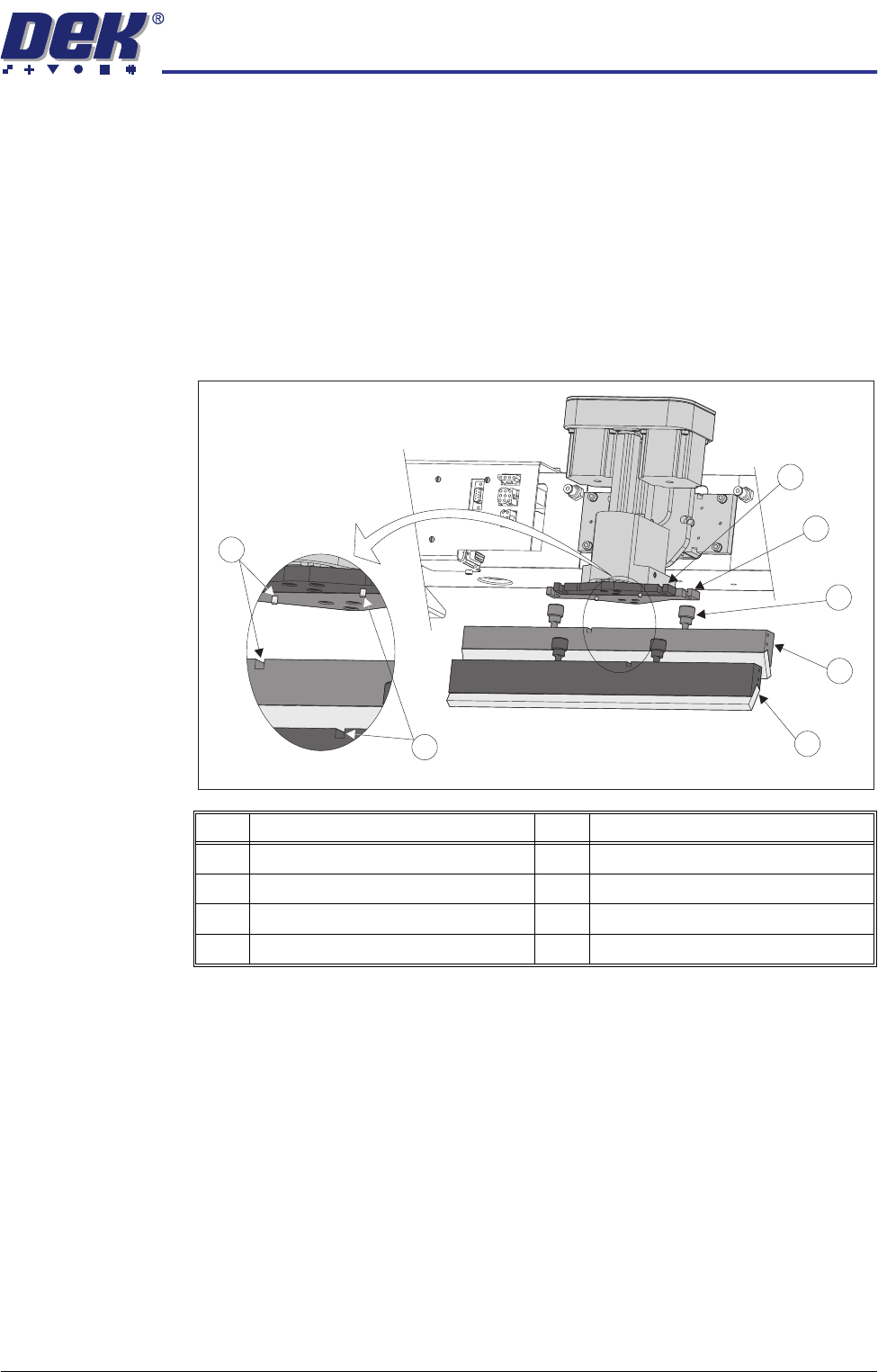

Item Description Item Description

1 Front Squeegee Mount 5 Front Squeegee

2 Rear Squeegee Mount 6 Front Squeegee Key and Keyway Slot

3 Locking Thumbscrew (in 4 positions) 7 Rear Squeegee Key and Keyway Slot

4 Rear Squeegee

Fitting Squeegees
