KLV_YCP10_PartsList.pdf - 第29页

9 10 21 34 26 28 13 2 27 24 19 18 20 3 35 36 24 25 7 24 14 25 29 23 7 32 25 24 5 31 4 24 35 35 35 17 6 16 15 30 30 24 19 11 14 20 12 30 8 19 24 33 20 1 22 34 27 23 27 9 10 21 34 26 28 13 2 27 24 19 18 20 3 35 36 24 25 7 …

100%1 / 67
13
14
28
8
25
1
17
6
16
12
8
18
26
14
2
15
20
18
24
4
21
20
11
4
24
7
28
5
23
28
5
23
27
10
15
15
18
18
28
23
5
28
4
11
23
24
5
4
20
24
9
29
22
3
27
19
20
28
13
14
28
8
25
1
17
6
16
12
8
18
26
14
2
15
20
18
24
4
21
20
11
4
24
7
28
5
23
28
5
23
27
10
15
15
18
18
28
23
5
28
4
11
23
24
5
4
20
24
9
29
22
3
27
19
20
28

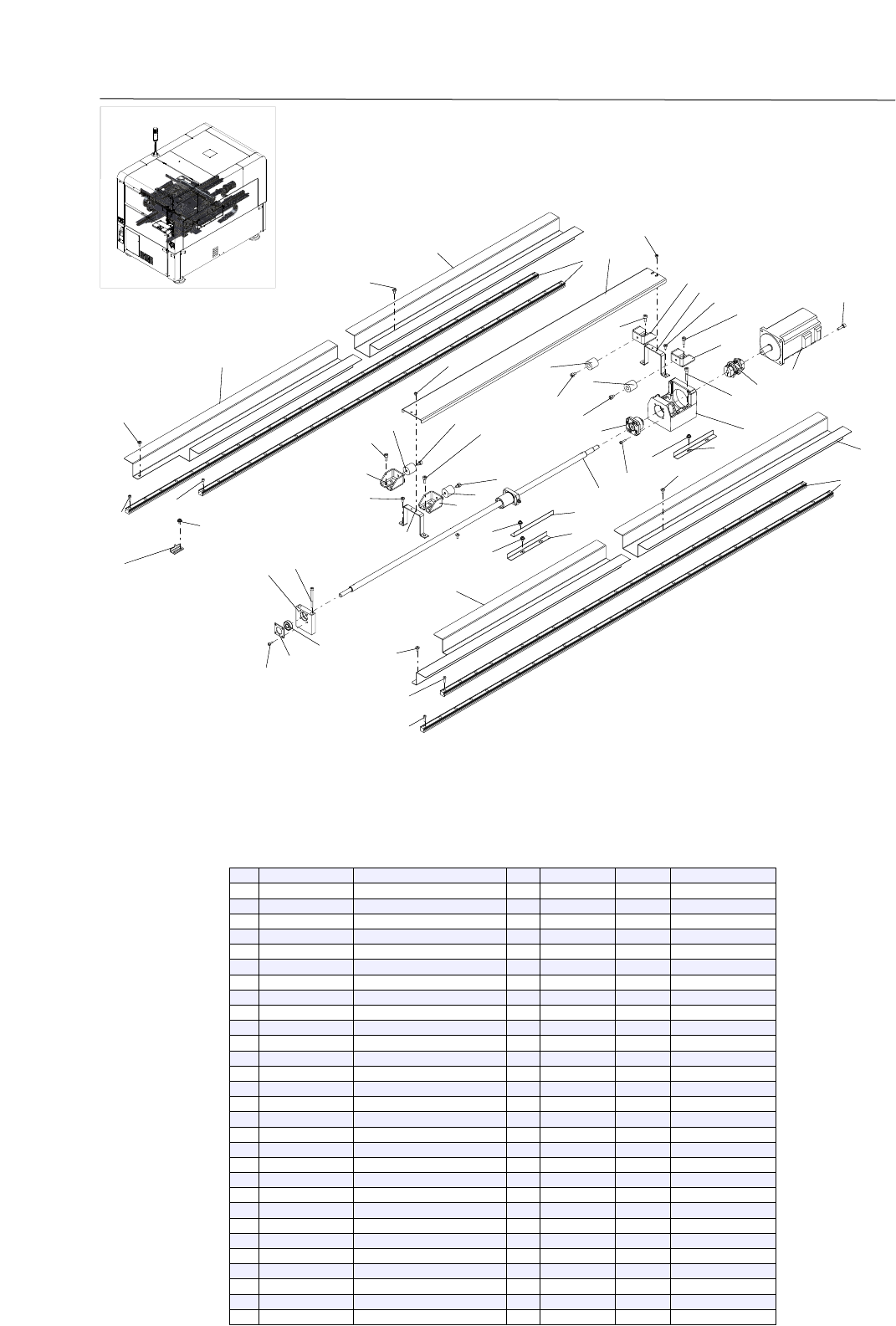

Y-Drive
Moving-axis Section
KLV-1502
3-7
NO
Parts_No.
Parts_Name
Q'ty
Remarks
Compati
Revision_No._date
1
90K65-513K04
AC SERVO MOTOR
1
2
KG2-M2604-00
SUPPORT UNIT
1
3
KGJ-M3159-01
PLATE R, BRG.
1
4
KHT-M3111-00
STOPPER Y
4
5
KHT-M3112-00
DAMPER,Y
4
6
KHY-M2641-00
HOLDER,MOTOR Y
1
7
KLV-M31AA-00
BALL SCREW,Y AXIS
1
8
KLV-M31A1-00
GUIDE,Y
1
four-piece set
9
KLV-M31A2-00
HOLDER,BRG.
1
10
KLV-M31A3-00
COVER,BALL SCREW
1
11
KLV-M31A4-00
STAY,SCREW COVER
2
12
KLV-M31A5-00
COVER,Y 1 GUIDE
1
13
KLV-M31A6-00
COVER,Y 2 GUIDE
1
14
KLV-M31A7-00
COVER,Y 3 GUIDE
2
15
KLV-M31A9-00
DOG,Y ORG.
3
16
KLV-M31AG-00
DOG,CLEANER SAFE
1
17
KM0-M2220-00
COUPLING, X-AXIS
1
18
90990-11J004
SCREW, PAN HEAD W/W
8
19
91312-04010
BOLT HEX,SOCKET HEAD
4
20
91312-04014
BOLT HEX,SOCKET HEAD
102
21
91312-04016
BOLT HEX,SOCKET HEAD
4
22
91312-05060
BOLT HEX,SOCKET HEAD
2
23
91312-06008
BOLT HEX,SOCKET HEAD
4
24
91312-06014
BOLT HEX,SOCKET HEAD
16
25
91312-06020
BOLT HEX,SOCKET HEAD
4
26
91312-06035
BOLT HEX,SOCKET HEAD
4
27
98902-04006
SCREW BINDING HEAD
4
28
98902-05010
SCREW BINDING HEAD
16
29
90933-01J000
BEARING
1
9
10
21
34
26
28
13
2
27
24
19
18
20
3
35
36
24
25
7
24
14
25
29
23
7
32
25
24
5
4
24
35
35
17
6
16
15
30
24
19
11
14
20
12
30
8
19
24
20
1
22
27
23
27
9
10
21
34
26
28
13
2
27
24
19
18
20
3
35
36
24
25
7
24
14
25
29
23
7
32
25
24
5
4
24
35
35
17
6
16
15
30
24
19
11
14
20
12
30
8
19
24
20
1
22
27
23
27
Y-Slider / R-Pivot
Moving-axis Section
KLV-1502
3-8
NO
Parts_No.
Parts_Name
Q'ty
Remarks
Compati
Revision_No._date
1
KHT-M3123-00
SHAFT Y
1
2
KLV-M31B1-00
PLATE 1,R
1
3
KLV-M31B2-00
GUIDE,X2
1
four-piece set
4
KLV-M31B3-00
PLATE 2,R
1
5
KLV-M31B4-00
PLATE 3,R
1
6
KLV-M31B5-00
HOLDER,Y NUT
1
7
KLV-M31B6-00
SPACER
2
8
KLV-M31B7-00
BRKT.,SENSOR
1
9
KLV-M31B8-00
BRKT.,STOPPER
1
10
KLV-M31B9-00
STOPPER
1
11
KLV-M31BA-00
PLATE 4,R
1
12
KLV-M31BB-00
DOG,X SAFETY
1
13
KLV-M31BC-00
BRKT.,X SAFETY
1
14
KLV-M31BD-00
PLATE,GUIDE
2
15
KLV-M653A-00
SENSOR Y ORG ASSY
1
JCN5 Y ORG
16
KLV-M653B-00
SENS.Y CL-SAFE ASSY
1
JCN4 Y CLSAFE
17
KLV-M653C-00
SENSOR Y Z-SAFE ASSY
1
JCN3 Y Z-SAFE
18
KLV-M653F-00
SENSOR X1 SAFE ASSY
1
JCN2 X1 SAFE
19
$NK-3N
NYLON CLIP
3
20
90990-11J003
SCREW, PAN HEAD W/W
3
21
90990-41J156
COLLAR
2
22
91312-04008
BOLT HEX,SOCKET HEAD
2
23
91312-04012
BOLT HEX,SOCKET HEAD
4
24
91312-04016
BOLT HEX,SOCKET HEAD
28
25
91312-04025
BOLT HEX,SOCKET HEAD
16
26
91312-05010
BOLT HEX,SOCKET HEAD
2
27
91312-05012
BOLT HEX,SOCKET HEAD
5
28
91312-05014
BOLT HEX,SOCKET HEAD
3
29
91312-05016
BOLT HEX,SOCKET HEAD
4
30
91312-06020
BOLT HEX,SOCKET HEAD
10
31
91312-06030
BOLT HEX,SOCKET HEAD
6
32
91312-08020
BOLT HEX,SOCKET HEAD
4
33
92902-04200
WASHER,PLAIN
2
34
92902-05200
WASHER,PLAIN
4
35
97602-03310
SCREW PAN HEAD W/WASHER
8
36
99480-05010
PIN,PARALLEL
4
32
1
26
19
49
43
18
40
18
35
40
21
18
40
44
30
25
14
12
44
27
35
41
43
52
12
30
20
35
11
4
44
28
3
13
50
36
5
16
46
6
2
46
45
5
46
41
29
8
10
7
40
17
15
40
7
24
23
47
22
48
38
9
42
40
40
32
1
26
19
49
43
18
40
18
35
40
21
18
40
44
30
25
14
12
44
27
35
41
43
52
12
30
20
35
11
4
44
28
3
13
50
36
5
16
46
6
2
46
45
5
46
41
29
8
10
7
40
17
15
40
7
24
23
47
22
48
38
9
42
40
40

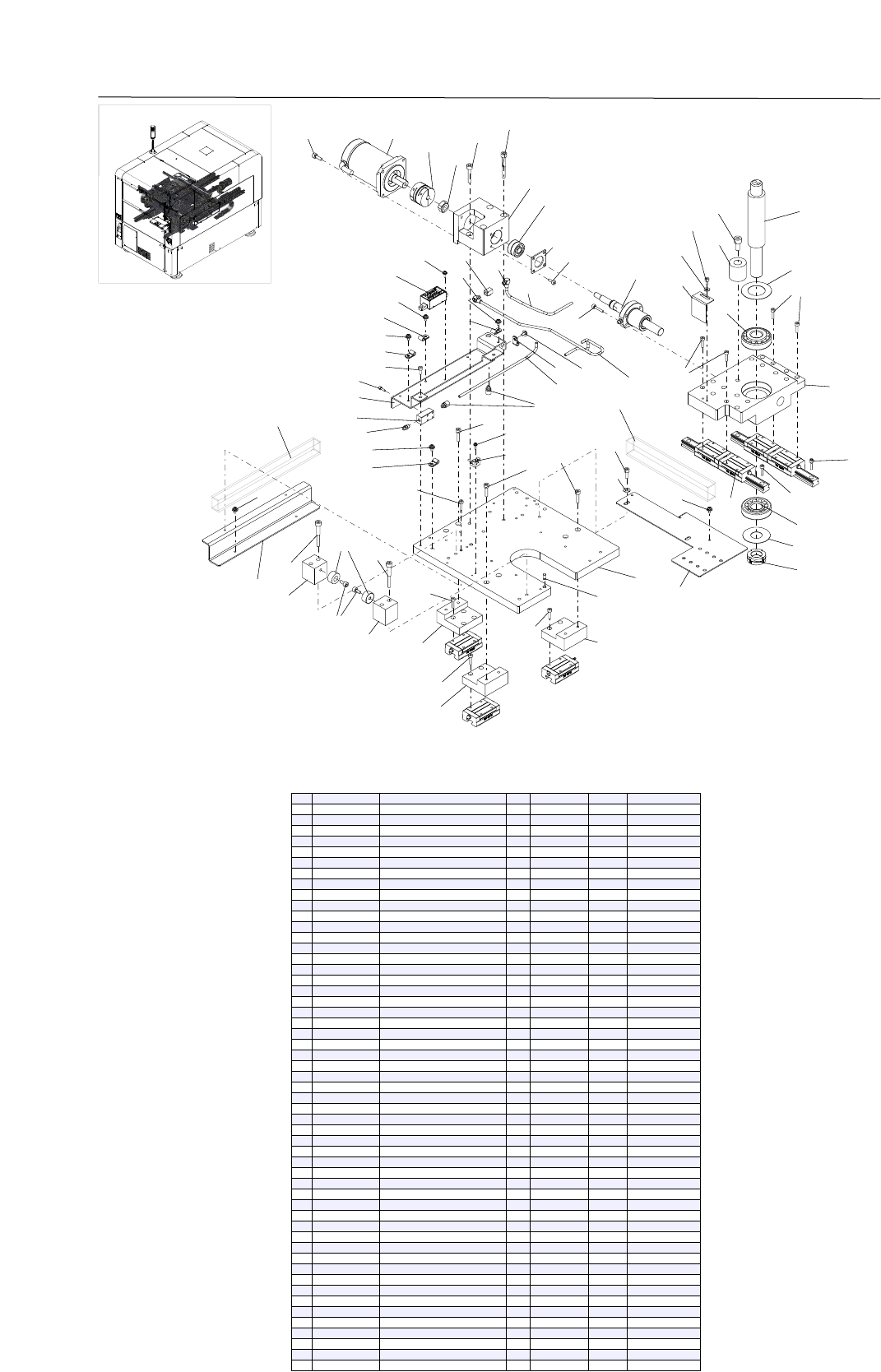

X1-Drive / R-Swing
Moving-axis Section
KLV-1502
3-9
NO
Parts_No.
Parts_Name
Q'ty
Remarks
Compati
Revision_No._date
1
KG2-M9173-00
LOCK NUT
1
2
KGJ-M3159-01
PLATE R, BRG.
1
3
KGY-M3116-00
COUPLING,XY
1
4
KHN-M22AD-00
GREASE NIPPLE
1
5
KHT-M3126-00
STOPPER X
2
6
KHT-M3127-00
DAMPER,X
2
7
KHT-M3136-00
BEARING
2
8
KHT-M3137-00
LOCK NUT
1
9
KHT-M3138-00
SHAFT Z1
1
10
KHT-M3197-00
COVER BRG
1
11
KHY-M266C-00
BLOCK,JOINT
1
12
KHY-M266D-00
JOINT
2
13
KKX-M6555-00
JUNCTION BOX V
1
14
KLV-M31C1-00
PLATE,X
1
15
KLV-M31C2-00
STAY,Z
1
16
KLV-M31C3-00
HOLDER,MOTOR X
1
17
KLV-M31C4-00
GUIDE,X
1
two-piece set
18
KLV-M31C6-00
BLOCK,Y
3
19
KLV-M31C7-00
BRKT.,DUCT
1
20
KLV-M31C8-00
BRKT.2,HNS.
1
21
KLV-M31CA-00
PLATE,DUCT
1
22
KLV-M31CB-00
DOG,X ORG.
1
23
KLV-M31CD-00
STOPPER,Z
1
24
KLV-M31CE-00
COVER,BRG.
1
25
KLV-M31CF-00
TUBE,GREASE 1
1
26
KLV-M31CG-00
TUBE,GREASE 2
1
27
KLV-M31CH-00
TUBE,GREASE 3
1
28
KLV-M653D-00
SENSOR X1 ORG ASSY
1
JCN1 X1 ORG
29
KLV-M9F00-00
BALL SCREW,X
1
30
$NK-3N
NYLON CLIP
12
31
90990-26J002
BEARING
1
32
90K00-023020
DUCT
1
33
90K00-0AA025
DUCT
1
34
90KC2-012D14
AC SERVO MOTOR
1
35
90990-11J003
SCREW, PAN HEAD W/W
16
36
90990-11J007
SCREW, PAN HEAD W/W
2
37
91312-03010
BOLT HEX,SOCKET HEAD
2
38
91312-04008
BOLT HEX,SOCKET HEAD
2
39
91312-04010
BOLT HEX,SOCKET HEAD
6
40
91312-04016
BOLT HEX,SOCKET HEAD
36
41
91312-04020
BOLT HEX,SOCKET HEAD
6
42
91312-05010
BOLT HEX,SOCKET HEAD
2
43
91312-05014
BOLT HEX,SOCKET HEAD
6
44
91312-05020
BOLT HEX,SOCKET HEAD
6
45
91312-06030
BOLT HEX,SOCKET HEAD
1
46
91312-06045
BOLT HEX,SOCKET HEAD
7
47
91312-08016
BOLT HEX,SOCKET HEAD
1
48
92902-04200
WASHER,PLAIN
2
49
92902-05200
WASHER,PLAIN
2
50
97602-03310
SCREW PAN HEAD W/WASHER
2
51
99480-05010
PIN,PARALLEL
2
52
$TF
JOINT
1
53
$BF4U
JOINT
2
