2.3.2 Cancellation of Alternate Mode for Priority Unit
When the "Start Protection ON" status is detected after the priority unit
has become available in the automatic operation ("ALTERNATE FDR.
AXIS/CARRIAGE" mode) and has been set ready for alternation, a warn-
ing message is displayed in the "Machine Information" window (Fig. 6)
and the machine keeps on its automatic operation without alternating
the current unit with the priority one.
This warning message is displayed every time the above-described case
is encountered in the "Start Protection ON" status.

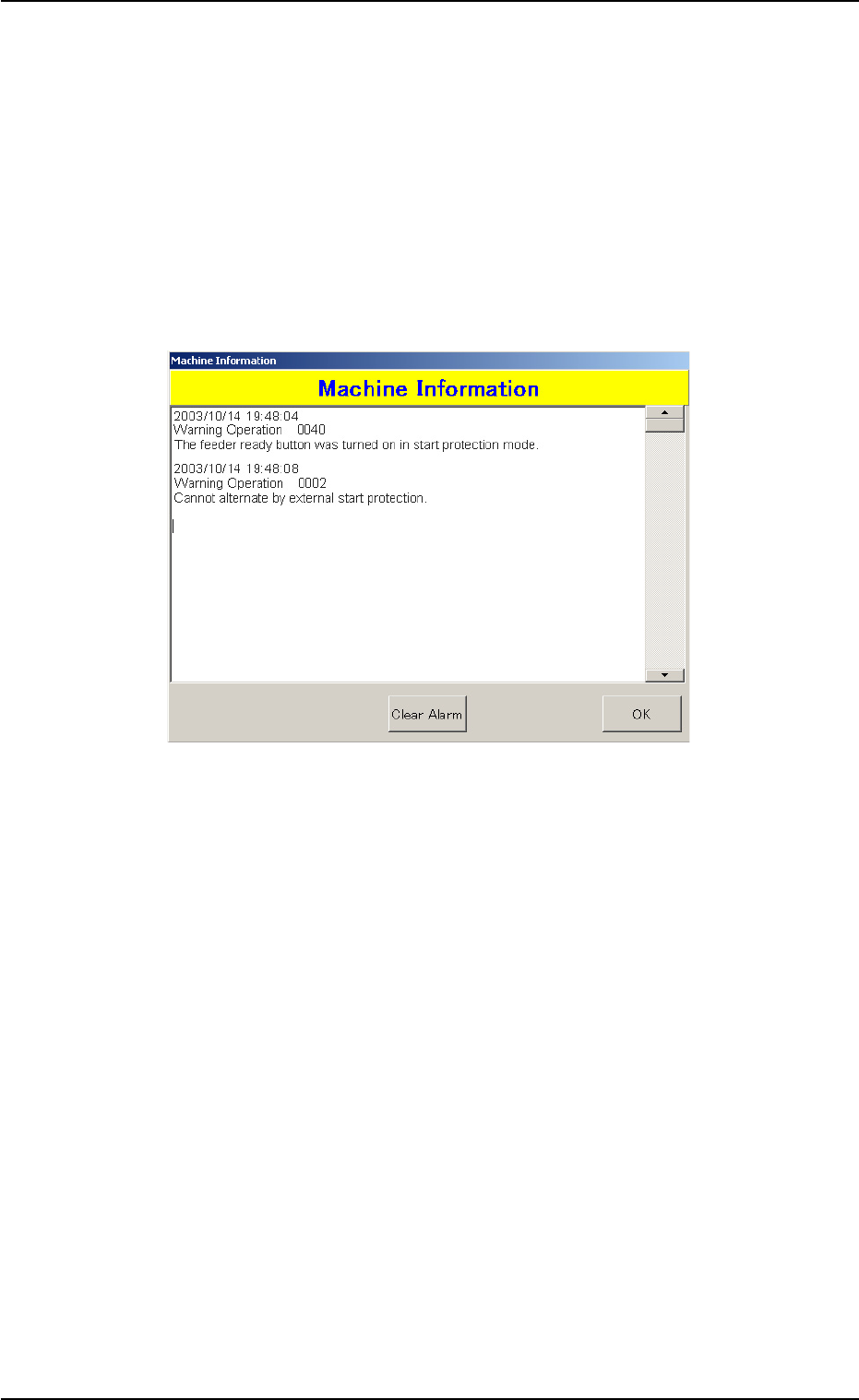

Fig. 6
0409-001
2.3 Warning Display in Continuous Operation
9 AIZ01EGP

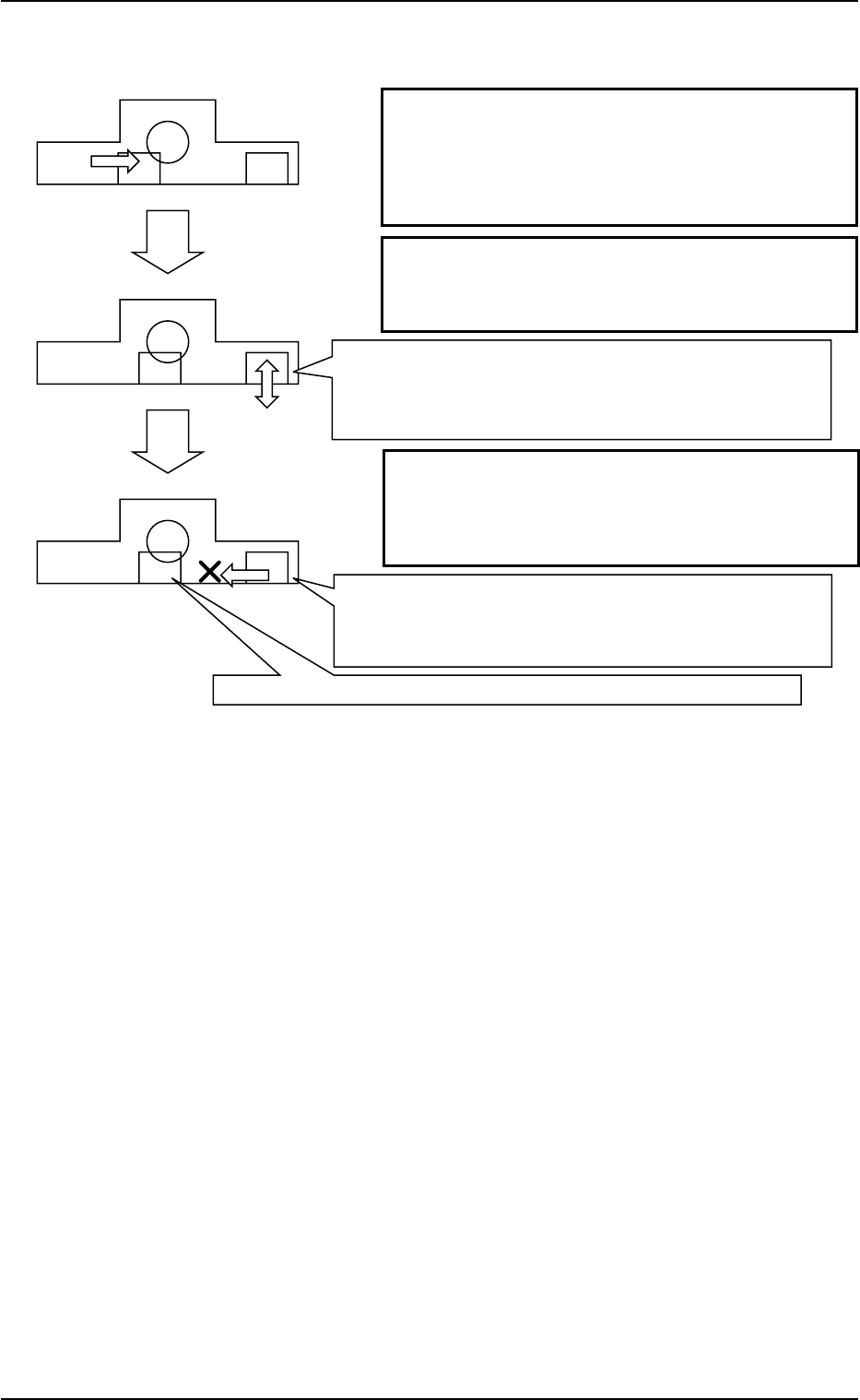

Example of Warning Display Timing
Fig. 7
(Status 1)
(Status 2)
(Status 3)
The automatic operation starts (in the middle of compo-
nent replenishment for F1 and F2, etc.)
when the machine is in the "Start Protection OFF" status
and the [READY] buttons on Priority Axes F1 and F2 are
turned OFF.
Automatic Operation with Non-Priority Axes F3 and F4
The "Machine Information" window (Fig. 6) opens at the
timing of returning to the priority axes after the end of
automatic operation for a piece of P.C.B. The machine
keeps on its automatic operation, using F3 and F4
without returning to the priority axes.
Because the machine is in the "Start Protection ON" status
when the [READY] buttons are pressed for Priority Axes
F1 and F2, the "Machine Information" window (Fig. 3)
opens.
While the machine is in the "Start Protection ON" status,
the "Machine Information" window (Fig. 6) opens every
time the automatic operation for a piece of P.C.B. is
completed.
Continuation of Automatic Operation with Feeder Carriages #3 and #4
"Start Protection ON" Status in Automatic Operation
The [READY] buttons for Priority Axes F1 and F2 must
be pressed. (Completion of Component Replenishment,
etc.)
0409-001
2.3 Warning Display in Continuous Operation
10 AIZ01EGP
3. Status Indication (Indication on Screen)
The "AUTO OPN" window can be used to check the status of the start
protect signal that will be controlled by the external host computer.
The indication is as follows:
Operation Start: ON --- Protected
Operation Start: OFF --- Unprotected
Fig. 8
The "Input Check" tab sheet can also be used to check the sta-
tus.
Fig. 9
Note
0409-001
3. Status Indication (Indication on Screen)
