KMC-1709 Rev . :It had a change without the compatibility . Please be careful at the time of the parts ordering. Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。 No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Pa…
KMC-1709
33
37
37
35
10
34
33
32
36
40
39
32
33
40
33
36
10
27
6
6
30
14
14
6
27
30
6
30
2
13
23
6
1
11
30
7
38
7
13
5
12
6
22
12
8
29
21
8
6
8
8
28
12
12
8
2
2
8
10
8
10
8
18
10
15
15
31
9
25
15
3
17
26
14
15
16
10
15
16
15
10
10
14
17
26
18
14
14
14
12
24
4
8
19
4
10
12
8
20
14
10
8
3
25
9
31
33
37
37
35
10
34
33
32
36
40
39
32
33
40
33
36
10
27
6
6
30
14
14
6
27
30
6
30
2
13
23
6
1
11
30
7
38
7
13
5
12
6
22
12
8
29
21
8
6
8
8
28
12
12
8
2
2
8
10
8
10
8
18
10
15
15
31
9
25
15
3
17
26
14
15
16
10
15
16
15
10
10
14
17
26
18
14
14
14
12
24
4
8
19
4
10
12
8
20
14
10
8
3
25
9
31
3
4

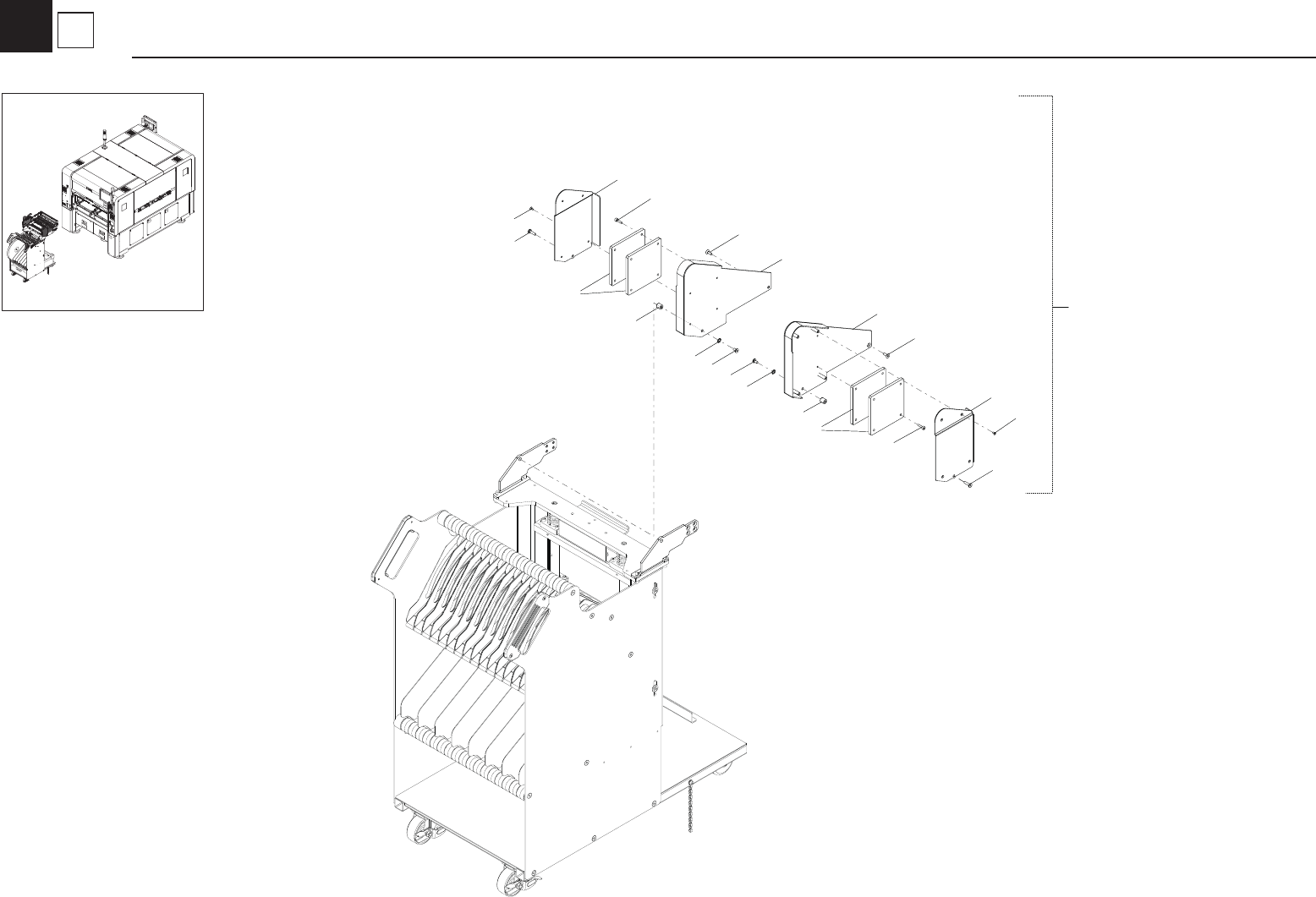

FES32 Carriage (Base / Cover)
Feeder Holder
KMC-1709
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 90172-00J040 WASHER, EXTL, TOOTHED 1 39 KM0-M3741-00 CASTER 63 2
The same as 27
/
2 90990-28J186 WASHER,PLAIN 8 40 92902-06200 WASHER,PLAIN 16 SMEMA Type /
3 90990-41J178 COLLAR 4 41
4 91312-04005 BOLT HEX,SOCKET HEAD 4 42
5 91312-04010 BOLT HEX,SOCKET HEAD 1 43
6 91312-06012 BOLT HEX,SOCKET HEAD 20 44
7 92902-04200 WASHER,PLAIN 2 45
8 92B12-06012
SCREW, HEX. SOCKET COUNTERSUNK HEAD CAP
18 46
9 92902-04600 WASHER,PLAIN 4 47
10 KHW-M1385-00 SPACER 30 /
48
11 KLW-M373C-10 CHAIN 1 /
49
12 90990-01J153 BOLT,HEX.SOCKET HEAD 10 /
50
13 KHY-M374C-00 CASTER 2 /
51
14 KHY-M3R15-00 ROLLER 67 /
52
15 KLW-M372T-00 SHAFT,ROLLER 6 /
53
16 KHY-M3R23-00 COLLAR,PARTITION 14 /
54
17 KHY-M3S15-00 ROLLER 2 2 /
55
18 KHY-M3R14-11 WASHER 2 /
56
19 KLW-M3720-20 SIDE COVER ASSY. 1 /
57
20 KLW-M372A-20 COVER,SIDE R 1
/
58
21 KLW-M372B-20 COVER,SIDE L 1
/
59
22 KLW-M372C-01 BRKT.,ADJUST BOLT 1 /
60
23 KLW-M372D-01 FRAME,BASE 1 /
61
24 KLW-M372E-01 COVER,UNDER 1 /
62
25 KLW-M372F-00 PLATE,HANDLE 2 /
63
26 KLF-M3R10-01 REEL HOLDER 16 /
64
27 KM0-M3741-00 CASTER 63 2 /
65
28 KV8-M3734-10 BOLT 1 /
66
29 KV8-M3735-01 BRACKET 1 /
67
30 92902-06200 WASHER,PLAIN 16
68
31 98907-04006 SCREW BINDING HEAD 4
69
32 91312-06016 BOLT HEX,SOCKET HEAD 16 SMEMA Type
70
33 91312-06030 BOLT HEX,SOCKET HEAD 32 SMEMA Type
71
34 KHY-M374C-00 CASTER 2
The same as 13
/
72
35 KLW-M3722-00 BASE SUB ASSY. 1 /
73
36 KLW-M375A-00 SMEMA BLOCK 1,FES 4 SMEMA Type /
74
37 KLW-M375B-00 SMEMA BLOCK 2,FES 4
SMEMA Type /
75
38 KLW-M375C-00 CHAIN 1 SMEMA Type /
76
3
4
FES32 Carriage (Base / Cover)
Feeder Holder
