KMC-1709 1 2 3 4 5 6 7 8 9 10 1 1 12 13 14 15 KHN-M8860-00 KV8-M8883-A0 KV7-M8880-20 KGA-M3801-00 KGA-M3803-00 KV8-M8881-A0 KU4-M8590-00 K48-M3856-00 KV8-M8870-00 K48-M3852-01 K48-M3857-00 K48-M3854-00 KV7-M3823-00 KV7-M…

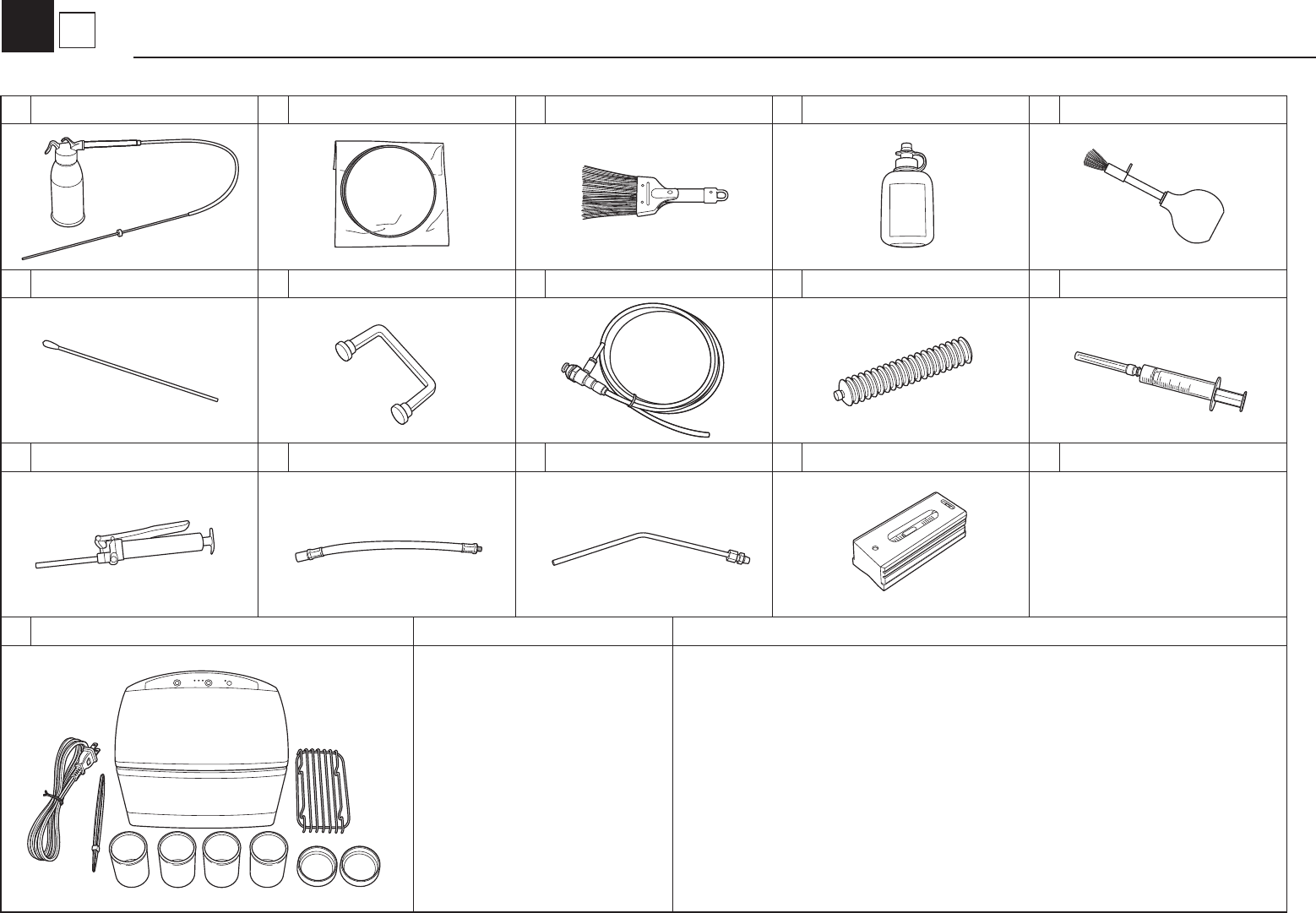

KMC-1709
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 90990-08J016 SCREW, PAN HEAD 20 E
39
2 KG7-M7137-A0 LEAF SPRING 20 E
40
3 KLW-M714W-00 PLATE,SPRING 20 E
41
4 90990-01J057 BOLT HEX,SOCKET HEAD 10 E
42
5 KV7-M8171-00 PLATE,SPRING 20 E
43
6 KLW-M715B-00 GASKET 20 E
44
7 KLW-M8527-00 FILTER 20 E
45
8 46
9 47
10 48
11 49
12 50
13 51
14 52
15 53
16 54
17 55
18 56
19 57
20 58
21 59
22 60
23 61
24 62
25 63
26 64
27 65
28 66
29 67
30 68
31 69
32 70
33 71
34 72
35 73
36 74
37 75
38 76
12
1
Head accessories
Head accessories
KMC-1709
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Uses No. Part No. Part Name Uses
1
KHN-M8860-00 CLEANING KIT
39
2
KV8-M8883-A0 NEEDLE ASSY
40
3
KV7-M8880-20 BRUSH, FEEDER
41
4
KGA-M3801-00 CLEANER, LENS
42
5
KGA-M3803-00 BLOWER
43
6
KGA-M3802-00 SWAB
44
7
KV8-M8881-A0 NEEDLE CLEANER ASSY
45
8
KU4-M8590-00 AIR BLOW TOOL
46
9
K48-M3856-00 GREASE PACK
47
10
KV8-M8870-00 SYRYNGE OIL
48
11
K48-M3852-01 GREASE GUN
for Cartlidge(NSK) 49
12
K48-M3857-00 GREASE NOZZLE
50
13
K48-M3854-00 GREASE NOZZLE
51
14
KV7-M3823-00 FLAT LEVEL 0.1mm/m
Adjust the machine in the horizontal position
52
15
KV7-M8890-00 ULTRAS. CLEANER SET
For nozzle cleaning 53
16 54
17 55
18 56
19 57
20 58
21 59
22 60
23 61
24 62
25 63
26 64
27 65
28 66
29 67
30 68
31 69
32 70
33 71
34 72
35 73
36 74
37 75
38 76
13
1
Tools
Tools
