KMC-1709 Rev . :It had a change without the compatibility . Please be careful at the time of the parts ordering. Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。 No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Pa…
KMC-1709
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 91312-03008 BOLT HEX,SOCKET HEAD 28 39
2 91312-03030 BOLT HEX,SOCKET HEAD 12 40
3 92012-04012 BOLT, BOTTON HEAD 4 41
4 KHY-M9621-A0 BASE,NOZZLE D ASSY 10 /
Í
42
5 KHY-M9630-00 HOOK,BEARING 2 /
Í
43
6 KKE-M9608-00 PIN,SLIDE 8 /
Í
44
7 KLW-M96HD-A0 SPACER3 ASSY. 14 /
Í
45
8 KLW-M96H1-A0 HM NOZZLE HLD. ASSY. 1
HM CLAMP HLD.
/
Í
46
9 KLW-M96H2-00 PLATE,CLAMP HM 1
HM CLAMP HLD.
/
Í
47
10 KLW-M96H4-A0 FM NOZZLE HLD. ASSY. 1
FM CLAMP HLD.
/
Í
48
11 KLW-M96H5-00 PLATE,CLAMP FM 1
FM CLAMP HLD.
/
Í
49
12 KLW-M96H7-00 MIRROR,CENTER 2 /
Í
50
13 KLW-M96H8-00 MIRROR,SIDE 4 /
Í
51
14 KLW-M96H9-00 SPACER 2 /
Í
52
15 KLW-M96HA-00 SHEET,CLAMP GUIDE 4 /
Í
53
16 98902-03008 SCREW BINDING HEAD 16 54
17 55
18 56
19 57
20 58
21 59
22 60
23 61
24 62
25 63
26 64
27 65
28 66
29 67
30 68
31 69
32 70
33 71
34 72
35 73
36 74
37 75
38 76
6
3

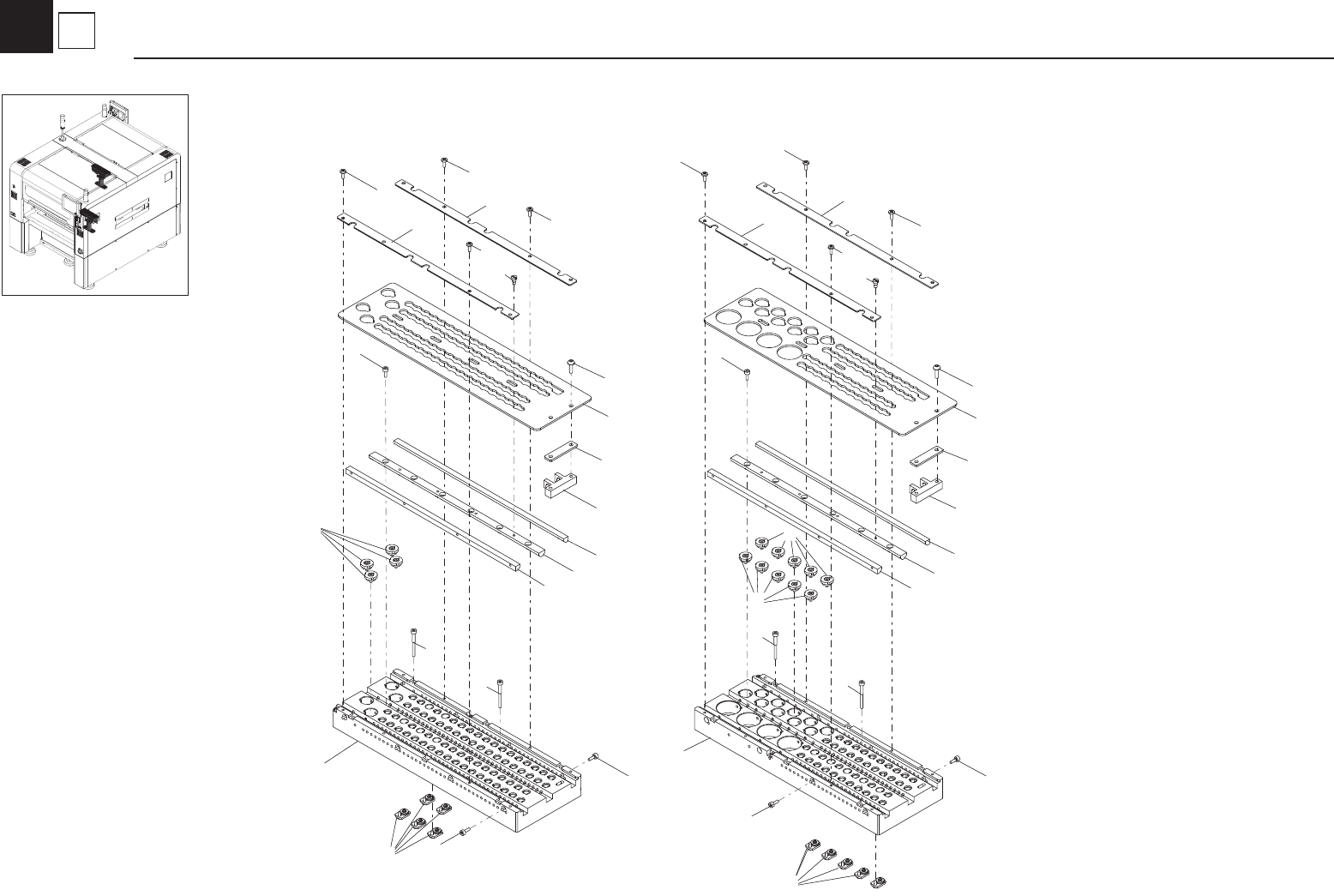

Nozzle Changer (Clamp Hld. Assy.)
