KMC-1709
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 KHJ-MC10S-01 PIN,LOCATE 1 2 /
Í
39
2 KHJ-MC147-02 SPRING,TAPE GUIDE F 2 /
Í
40
3 KLF-M3741-00 PLATE,STOPPER 2 /
Í
41
4 KLF-M3742-00
WASHER
4 /
Í
42
5 KLF-M3747-00 PLUNGER 1 A
43
6 KLF-M3749-00 WASHER 2 /
Í
44
7 KLF-M374D-00 BUSH,FLANGE 2 /
Í
45
8 KLF-M374F-00 STOPPER,ARM 2 /
Í
46
9 KLF-M374G-00 BOLT,SHOULDER 2 /
Í
47
10 KLF-M374J-00 GAS DAMPER 1 A
48
11 KLF-M374K-00 PLUNGER 1 A
49
12 KLF-M374L-00 BRKT.,SENSOR 2 /
Í
50
13 KLF-M374N-00 DOG,SENSOR R 1 /
51
14 KLF-M374N-50 DOG,SENSOR L 1 /
52
15 KLF-M374X-00 PIN,HINGE 2 /
Í
53
16 KLW-M373G-01 ARM,UPPER GUIDE R 1 /
Í
54
17 KLW-M373H-01 ARM,UPPER GUIDE L 1 /
Í
55
18 KLW-M373J-01 BASE,ARM R 1 /
Í
56
19 KLW-M373K-01 BASE,ARM L 1 /
Í
57
20 KLW-M374A-00 BASE,CLAMP 2 /
Í
58
21 KLW-M374B-00 PLATE,CLAMP 2 /
Í
59
22 KLW-M374C-00 LEVER,CLAMP 2 /
Í
60
23 KLW-M653Y-00 SEN.FES COVER ASSY. 2 B
Í
61
24 90990-01J071 BOLT HEX,SOCKET HEAD 4 62
25 90990-01J074 BOLT HEX,SOCKET HEAD 4 63
26 90990-28J193 WASHER,PLAIN 4 64
27 91312-03004 BOLT HEX,SOCKET HEAD 4 65
28 91312-03006 BOLT HEX,SOCKET HEAD 4 66
29 91312-04005 BOLT HEX,SOCKET HEAD 4 67
30 91312-04010 BOLT HEX,SOCKET HEAD 4 68
31 92902-03200 WASHER,PLAIN 4 69
32 92902-03600 WASHER,PLAIN 4 70
33 92902-05200 WASHER,PLAIN 8 71
34 92A08-03305
SCREW SET
2 72
35 95302-06600 NUT HEXAGON 2 73
36 97602-03310 SCREW PAN HEAD W/ 2 74
37 99002-07600
CIRCLIP
2 75
38 99480-04014 PIN,PARALLEL 2 76
3
7
FES32 Carriage (ZSF Cover ARM)
Feeder Holder
KMC-1709
8
28
6
22
29
12
10
9
22
14
30
23
9
12
24,25
27
5
9
28
11
8
9
5
13
15
18
2
26
26
17
2
7
16
15
4
19
2
7
2
4
1
4
21
3
20
6
3
8
28
6
22
29
12
10
9
22
14
30
23
9
12
24,25
27
5
9
28
11
8
9
5
13
15
18
2
26
26
17
2
7
16
15
4
19
2
7
2
4
1
4
21
3
20
6
3
A
B
A
B
3
8

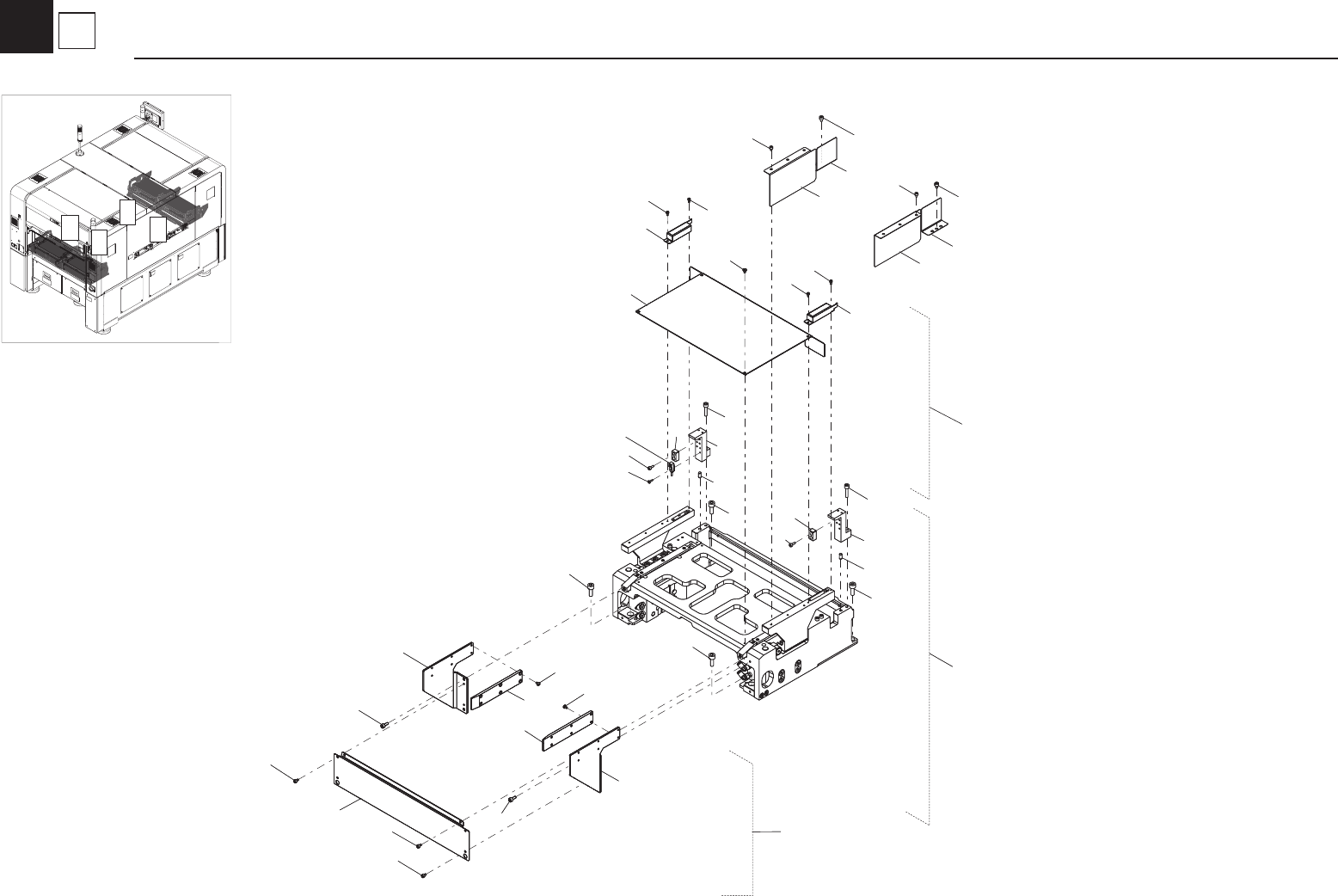

FES32 Clamp Unit
Feeder Holder
KMC-1709
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 90990-01J065 BOLT HEX,SOCKET HEAD 16 39
2 91312-03006 BOLT HEX,SOCKET HEAD 16 40
3 91312-04005 BOLT HEX,SOCKET HEAD 12 41
4 91312-04006 BOLT HEX,SOCKET HEAD 24 42
5 91312-04010 BOLT HEX,SOCKET HEAD 32 43
6 91312-05006 BOLT HEX,SOCKET HEAD 8 44
7 91312-05012 BOLT HEX,SOCKET HEAD 16 45
8 91312-06025 BOLT HEX,SOCKET HEAD 16 46
9 91312-08020 BOLT HEX,SOCKET HEAD 32 47
10 KLW-M3J0C-00 BLOCK,STOPPER L 8 /
Í
48
11 KLW-M3J0D-00 BLOCK,STOPPER R 8 /
Í
49
12 KLW-M3J0F-00 STOPPER 16 /
Í
50
13 KLW-M3J11-00 PLATE,GUIDE L 4 /
Í
51
14 KLW-M3J12-00 PLATE,GUIDE R 4 /
Í
52
15 KLW-M3J13-00 GUIDE,FES 8 A
53
16 KLW-M3J14-00 COVER,CLAMP 4 /
Í
54
17 KLW-M3J1B-01 COVER,UPPER 4 /
Í
55
18 KLW-M3J1C-00 COVER,CONNECTOR L 4 /
Í
56
19 KLW-M3J1D-00 COVER,CONNECTOR R 4 /
Í
57
20 KLW-M3J1G-00 COVER,CLAMP L
2 B /
Í
58
21 KLW-M3J1H-00 COVER,CLAMP R 2 A /
Í
59
22 KLW-M3J1J-00 COVER,CLAMP FRONT 4 /
Í
60
23 KMC-M3JA0-00 C/U MAIN ASSY. 4
24,45 does net enter
/
Í
61
24 KLW-M653T-50 SEN.F1 CART FWD ASSY 2 A B
Í
62
25 KLW-M653T-60 SEN.F2 CART FWD ASSY 2 B B
Í
63
26 92012-04006 BOLT, BOTTON HEAD 48 64
27 98902-03010 SCREW BINDING HEAD 8 65
28 99480-06014 PIN,PARALLEL 16 L=14mm 66
29 KLW-M3JA1-00 FES GUIDE ASSY. 4 /
Í
67
30 KLW-M3JA2-00 C/U COVER ASSY. 4 /
Í
68
31 69
32 70
33 71
34 72
35 73
36 74
37 75
38 76
3
8
FES32 Clamp Unit
Feeder Holder
