Configuration „Option JTF -S / JTF-M SIPLACE SX1/ 2 and X- Serie S“

Configuration „Option JTF-S / JTF-M

SIPLACE SX1/2 and X-Serie S“

01.08.2014 Page 2

General

The option „JTF-S“ (JTF2) and “JTF-M” (JTF3) can be used on the SIPLACE SX1, SX2

and SIPLACE X-Series S machine.

The differences between this feeder types are, the JTF-S can feed only one type of

component up to 30 Jedec trays and the JTF-M .support the trays in magazine, so

different kind of components are possible. Both feeder types need a special manual

tables and an adapter on this table.

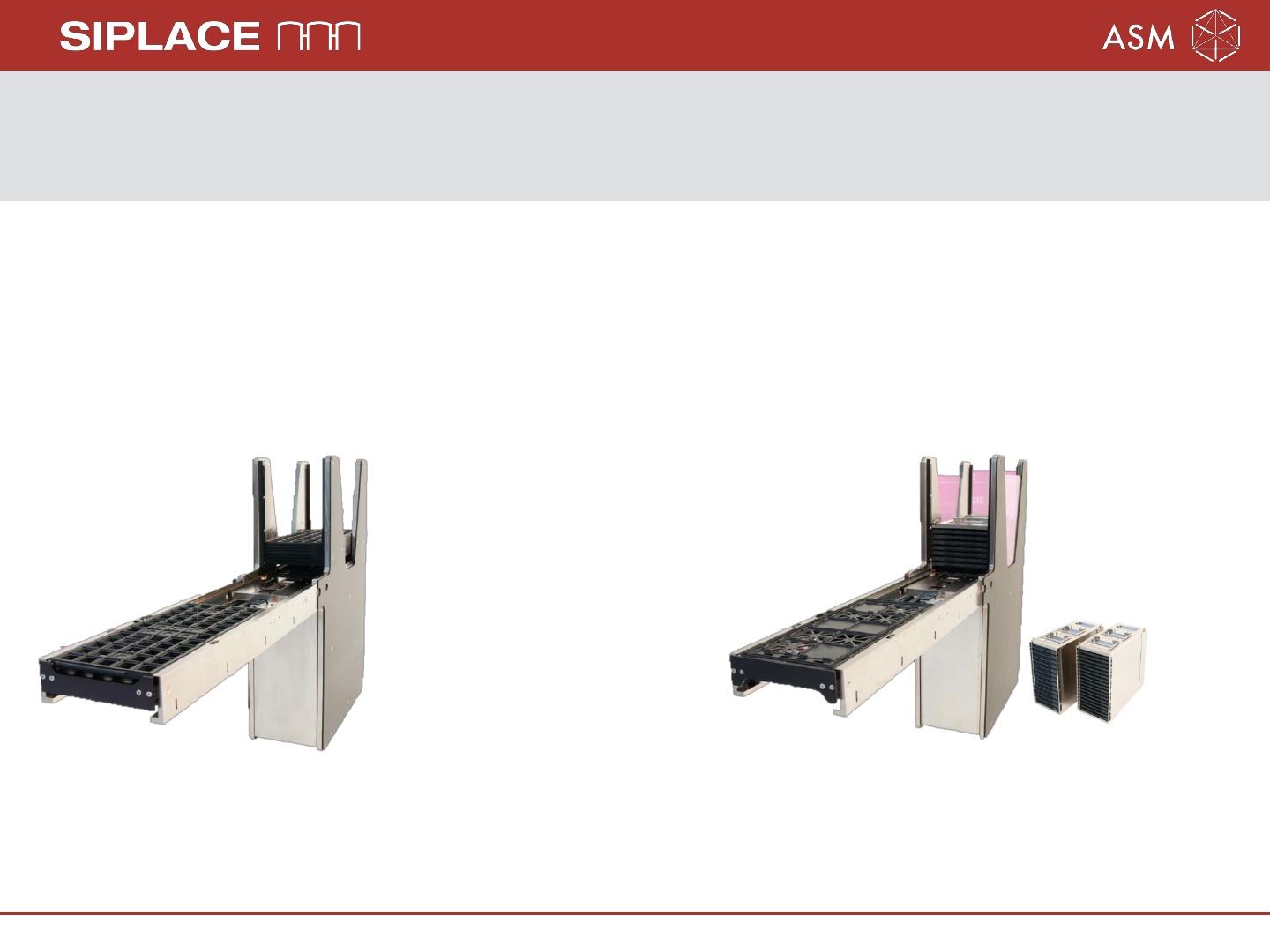

JTF-S

Description in SIPLACE Pro: JEDEC Tray Stack Feeder

Multiple JEDEC Tray Feeder 14 (for thick JEDEC trays)

Multiple JEDEC Tray Feeder 18 (for thin JEDEC trays)

JTF-M

SIPLACE

01.08.2014 Page 3

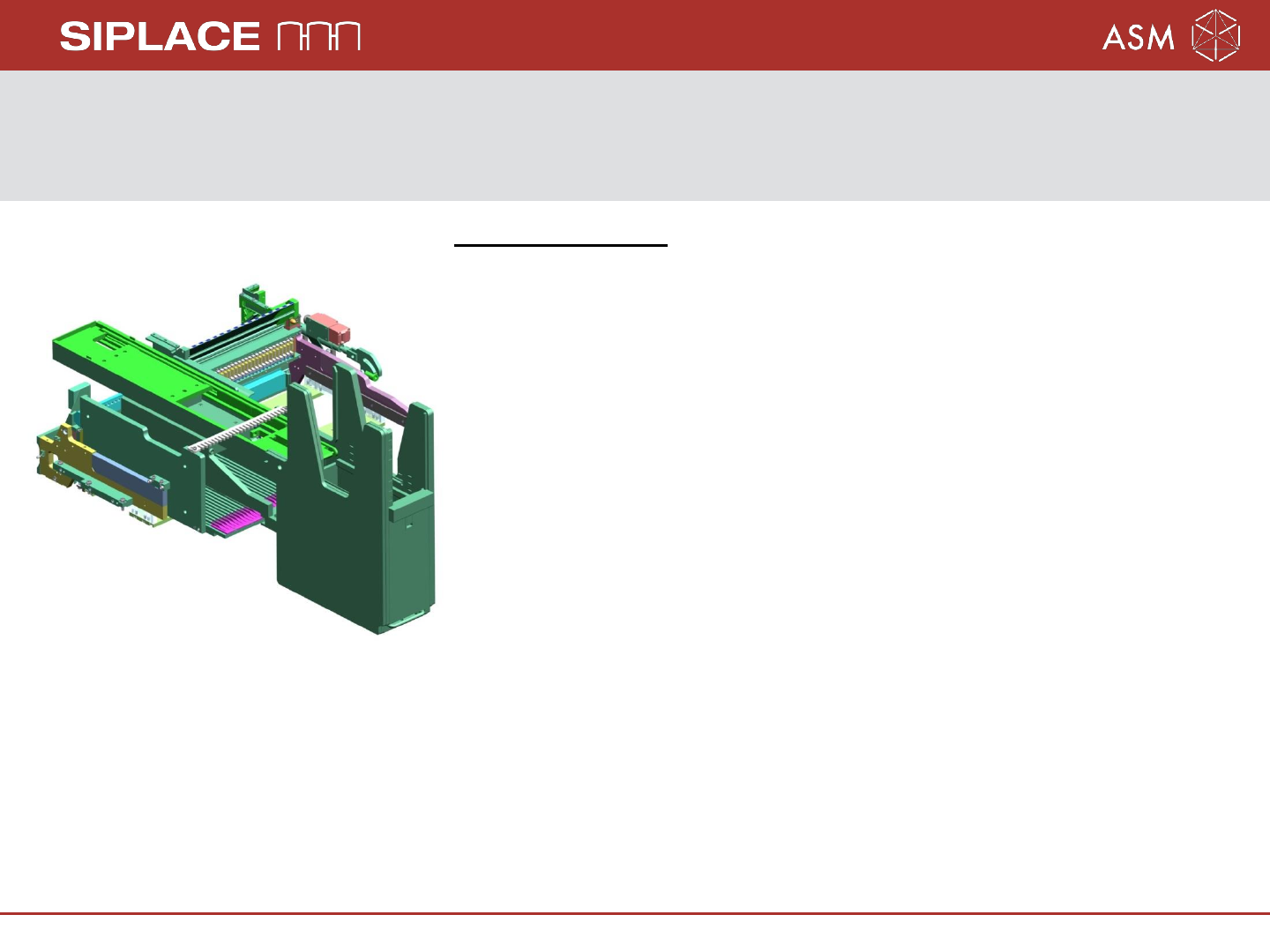

JTF-S and JTF-M on SX1/2

Sales Numbers:

00166670-xx JTF-S with Adapter

00166671-xx JTF-M with Adapter

00166673-xx Magazine 14 Trays JTF-M

00166672-xx Magazine 18 Trays JTF-M

00166662-xx Barcodesticker JTF Cassette 14

00166663-xx Barcodesticker JTF Cassette 18

00166664-xx Barcode ruler sticker for JTF

Retrofit kit for SX1/2:

00166650-01 Table for Jedec Tray Feeder SX1/SX2

include this no.03106350-xx Installation kit JTF3 for SX1/2

Additional Parts:

03067206-xx COT insert 30

03073312-xx Waste chute SX1/2 COT30

03092444-xx COT SX1/2, 30 Slots

Optionally: 00519902-xx Stationary camera Typ33 SX1/2

00519918-xx Stationary camera Typ25 SX1/2

Note: The option JTF-M include 5 pieces 03110222-xx

Tray carrier for JTF-M.
