01.08.2014 Page 5
JTF-S or JTF-M on X-Serie S machine
General:
- The JTF-S or JTF-M can be install on location 2 or 3 or on both locations.
- Setup of the JTF-S and JTF-M only in PA 2.
- For better access to PA 2 a distance of 500 mm between X-Series S and next machine is
recommended.
- The retrofit kit of the Jedec feeder include the retrofit kit of the Service window (00519975)
- Machine with CPP_H or Twin Head support the Jedec feeder.
Position adapter for JTF-S or JTF-M
X4i S Location 2 adapter on track 27
X4i S Location 3 adapter on track 1
X4,3,2 S Location 2 adapter on track 26
X4 S Location 3 adapter on track 1
Note:
For the SIPLACE X3 S / X2 S the JTF-S or JTF-M can be install on Location 2 only!
SIPLACE
01.08.2014 Page 6
JTF-S or JTF-M on X-Serie S machine
Sales Numbers:
00166670-xx JTF-S
00166671-xx JTF-M
00166673-xx Magazine 14 Trays JTF-M
00166672-xx Magazine 18 Trays JTF-M
00166662-xx Barcodesticker JTF Cassette 14
00166663-xx Barcodesticker JTF Cassette 18
00166664-xx Barcode ruler sticker for JTF
Retrofitkit:
00166651-xx (03107462-) JTF SP2 X-Series S Basis-BG
00166652-xx (03107463-) JTF SP3 X-Series S Basis -BG
Additionally: 03062463- NC basis assembly CPx short
03066107- Nozzle magazine Type 20xx
03065782- Nozzle magazine Type 28xx
00519845- Nozzle changer TH SX-serie
03104767- Holder Pinmagazine Q10 kpl.SPS M
Option: Stationary camera Type 33
Stationary camera Type 25
Output Extension
Note: The option JTF-M include 5 pieces 03110222-xx
Tray carrier for JTF-M.

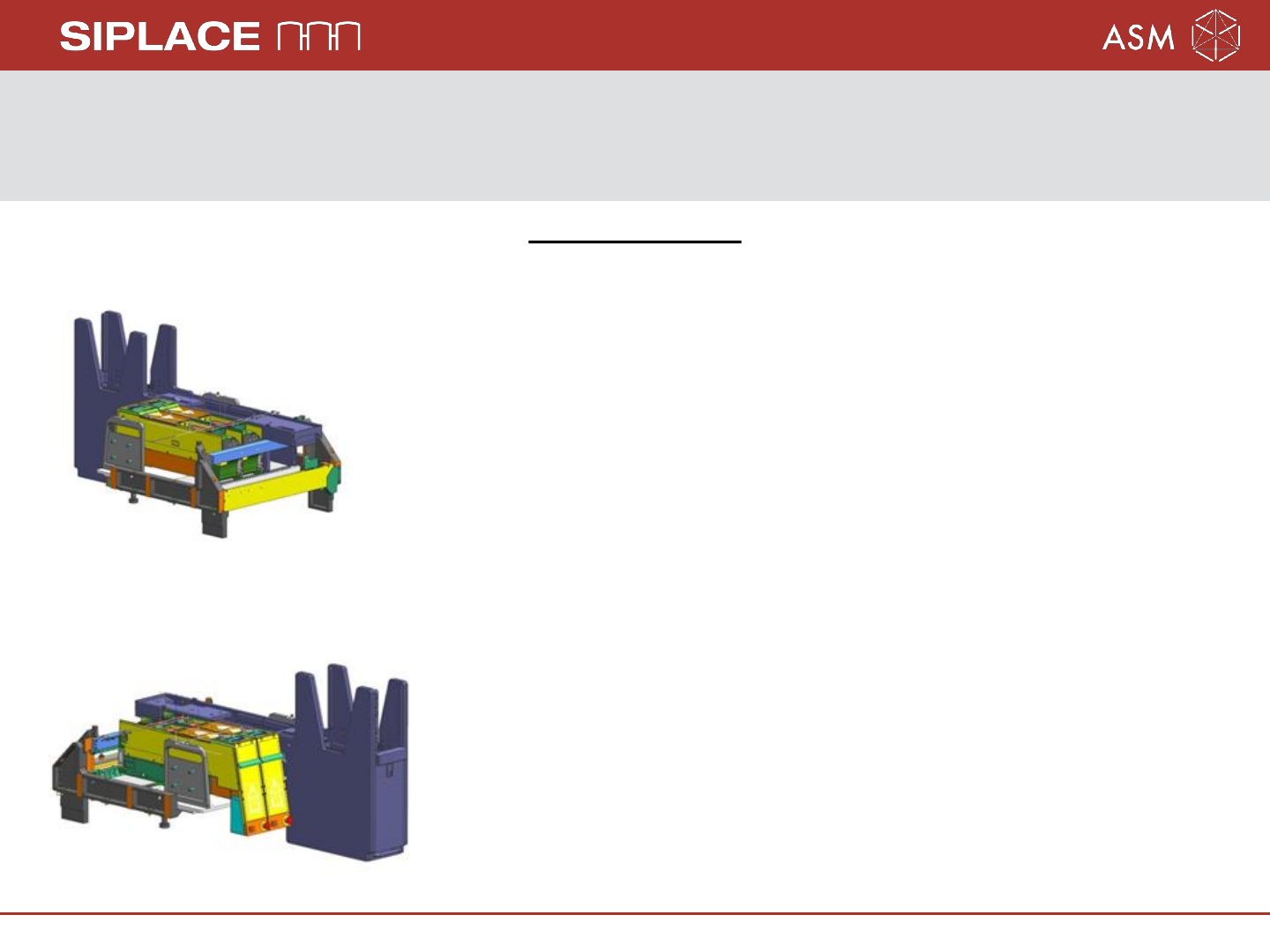

X-Serie S manual Table Location 3
Sales number: 00166652-xx
X-Serie S manual Table location 2
Sales number:00166651-xx
SIPLACE
01.08.2014 Page 7

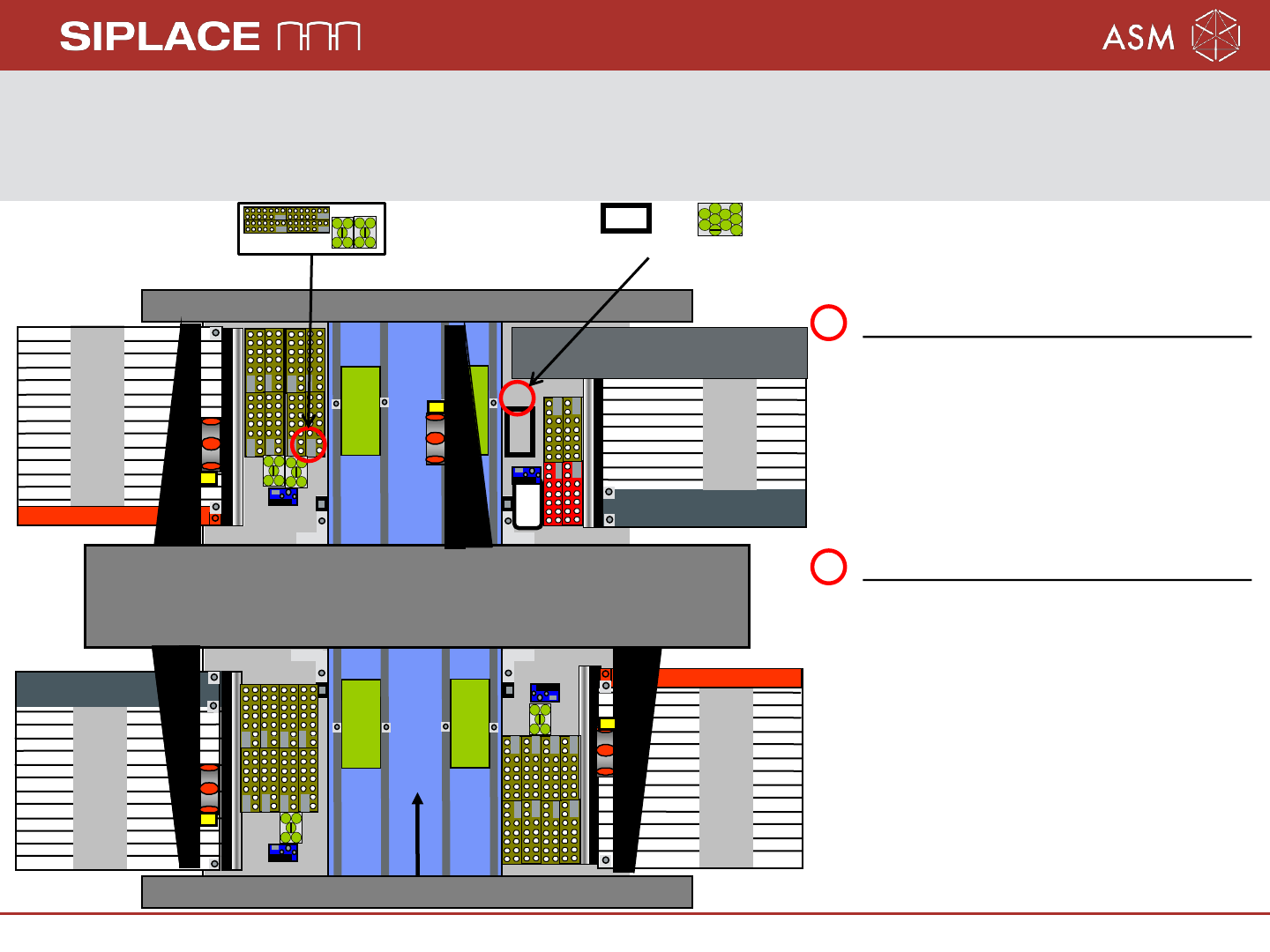

Configuration 1 on X4i S
Location 3
Location 2
Siplace X4i S
Gantry 3
Location 4
Gantry 4
Location 1
Gantry 1
SST 33
Gantry 2
JTF-S or JTF-M
Location 2: (table outer position)
Stat. camera or Q10magazine
Only two NC-magazine!
Configuration on the station as
Q10 MTF
Reject
Bin
1
1
Location 3: (table outer position)
Second row of NC w/o two W5
magazine
No stationary camera!
2
SST 33
or
2
