General
The option „JTF-S“ (JTF2) and “JTF-M” (JTF3) can be used on the SIPLACE SX1, SX2
and SIPLACE X-Series S machine.
The differences between this feeder types are, the JTF-S can feed only one type of
component up to 30 Jedec trays and the JTF-M .support the trays in magazine, so
different kind of components are possible. Both feeder types need a special manual
tables and an adapter on this table.
JTF-S
Description in SIPLACE Pro: JEDEC Tray Stack Feeder
Multiple JEDEC Tray Feeder 14 (for thick JEDEC trays)
Multiple JEDEC Tray Feeder 18 (for thin JEDEC trays)
JTF-M
SIPLACE
01.08.2014 Page 3
JTF-S and JTF-M on SX1/2
Sales Numbers:
00166670-xx JTF-S with Adapter
00166671-xx JTF-M with Adapter
00166673-xx Magazine 14 Trays JTF-M
00166672-xx Magazine 18 Trays JTF-M
00166662-xx Barcodesticker JTF Cassette 14
00166663-xx Barcodesticker JTF Cassette 18
00166664-xx Barcode ruler sticker for JTF
Retrofit kit for SX1/2:
00166650-01 Table for Jedec Tray Feeder SX1/SX2
include this no.03106350-xx Installation kit JTF3 for SX1/2
Additional Parts:
03067206-xx COT insert 30
03073312-xx Waste chute SX1/2 COT30
03092444-xx COT SX1/2, 30 Slots
Optionally: 00519902-xx Stationary camera Typ33 SX1/2
00519918-xx Stationary camera Typ25 SX1/2
Note: The option JTF-M include 5 pieces 03110222-xx
Tray carrier for JTF-M.
SIPLACE
01.08.2014 Page 4

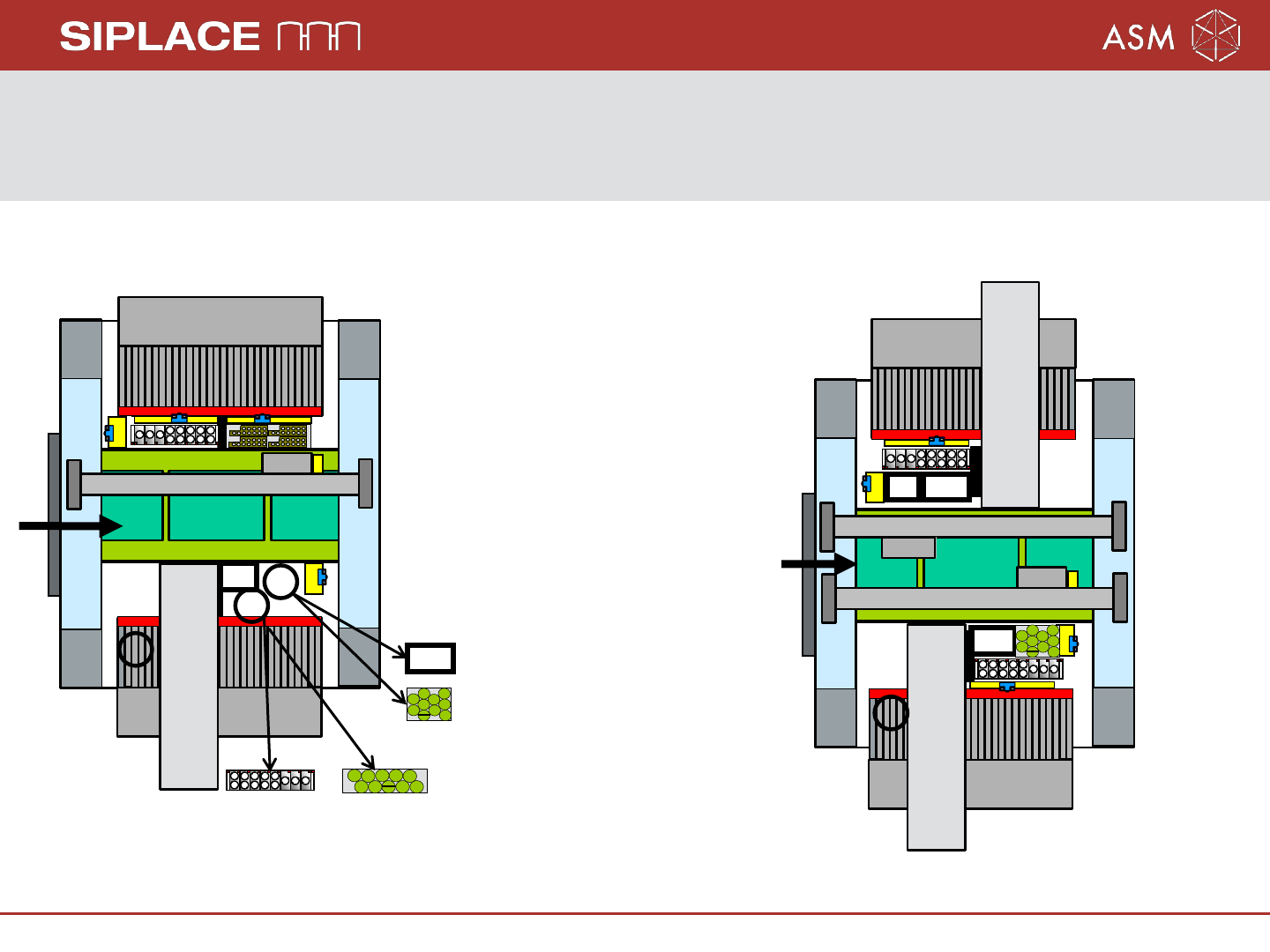

Example Configuration on SX1 and SX2
1. Option:, nozzle changer or SPS magazine
2. Option: stationary camera or SPS magazine
3. Place for non tape feeder (Linear feeder, LDU, Glue feeder)
FCU
FCU
Sensor
Sensor
Sensor
Sensor
FC/3D
SST33
1
2
3
JTF-S or JTF-M
Gantry 1
CPP/TH
SX1 with CPP_H or Twin head
SX2 with CPP_H or Twin head
SST33
FCU
Sensor
Sensor
ST33
FCU
Sensor
Sensor
FC/3D
Gantry 2
CPP/TH
Gantry 1
CPP/TH
JTF-S or JTF-M
JTF-S or JTF-M
3
