STENCIL, MISPRINT, SQUEEGEE cleaning PUMPRINT cleaning www.dct.cleaning TECHNICAL DATA SHEET InJet ® 388 CD www.dct.cleaning CHAMBER

100%1 / 8
STENCIL, MISPRINT, SQUEEGEE cleaning
PUMPRINT cleaning
www.dct.cleaning
TECHNICAL DATA SHEET
InJet
®
388 CD
www.dct.cleaning
CHAMBER
InJet
®
388 CD
TECHNICAL DATA SHEET
2
www.dct.cleaning
GENERAL INFORMATION
The InJet 388 series cleaning systems represent
unique vertical Spray-In-Air technology developed
and manufactured by DCT.
The vertically installed Spray-In-Air device minimizes the
shadowing eff ect commonly seen in horizontal cleaners,
and maximizes the effi ciency of the cleaning process as
the cleaning  uid is sprayed directly onto the cleaned
component.
The InJet
®
388 CD including 100% closed loop with
processes of cleaning and drying technologies.
Both processes are fully automated, and take place
in one process chamber.
The InJet
®
388 CD is a basic cleaning system designed
to remove solder pastes from stencils, squeegees
and one-sided misprints, or can be used for PumPrint
cleaning after consultation.
Depending on your cleaning requirements,
the DCT project manager, in collaboration
with a local distributor, will advise you
on a suitable water-based cleaning fl uid
and the correct setup of the entire process.
InJet
®
388 CD
TECHNICAL DATA SHEET
3
www.dct.cleaning

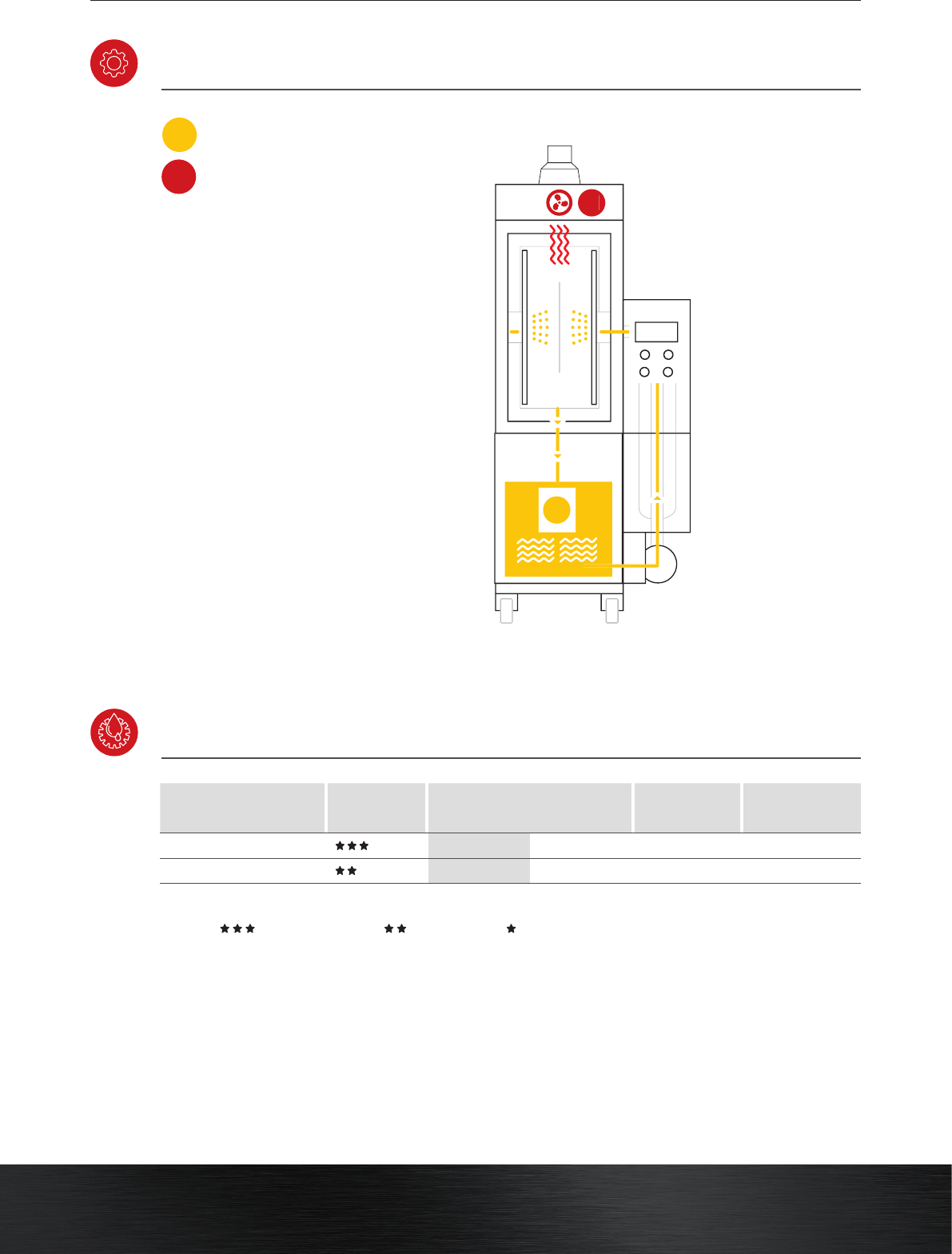

C
D
C
CLEANING
DRYING
D
Application
name
Recommended
application
Recommended
temperature
Total cleaning
process time
Capacity
per 8 hours
Stencil, misprint, squeegee
20 – 40°C 68 – 104 °F 15 min. 32
PumPrint
40 – 55°C 104 – 131 °F 15 min. 32
2 INDIVIDUAL PROCESSES
CLEANING PARAMETRES
highly recommended recommended applicable
* PCB eurocards / per 8 hours (calculated for dimension of 100 x 160 mm / 3.94 x 6.3 in)
* * Parts in soldering palette / per 8 hours (320 x 500 x 50 mm / 12,6 x 19,7 x 1,97 in)
* * * Stencils, pumpprints larger than 736 x 736 mm / 29 x 29 in
LEGEND:
