InJet ® 388 CD TECHNICAL DATA SHEET 4 www.dct.cleaning Dimensions (w x l x h) 1050 x 1360 x 2400 mm 41.3 x 53.5 x 94,4 in Weight 420 kg 926 lbs Ø energy consumption per cycle 1,5 kWh 1.5 kWh Cleaning  uid consumption pe…

100%1 / 8
InJet
®
388 CD
TECHNICAL DATA SHEET
3
www.dct.cleaning
C
D
C
CLEANING
DRYING
D
Application
name
Recommended
application
Recommended
temperature
Total cleaning
process time
Capacity
per 8 hours
Stencil, misprint, squeegee
20 – 40°C 68 – 104 °F 15 min. 32
PumPrint
40 – 55°C 104 – 131 °F 15 min. 32
2 INDIVIDUAL PROCESSES
CLEANING PARAMETRES
highly recommended recommended applicable
* PCB eurocards / per 8 hours (calculated for dimension of 100 x 160 mm / 3.94 x 6.3 in)
* * Parts in soldering palette / per 8 hours (320 x 500 x 50 mm / 12,6 x 19,7 x 1,97 in)
* * * Stencils, pumpprints larger than 736 x 736 mm / 29 x 29 in
LEGEND:
InJet
®
388 CD
TECHNICAL DATA SHEET
4
www.dct.cleaning
Dimensions (w x l x h) 1050 x 1360 x 2400 mm 41.3 x 53.5 x 94,4 in
Weight 420 kg 926 lbs
Ø energy consumption per cycle 1,5 kWh 1.5 kWh
Cleaning  uid consumption per cycle 0,05 – 0,2 l 0.01 – 0.08 gal
Compressed air consumption per cycle 900 l / cycle 237 gal/cycle
Max. dimensions of the cleaned parts 190 x 800 x 760 mm 7.48 x 31,5 x 29,92 in
Max. dimensions of the cleaned part
with used air knife
100 x 800 x 760 mm* 3,94 x 31,5 x 29,92 in
Exchangeable mechanical  lter of cleaning  uid 5 – 200 μm 5–200 μm
Operating pressures 1,5 – 2,8 Bar 21.75 – 40.6 PSI
Cleaning  uid  ow rate 200 l / min 52.8 gal / min
Temperature range setting of the cleaning  uid From ambient temperature to 60°C From ambient temperature to 140°F
Conductivity range settings of the rinsing  uid
in the tanks.
0 – 2000 μS/cm * optional 0 – 2000 μS/cm * optional
Temperature range setting of the drying From ambient temperature to 80°C From ambient temperature to 176°F
Noise level < 70 dB < 70 dB
Device control PLC + 4,3“ touchscreen PLC + 4.3“ touchscreen
Volume of the storage tank 75 l 19,8 gal
* Air knife is optional accessory
TECHNICAL PARAMETERS
DIMENSIONS MINIMUM SERVICE SPACE
AROUND THE MACHINE
600 mm
23.6 in
600 mm
23.6 in
600 mm
23.6 in
600 mm
23.6 in
open door
450 mm
17.7 in
1050 mm
41.3 in
1840 mm
72.4 in
1360 mm
53.5 in
metric units imperial units
2400 mm
94.4 in
InJet
®
388 CD
TECHNICAL DATA SHEET
5
www.dct.cleaning
Power supply 400V, 32A, 50Hz (3+N+PE) UL 400V, 32A, 60Hz* (3+N+PE)
Pmax 7,5 kW 7.5 kW
Connection to central air pressure Pipe Ø 6 mm Pipe ID 0.24 in
Recommended working pressure 4,5 – 6 Bar 65.25 – 87 PSI
Compressed air quality 3. Class ** 3. Class **
Exhaust pipe diameter Ø 100 mm ID 3.94 in
Exhaust pipe capacity 380 m
3
/h 13400 ft
3
/h
Minimum liquid for  rst run 1 x 50 l 2 x 19.8 gal
Service space required around the device 600 mm 23.6 in
* When using frequency convertor
** According to the norm ISO 8573-1

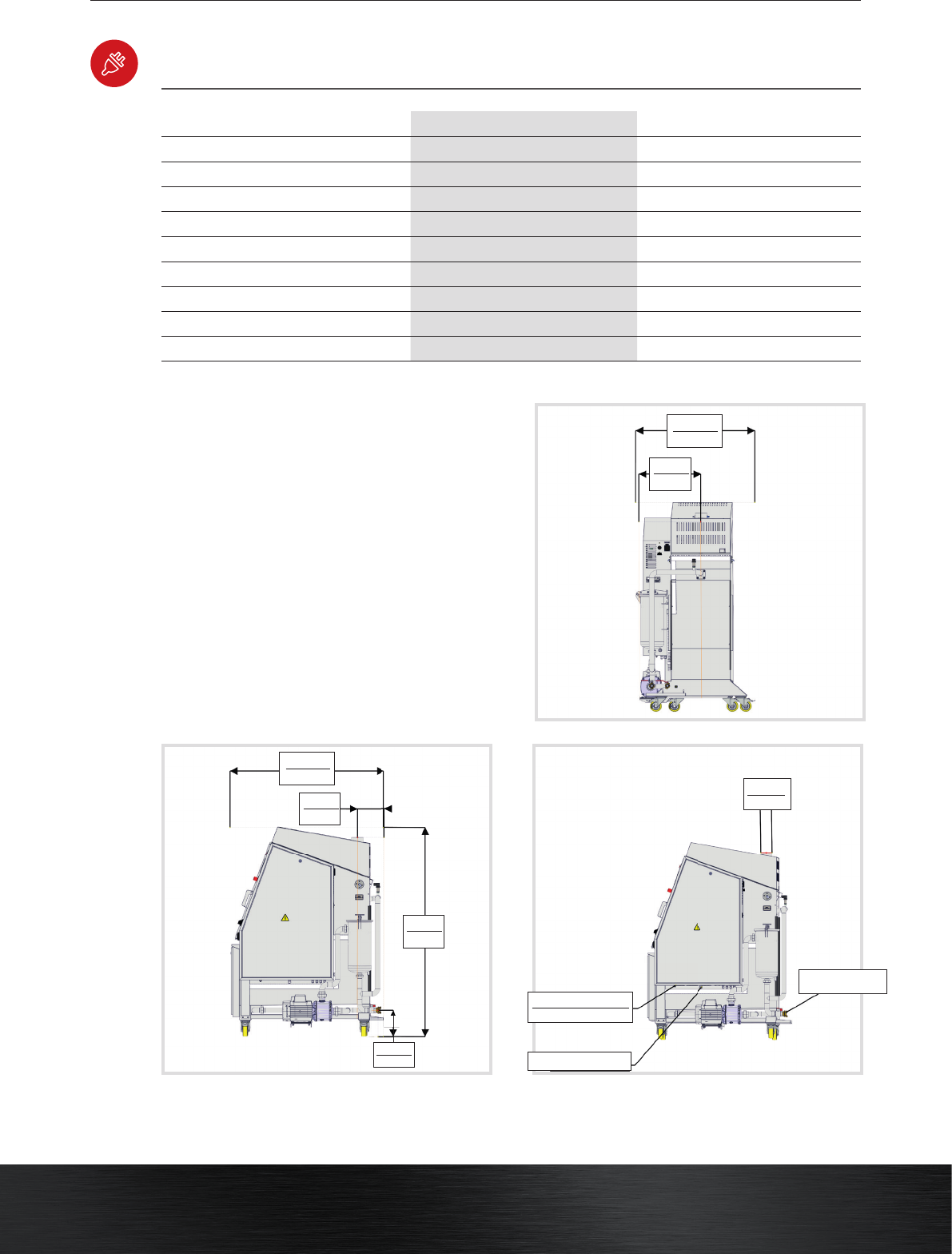

INSTALLATION REQUIREMENTS
BACK
VIEW
RIGHT
VIEW
RIGHT
VIEW
input air pressure Ø 6 mm
input air pressure ID 0.24 in
1050 mm
41.3 in
1360 mm
53.5 in
545 mm
21.5 in
245 mm
9.65 in
Ø 100 mm
ID 3.94 in
input el. power 230/400 V
discharge of fl uids G1“
1840 mm
72.4 in
230 mm
9.06 in
metric units imperial units
