InJet
®
388 CD
TECHNICAL DATA SHEET
2
www.dct.cleaning
GENERAL INFORMATION
The InJet 388 series cleaning systems represent
unique vertical Spray-In-Air technology developed
and manufactured by DCT.
The vertically installed Spray-In-Air device minimizes the
shadowing eff ect commonly seen in horizontal cleaners,
and maximizes the effi ciency of the cleaning process as
the cleaning  uid is sprayed directly onto the cleaned
component.
The InJet
®
388 CD including 100% closed loop with
processes of cleaning and drying technologies.
Both processes are fully automated, and take place
in one process chamber.
The InJet
®
388 CD is a basic cleaning system designed
to remove solder pastes from stencils, squeegees
and one-sided misprints, or can be used for PumPrint
cleaning after consultation.
Depending on your cleaning requirements,
the DCT project manager, in collaboration
with a local distributor, will advise you
on a suitable water-based cleaning fl uid
and the correct setup of the entire process.
InJet
®
388 CD
TECHNICAL DATA SHEET
3
www.dct.cleaning
C
D
C
CLEANING
DRYING
D
Application
name
Recommended
application
Recommended
temperature
Total cleaning
process time
Capacity
per 8 hours
Stencil, misprint, squeegee
20 – 40°C 68 – 104 °F 15 min. 32
PumPrint
40 – 55°C 104 – 131 °F 15 min. 32
2 INDIVIDUAL PROCESSES
CLEANING PARAMETRES
highly recommended recommended applicable
* PCB eurocards / per 8 hours (calculated for dimension of 100 x 160 mm / 3.94 x 6.3 in)
* * Parts in soldering palette / per 8 hours (320 x 500 x 50 mm / 12,6 x 19,7 x 1,97 in)
* * * Stencils, pumpprints larger than 736 x 736 mm / 29 x 29 in
LEGEND:
InJet
®
388 CD
TECHNICAL DATA SHEET
4
www.dct.cleaning
Dimensions (w x l x h) 1050 x 1360 x 2400 mm 41.3 x 53.5 x 94,4 in
Weight 420 kg 926 lbs
Ø energy consumption per cycle 1,5 kWh 1.5 kWh
Cleaning  uid consumption per cycle 0,05 – 0,2 l 0.01 – 0.08 gal
Compressed air consumption per cycle 900 l / cycle 237 gal/cycle
Max. dimensions of the cleaned parts 190 x 800 x 760 mm 7.48 x 31,5 x 29,92 in
Max. dimensions of the cleaned part
with used air knife
100 x 800 x 760 mm* 3,94 x 31,5 x 29,92 in
Exchangeable mechanical  lter of cleaning  uid 5 – 200 μm 5–200 μm
Operating pressures 1,5 – 2,8 Bar 21.75 – 40.6 PSI
Cleaning  uid  ow rate 200 l / min 52.8 gal / min
Temperature range setting of the cleaning  uid From ambient temperature to 60°C From ambient temperature to 140°F
Conductivity range settings of the rinsing  uid
in the tanks.
0 – 2000 μS/cm * optional 0 – 2000 μS/cm * optional
Temperature range setting of the drying From ambient temperature to 80°C From ambient temperature to 176°F
Noise level < 70 dB < 70 dB
Device control PLC + 4,3“ touchscreen PLC + 4.3“ touchscreen
Volume of the storage tank 75 l 19,8 gal
* Air knife is optional accessory

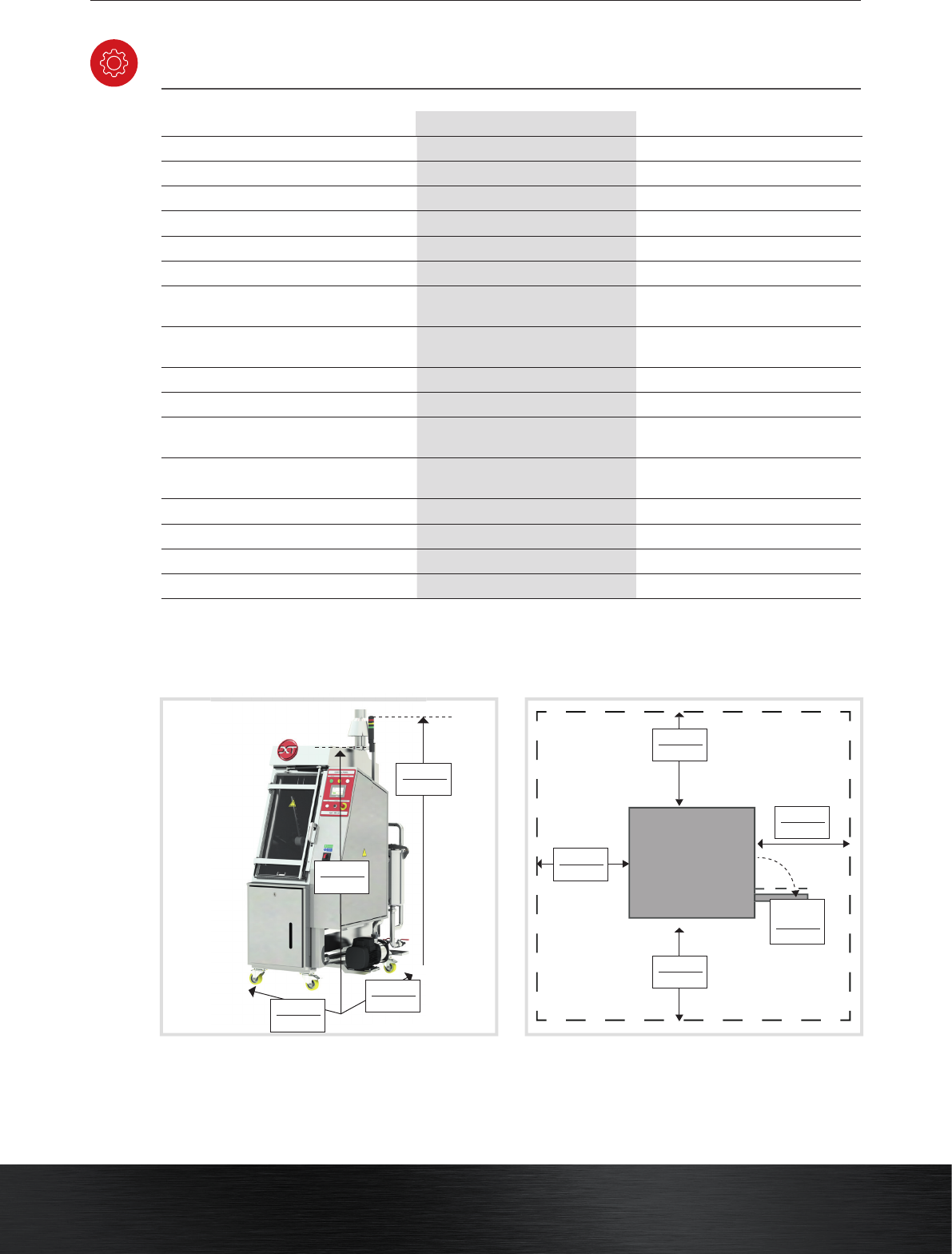

TECHNICAL PARAMETERS
DIMENSIONS MINIMUM SERVICE SPACE
AROUND THE MACHINE
600 mm
23.6 in
600 mm
23.6 in
600 mm
23.6 in
600 mm
23.6 in
open door
450 mm
17.7 in
1050 mm
41.3 in
1840 mm
72.4 in
1360 mm
53.5 in
metric units imperial units
2400 mm
94.4 in
