Efficient Ac cur ate Speedy Yield Incr easing www .auro tek.com. tw Inheriting the excellent design of AUO series, the high-efficiency dual working table with automatic loading/unloading system, the fully-automatic PCB S…
Efficient
Accurate
Speedy
Yield Increasing
www.aurotek.com.tw

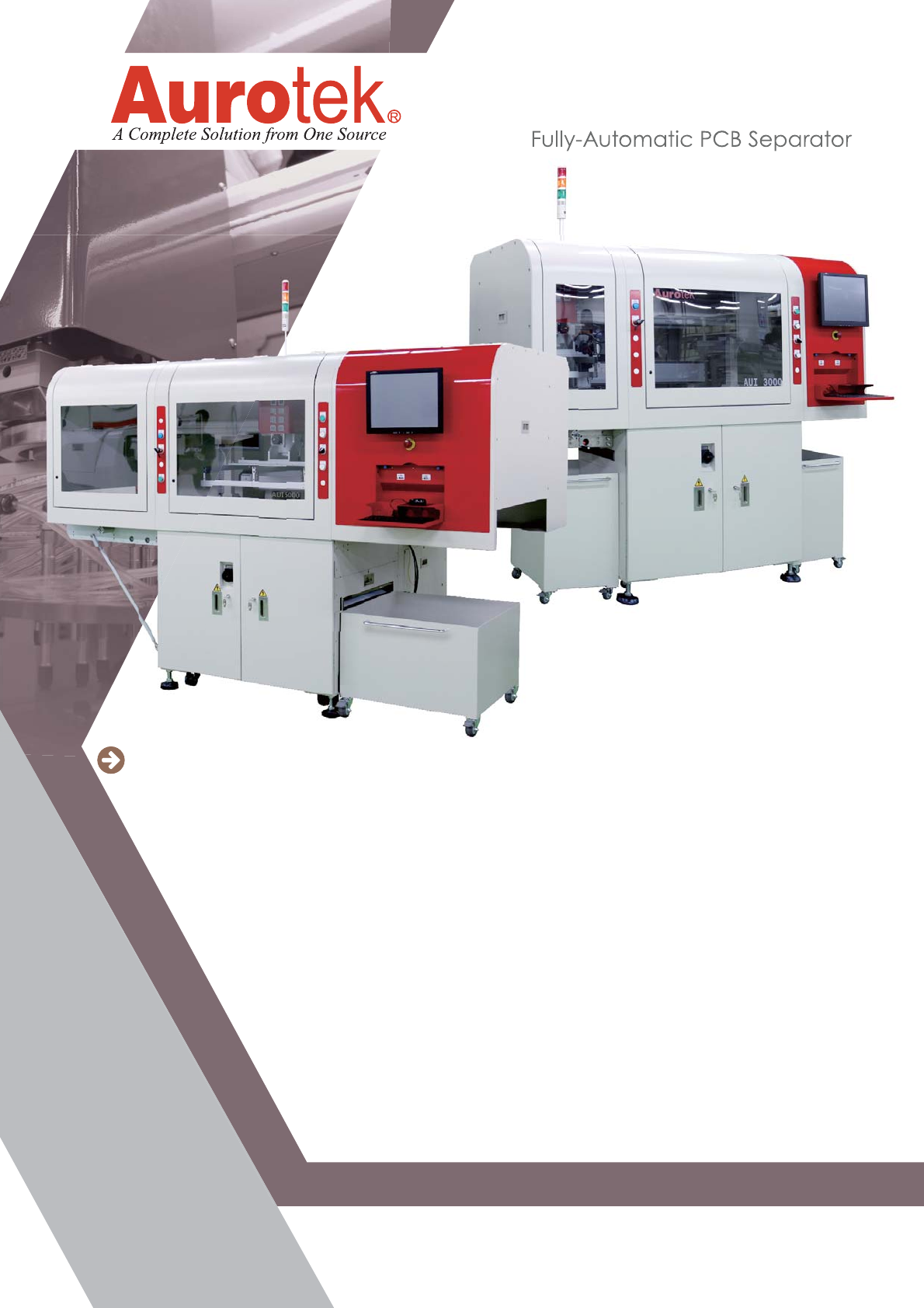

Inheriting the excellent design of AUO series, the high-efficiency dual working table
with automatic loading/unloading system, the fully-automatic PCB Separator AUI
series is born.
In addition to the features of clean working, effective PCB separating and
easy to operate, the AUI series is applicable to assorted sizes of PCB.
We provide flexible and customer-configurable options for different
production need such as spindle and dust collecting system, and other
specific functions requested by customers.
The AUI series is the closest to your production management
requirement, the user-friendly operation interface, the cutting path
simulation & optimization, and POKA YOKE processing control
provides the customer a time cost-saving and production/
material traceable solution.
AUI SERIES
AUI 3000 / 4000 / 5000 SERIES
MODEL NO. AUI 3000 / 3000C AUI 4000 / 4000C AUI 5000 / 5000C
WORKING AREA X:330 mm Y:350 mm X:430mm Y:450mm X:630 mm Y:550 mm
Working Table 221
PCB Thickness 0.8 ~ 3.0 mm
PCB Component Height (Max.) Upward: 15 mm / Downward: 35 mm
Motion Control 7 Axes AC Servo Motors 7 Axes AC Servo Motors 6 Axes AC Servo Motors
Moving Speed
Standard: X, Y=1,000 mm/s; Z=750 mm/s; Carrier X=700 mm/s; Carrier Z=750 mm/s
Maximum: X, Y=1, 200 mm/s; Z=750 mm/s; Carrier X=700 mm/s; Carrier Z=750 mm/s
Cutting Speed 0~100 mm/s
Cutting Accuracy ±80 μm ±80 μm ±100 μm
Positioning Repeatability ±10 μm
Cutting Modes Linear, Circular, U-Curve, Arc, L-Curve
Standard Bits Ø 1.0 mm, Ø 1.2 mm, Ø 1.6 mm, Ø 2.0 mm
Operating System Windows 7
Pneumatic Pressure 0.5/0.6 Mpa (5/6 Bar)
Working Height 890 ~ 940 mm
Dimensions (W*D*H)
1974*1120*1720 mm
+ Signal Light 561 mm
2374*1334*1720 mm
+ Signal Light 561 mm
2572*1583*1720 mm
+ Signal Light 561 mm
Net Weight (Approx.) 680 KGS 840 KGS 860 KGS
Vacuum Cleaner 5HP
Standard Spindle
Standard: 4026, 265W, (Max.) 58,000 rpm, Torque: 4.5 Ncm
Option 1: 4025DC-T, 470W, (Max.) 30,000 rpm, Torque: 15 Ncm
Option 2: AP 008-ESD, 500W, (Max.) 80,000 rpm, Torque: 8.4 Ncm
Standard Monitor 15” Touch Panel
Power Supply 3 Phase AC220 V±5% 50 Hz/60 Hz, 4.0 kw
SPECIFICATION
Efficient
A. High horsepowe indusrial dust-collectors
B. Small dust-collecting duct designed for upward or downward dust extraction systems
C. Duct is close to the milling area, removing dust at once while depaneling
Speedy
A. High-speed axis modules reaches up to (max.) 1200 mm/s
B. Maximum cutting speed 100mm/s
C. 2 parellel processing tables. Maximize production throughput while minimizes idle time
D. Customized fixture and tools. Production changeover can be done in just a few seconds
Yield Increasing
Easy to use is a MUST.
We design machines for:
A. Manageability
B. Usability
C. Safety
D. Traceability
Accurate
A. KURODA high precision ball screw
B. Panasonic servo motor
C. Sycotec spindle
D. Advantech industrial computer
We gurantee: Cpk>=1.33
Positioning Repeatability ±10 μm
Cutting Accuracy ±80 μm
E. Aurotek motion control card
F. Aurotek Vision System

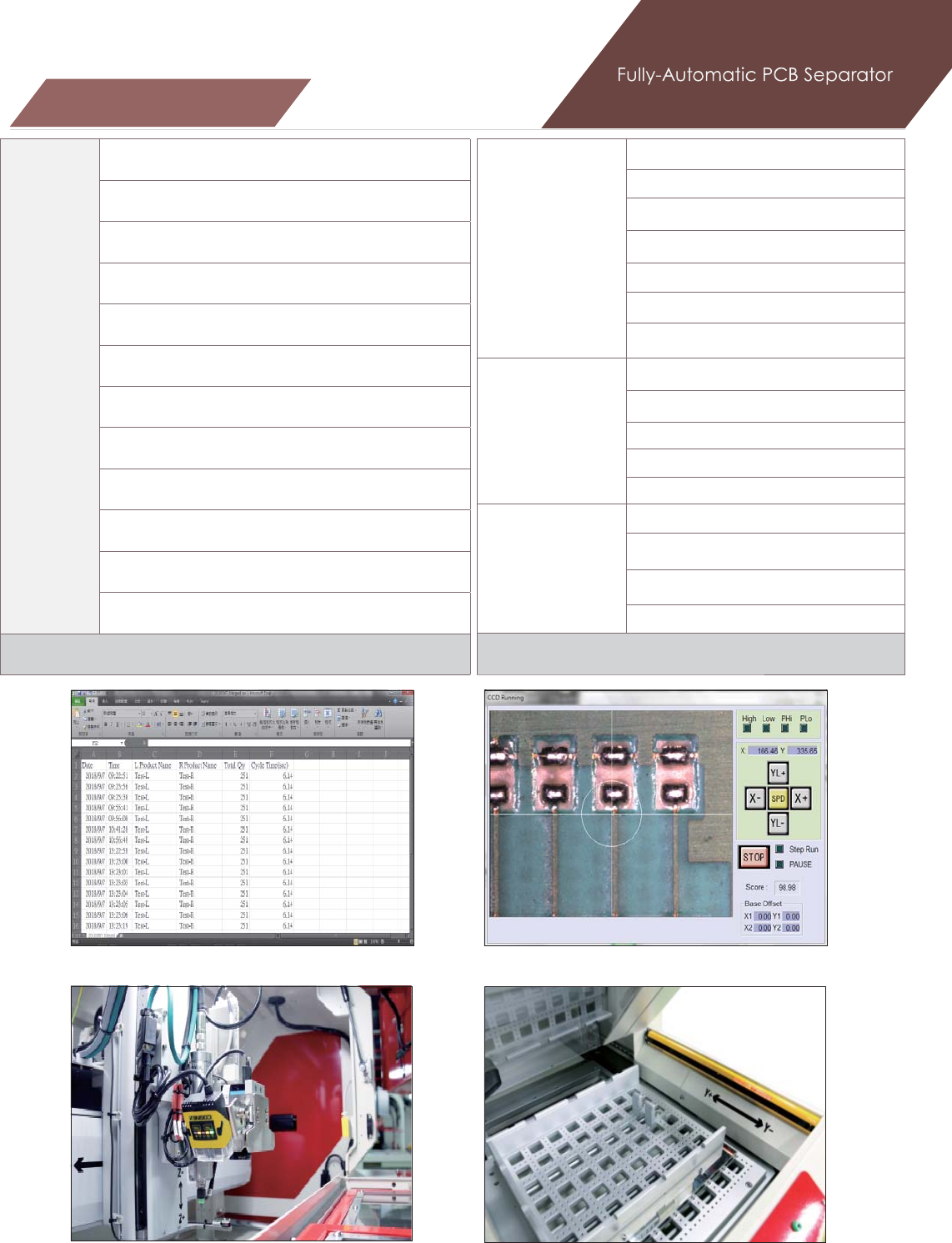

FEATURES
AUI 3000 / 4000 / 5000
AUI SERIES
Manageability
Real-Time Production Info
Spindle & Bit Lifespan Management
User Account Management
System Backup Software
Bit Diameter Detection *
Specific Fixture Identification*
Specific Nozzle Pad Identification *
Safety
Bit Sliding & Breaking Detection
Fiducial Mark Alignment
Air Ionizer System
PCB Bow & Twist Checking
CE Approval*
Traceability
Production Traceability
Automatic Barcode(DMX) Reader *
MES Integration (by TCP/IP Socket) *
UPS system for IPC*
Useability
CCD Camera System
Cutting Route Simulation
Cutting Route Optimization
Bit-sectioning for Multiple Usage (0~9 Times)
Offline Programming Software *
Spindle Rpm Digital Adjustment *
Inlet Conveyor Width Auto-Adjustment *
Output Flat Belt Conveyor *
Rotatable Carrier *
Specific Fixture *
Universal Loading/unloading system with Nozzle
Module
Nozzle Pad *
* SOME OPTIONS CAN’T BE APPLIED TO SOME MODELS TOGETHER,
PLEASE CONTACT US FOR FURTHER CONFIRMATION
Bit Sliding & Breaking Detection PCB Bow & Twist Checking
CCD Camera SystemProduction Traceability
