MODEL NO AUO 3000DT / 3000DTC WORKING AREA X:330mm Y:250mm Working Table 1 PCB Thickness 0.8 ~ 3.0 mm PCB Component Height (Max.) Upward: 15 mm / Downward: 45 mm Motion Control 3 Axes with Panasonic AC Servo Motors Movin…
www.aurotek.com.tw

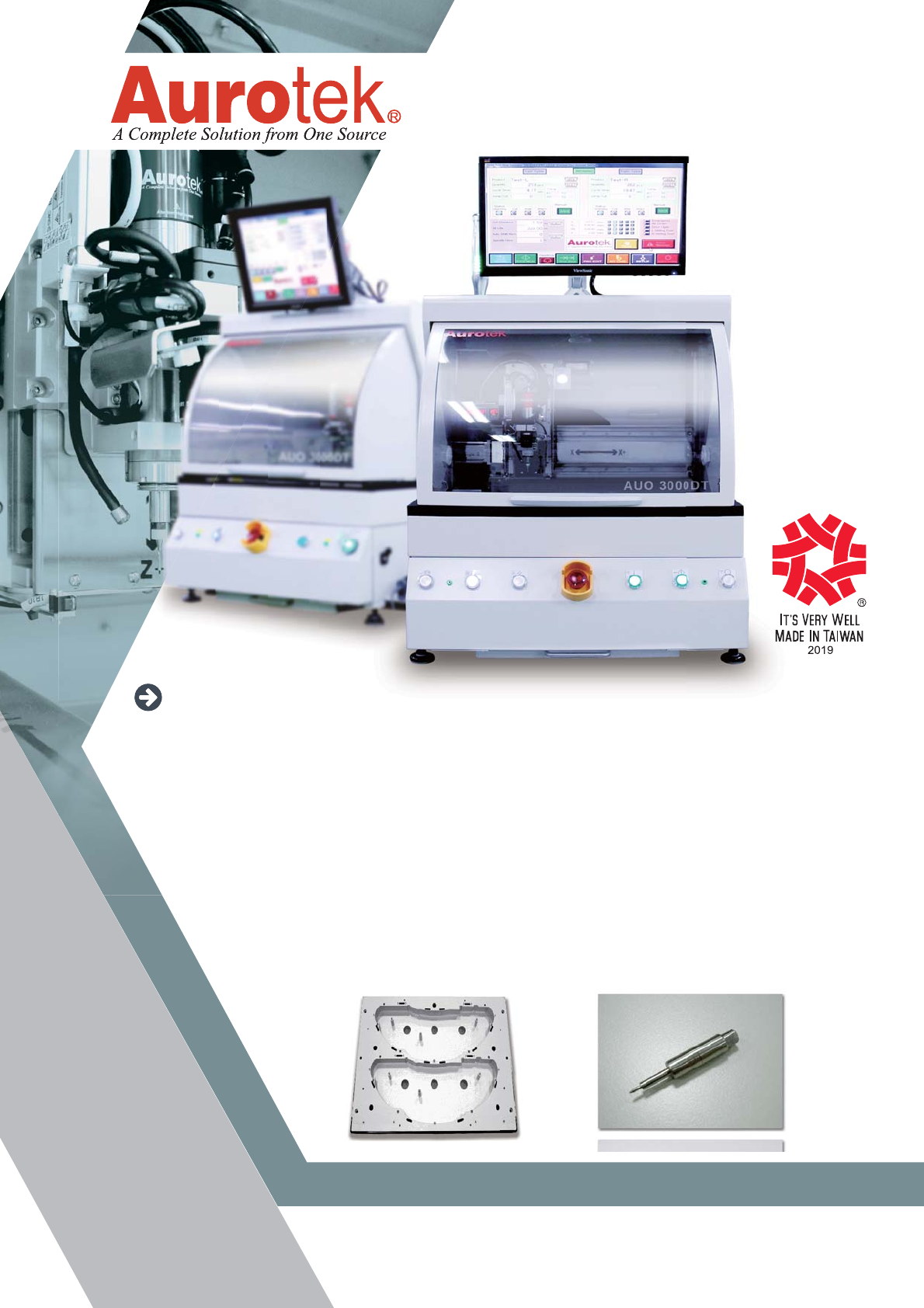

AUO 3000DT / 3000DTC
Desktop Semi-Automatic PCB Separator
AUO 3000DT desktop type PCB separator is the most ideal solution for SMT
line with space limitation, the PC-based controller system provides more
friendly user interface.
The AUO 3000DT is equipped with its optimal dust collection system, and its
lightweight design provides customers a space-saving solution.
The single working table is suitable for small-volume large-variety
production, it is a most cost-efficient PCB separator!
AUO3000DT brings usability, safety and portability to user.
AUO 3000DT / 3000DTC SERIES
Efficient
Accurate
Speedy
Yield Increasing
AUO
3000DT
/
3000DT
C
Deskto
p
Sem
i
-Automat
i
c PCB Se
p
ara
t
A
UO
3
00
0D
T
de
sk
to
p
ty
pe
P
P
CB
CB
s
s
ep
ep
ar
ar
at
at
or
or
i
i
s
s
th
th
e
e
mo
mo
st
st
i
i
de
de
al
al
s
s
ol
ol
ut
ut
io
io
n
fo
r
SM
T
MODEL NO
AUO 3000DT / 3000DTC
WORKING AREA X:330mm Y:250mm
Working Table 1
PCB Thickness 0.8 ~ 3.0 mm
PCB Component Height (Max.) Upward: 15 mm / Downward: 45 mm
Motion Control 3 Axes with Panasonic AC Servo Motors
Moving Speed Maximum : X, Y, Z=500 mm/s
Cutting Speed 0~100 mm/s
Cutting Accuracy ±80 μm
Positioning Repeatability ±10 μm
Cutting Modes Linear, Circular, U-Curve, Arc, L-Curve
Standard Bits Ø 1.0 mm, Ø 1.2 mm, Ø 1.6 mm, Ø 2.0 mm
Operating System Windows 7
Pneumatic Pressure 0.5/0.6 Mpa (5/6 Bar)
Working Height It'll be decided by customers.
Dimensions (W*D*H)
680*815*845 mm + Signal Light 280 mm
Net Weight (Approx.) 140 KGS
Vacuum Cleaner 3HP
Standard Spindle
Standard: 4026, 265W, (Max.) 58,000 rpm, Torque: 4.5 Ncm
Option: AP 008-ESD, 500W, (Max.) 80,000 rpm, Torque: 8.4 Ncm
Standard Monitor 19" LCD Monitor
Power Supply 1 Phase AC220 V±5% 50 Hz/60 Hz, 1.1 kw
Bit Sliding & Breaking Detection
Fiducial Mark Alignment
CCD Camera System
SPECIFICATION
Universal Fixture / Specific Fixture
Specific Fixture Identification
FEATURES
AUO 3000DT / 3000DTC
AUO DT SERIES
Desktop Semi-Automatic PCB Separator
Efficient
A. Mini size high horsepower indusrial dust-collector
B. Small dust-collecting duct is close to the milling area, removing dust at once while depaneling
Speedy
A. High-speed axis modules reach up to (max. )500 mm/s
B. Maximum cutting speed 100mm/s
C. Customized fixture and tools. Production changeover can be done in just a
few seconds
Yield Increasing
Easy to use is a MUST.
We design machines for:
A. Manageability
B. Usability
C. Safety
D. Traceability
Accurate
A. KURODA high precision ball screw
B. Panasonic servo motor
C. Sycotec spindle
D. Advantech industrial computer
We gurantee: Cpk>=1.33
Positioning Repeatability ±10 μm
Cutting Accuracy ±80 μm
E. Aurotek motion control card
F. Aurotek Vision System
Manageability
Real-Time Production Info
Spindle & Bit Lifespan Management
User Account Management
System Backup Software
Bit Diameter Detection *
Specific Fixture Identification *
Specific Nozzle Pad Identification *
Useability
CCD Camera System
Cutting Route Simulation
Cutting Route Optimization
Bit-sectioning for Multiple Usage (0~9 Times)
Offline Programming Software *
Spindle Rpm Digital Adjustment*
Inlet Conveyor Width Auto-Adjustment *
Output Flat Belt Conveyor *
Specific Fixture *
Universal Loading/unloading system with
Nozzle Module
Nozzle Pad *
Safety
Bit Sliding & Breaking Detection
Fiducial Mark Alignment
Air Ionizer System
CE Approval *
Traceability
Production Traceability
Automatic Barcode(DMX) Reader*
MES Integration (by TCP/IP Socket) *
* SOME OPTIONS CAN’T BE APPLIED TO SOME MODELS TOGETHER, PLEASE
CONTACT US FOR FURTHER CONFIRMATION.
