FEATURES AUI 3000 / 4000 / 5000 AUI SERIES M ana ge ability R eal-Time Production Info Spindle & Bit Lifespan Management User Account Management Syst em Backup Software Bit Diameter Detection * Specific Fixture Ident…
MODEL NO. AUI 3000 / 3000C AUI 4000 / 4000C AUI 5000 / 5000C
WORKING AREA X:330 mm Y:350 mm X:430mm Y:450mm X:630 mm Y:550 mm
Working Table 221
PCB Thickness 0.8 ~ 3.0 mm
PCB Component Height (Max.) Upward: 15 mm / Downward: 35 mm
Motion Control 7 Axes AC Servo Motors 7 Axes AC Servo Motors 6 Axes AC Servo Motors
Moving Speed
Standard: X, Y=1,000 mm/s; Z=750 mm/s; Carrier X=700 mm/s; Carrier Z=750 mm/s
Maximum: X, Y=1, 200 mm/s; Z=750 mm/s; Carrier X=700 mm/s; Carrier Z=750 mm/s
Cutting Speed 0~100 mm/s
Cutting Accuracy ±80 μm ±80 μm ±100 μm
Positioning Repeatability ±10 μm
Cutting Modes Linear, Circular, U-Curve, Arc, L-Curve
Standard Bits Ø 1.0 mm, Ø 1.2 mm, Ø 1.6 mm, Ø 2.0 mm
Operating System Windows 7
Pneumatic Pressure 0.5/0.6 Mpa (5/6 Bar)
Working Height 890 ~ 940 mm
Dimensions (W*D*H)
1974*1120*1720 mm
+ Signal Light 561 mm
2374*1334*1720 mm
+ Signal Light 561 mm
2572*1583*1720 mm
+ Signal Light 561 mm
Net Weight (Approx.) 680 KGS 840 KGS 860 KGS
Vacuum Cleaner 5HP
Standard Spindle
Standard: 4026, 265W, (Max.) 58,000 rpm, Torque: 4.5 Ncm
Option 1: 4025DC-T, 470W, (Max.) 30,000 rpm, Torque: 15 Ncm
Option 2: AP 008-ESD, 500W, (Max.) 80,000 rpm, Torque: 8.4 Ncm
Standard Monitor 15” Touch Panel
Power Supply 3 Phase AC220 V±5% 50 Hz/60 Hz, 4.0 kw
SPECIFICATION
Efficient
A. High horsepowe indusrial dust-collectors
B. Small dust-collecting duct designed for upward or downward dust extraction systems
C. Duct is close to the milling area, removing dust at once while depaneling
Speedy
A. High-speed axis modules reaches up to (max.) 1200 mm/s
B. Maximum cutting speed 100mm/s
C. 2 parellel processing tables. Maximize production throughput while minimizes idle time
D. Customized fixture and tools. Production changeover can be done in just a few seconds
Yield Increasing
Easy to use is a MUST.
We design machines for:
A. Manageability
B. Usability
C. Safety
D. Traceability
Accurate
A. KURODA high precision ball screw
B. Panasonic servo motor
C. Sycotec spindle
D. Advantech industrial computer
We gurantee: Cpk>=1.33
Positioning Repeatability ±10 μm
Cutting Accuracy ±80 μm
E. Aurotek motion control card
F. Aurotek Vision System
FEATURES
AUI 3000 / 4000 / 5000
AUI SERIES
Manageability
Real-Time Production Info
Spindle & Bit Lifespan Management
User Account Management
System Backup Software
Bit Diameter Detection *
Specific Fixture Identification*
Specific Nozzle Pad Identification *
Safety
Bit Sliding & Breaking Detection
Fiducial Mark Alignment
Air Ionizer System
PCB Bow & Twist Checking
CE Approval*
Traceability
Production Traceability
Automatic Barcode(DMX) Reader *
MES Integration (by TCP/IP Socket) *
UPS system for IPC*
Useability
CCD Camera System
Cutting Route Simulation
Cutting Route Optimization
Bit-sectioning for Multiple Usage (0~9 Times)
Offline Programming Software *
Spindle Rpm Digital Adjustment *
Inlet Conveyor Width Auto-Adjustment *
Output Flat Belt Conveyor *
Rotatable Carrier *
Specific Fixture *
Universal Loading/unloading system with Nozzle
Module
Nozzle Pad *
* SOME OPTIONS CAN’T BE APPLIED TO SOME MODELS TOGETHER,
PLEASE CONTACT US FOR FURTHER CONFIRMATION
Bit Sliding & Breaking Detection PCB Bow & Twist Checking
CCD Camera SystemProduction Traceability

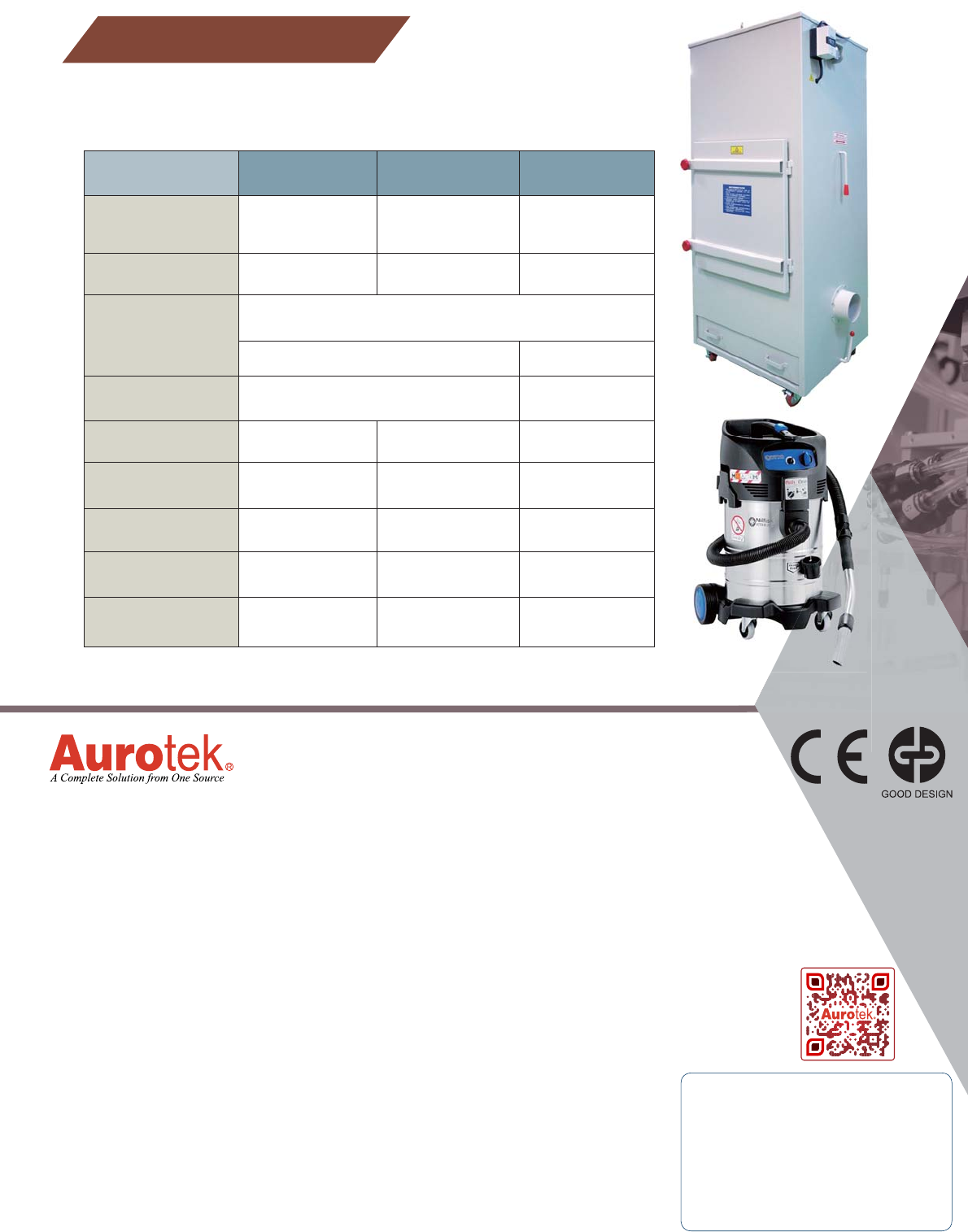

VACUUM CLEANER
Aurotek Corporation Headquarter
Address : 1F, No. 60, Jhouzih St. ,Neihu
District, Taipei 114, Taiwan.
TEL : +886-2
-
8752-3311
FAX : +886-2
-
8752-3347
E-mail : info@aurotek.com
Website : https://www.aurotek.com.tw/en
Taichoung Office
Address :7F-8, No. 262, Sec. 2,
He-Nan Rd., Si-Tun District, TaichungCity
407, Taiwan.
TEL : +886-4-2452-2822
FAX : +886-4-2451-0073
E-mail : info@aurotek.com
Taoyuan Plant
Address : 1F, No.61, Lioufu Rd., Lujhu
District, Taoyuan 338, Taiwan.
TEL : +886-3-322-3788, +886-3-212-1775
FAX : +886-3-322-0866, +886-3-322-0869
E-mail : info@aurotek.com
Tainan Office
Address : 7F, No. 573, Cing-Ping Rd.,
An-Ping District, TainanCity 708, Taiwan.
TEL : +886-6-293-4853
FAX : +886-6-293-4973
E-mail : info@aurotek.com
Aurotek (Shanghai) Inc.
Address : No. 936, Ji Min Tang Nan Rd., Huaqiao
Economic Development Zone Kunshan, Jiangsu,
215332 China.
TEL : +86-512-5013-9099, +86-512-5013-9091 ~ 7
FAX : +86-512-5013-9098, +86-512-5013-9089
E-mail : sales@aurotek.com.cn
Website : https://www.aurotek.com.cn
Aurotek (Kunshan) Inc.
Address : No. 936, Ji Min Tang Nan Rd., Huaqiao
Economic Development Zone Kunshan, Jiangsu,
215332 China.
TEL : +86-512-5797-1581
FAX : +86-512-5797-1583
Aurotek (Shanghai) Inc, Huanan Office.
Address :Shenzhen District Longhua new district east
peace zhenhua 21 times plaza, room 706
TEL : +86-755-2919-5676
FAX : +86-755-2377-7037
E-mail : sales@aurotek.com.cn
Aurotek (Japan) Inc.
Address :2nd Fl., Akihabara-Seishin Bidg., 11-7-8 Kanda
Suda-cho, Chiyoda-ku Tokyo 101-0041, Japan.
TEL : +81-3-5297-7028
FAX : +81-3-5297-7029
E-mail : info@aurotek.co.jp
Website : https://www.aurotek.com.tw/jp
Plenty Island (Thai) Co., Ltd.
Address : 3 Soi Charoenrat 10, Charoenrat Rd.,
Bangkhlo, Bangkhorlaem, Bangkok 10120 Thailand.
TEL : +66-2-291-9933 (Automatic 8 Lines)
FAX : +66-2-291-2065
E-mail : jackson@plenty.co.th
AUROTEK CORPORATION
CAT.2019/02/25
Copyright © 2019 Aurotek Corporation. All rights reserved.
MODEL NO. YSF-V553 YSF-V553 ZETA YSF-V605
Dimensions(L*W*H) 665x635x1610 mm 780x780x1000 mm 780x665x1900 mm
Weight 195 KGS 170 KGS 230 KGS
Power supply
3 phase 50 Hz / 60 Hz 220 V
2.2 kw 3.7 kw
Motor power 3 HP 5 HP
Inlet wind speed 26 m/sec 27 m/sec 28 m/sec
Inlet wind capacity 28 m³/min 26 m³/min 40 m³/min
Inlet wind pressure 300 mm -Ag 180 mm-Ag 300 mm -Ag
Inlet Diameter 150 mm 125 mm 150 mm
Outlet Diameter 203 mm 150 mm 203 mm
YSF vacuum cleaner is designed for PCB Separator Series to collect
the dust & scrap generated by router. High horse power motor & high
efficiency fan to ensure the suction with excellent efficiency.
