FEATURES
AUI 3000 / 4000 / 5000
AUI SERIES
Manageability
Real-Time Production Info
Spindle & Bit Lifespan Management
User Account Management
System Backup Software
Bit Diameter Detection *
Specific Fixture Identification*
Specific Nozzle Pad Identification *
Safety
Bit Sliding & Breaking Detection
Fiducial Mark Alignment
Air Ionizer System
PCB Bow & Twist Checking
CE Approval*
Traceability
Production Traceability
Automatic Barcode(DMX) Reader *
MES Integration (by TCP/IP Socket) *
UPS system for IPC*
Useability
CCD Camera System
Cutting Route Simulation
Cutting Route Optimization
Bit-sectioning for Multiple Usage (0~9 Times)
Offline Programming Software *
Spindle Rpm Digital Adjustment *
Inlet Conveyor Width Auto-Adjustment *
Output Flat Belt Conveyor *
Rotatable Carrier *
Specific Fixture *
Universal Loading/unloading system with Nozzle
Module
Nozzle Pad *
* SOME OPTIONS CAN’T BE APPLIED TO SOME MODELS TOGETHER,
PLEASE CONTACT US FOR FURTHER CONFIRMATION
Bit Sliding & Breaking Detection PCB Bow & Twist Checking
CCD Camera SystemProduction Traceability
VACUUM CLEANER
Aurotek Corporation Headquarter
Address : 1F, No. 60, Jhouzih St. ,Neihu
District, Taipei 114, Taiwan.
TEL : +886-2
-
8752-3311
FAX : +886-2
-
8752-3347
E-mail : info@aurotek.com
Website : https://www.aurotek.com.tw/en
Taichoung Office
Address :7F-8, No. 262, Sec. 2,
He-Nan Rd., Si-Tun District, TaichungCity
407, Taiwan.
TEL : +886-4-2452-2822
FAX : +886-4-2451-0073
E-mail : info@aurotek.com
Taoyuan Plant
Address : 1F, No.61, Lioufu Rd., Lujhu
District, Taoyuan 338, Taiwan.
TEL : +886-3-322-3788, +886-3-212-1775
FAX : +886-3-322-0866, +886-3-322-0869
E-mail : info@aurotek.com
Tainan Office
Address : 7F, No. 573, Cing-Ping Rd.,
An-Ping District, TainanCity 708, Taiwan.
TEL : +886-6-293-4853
FAX : +886-6-293-4973
E-mail : info@aurotek.com
Aurotek (Shanghai) Inc.
Address : No. 936, Ji Min Tang Nan Rd., Huaqiao
Economic Development Zone Kunshan, Jiangsu,
215332 China.
TEL : +86-512-5013-9099, +86-512-5013-9091 ~ 7
FAX : +86-512-5013-9098, +86-512-5013-9089
E-mail : sales@aurotek.com.cn
Website : https://www.aurotek.com.cn
Aurotek (Kunshan) Inc.
Address : No. 936, Ji Min Tang Nan Rd., Huaqiao
Economic Development Zone Kunshan, Jiangsu,
215332 China.
TEL : +86-512-5797-1581
FAX : +86-512-5797-1583
Aurotek (Shanghai) Inc, Huanan Office.
Address :Shenzhen District Longhua new district east
peace zhenhua 21 times plaza, room 706
TEL : +86-755-2919-5676
FAX : +86-755-2377-7037
E-mail : sales@aurotek.com.cn
Aurotek (Japan) Inc.
Address :2nd Fl., Akihabara-Seishin Bidg., 11-7-8 Kanda
Suda-cho, Chiyoda-ku Tokyo 101-0041, Japan.
TEL : +81-3-5297-7028
FAX : +81-3-5297-7029
E-mail : info@aurotek.co.jp
Website : https://www.aurotek.com.tw/jp
Plenty Island (Thai) Co., Ltd.
Address : 3 Soi Charoenrat 10, Charoenrat Rd.,
Bangkhlo, Bangkhorlaem, Bangkok 10120 Thailand.
TEL : +66-2-291-9933 (Automatic 8 Lines)
FAX : +66-2-291-2065
E-mail : jackson@plenty.co.th
AUROTEK CORPORATION
CAT.2019/02/25
Copyright © 2019 Aurotek Corporation. All rights reserved.
MODEL NO. YSF-V553 YSF-V553 ZETA YSF-V605
Dimensions(L*W*H) 665x635x1610 mm 780x780x1000 mm 780x665x1900 mm
Weight 195 KGS 170 KGS 230 KGS
Power supply
3 phase 50 Hz / 60 Hz 220 V
2.2 kw 3.7 kw
Motor power 3 HP 5 HP
Inlet wind speed 26 m/sec 27 m/sec 28 m/sec
Inlet wind capacity 28 m³/min 26 m³/min 40 m³/min
Inlet wind pressure 300 mm -Ag 180 mm-Ag 300 mm -Ag
Inlet Diameter 150 mm 125 mm 150 mm
Outlet Diameter 203 mm 150 mm 203 mm
YSF vacuum cleaner is designed for PCB Separator Series to collect
the dust & scrap generated by router. High horse power motor & high
efficiency fan to ensure the suction with excellent efficiency.
AUO 3000 / 4000 SERIES
Efficient
Accurate
Speedy
Yield Increasing
www.aurotek.com.tw

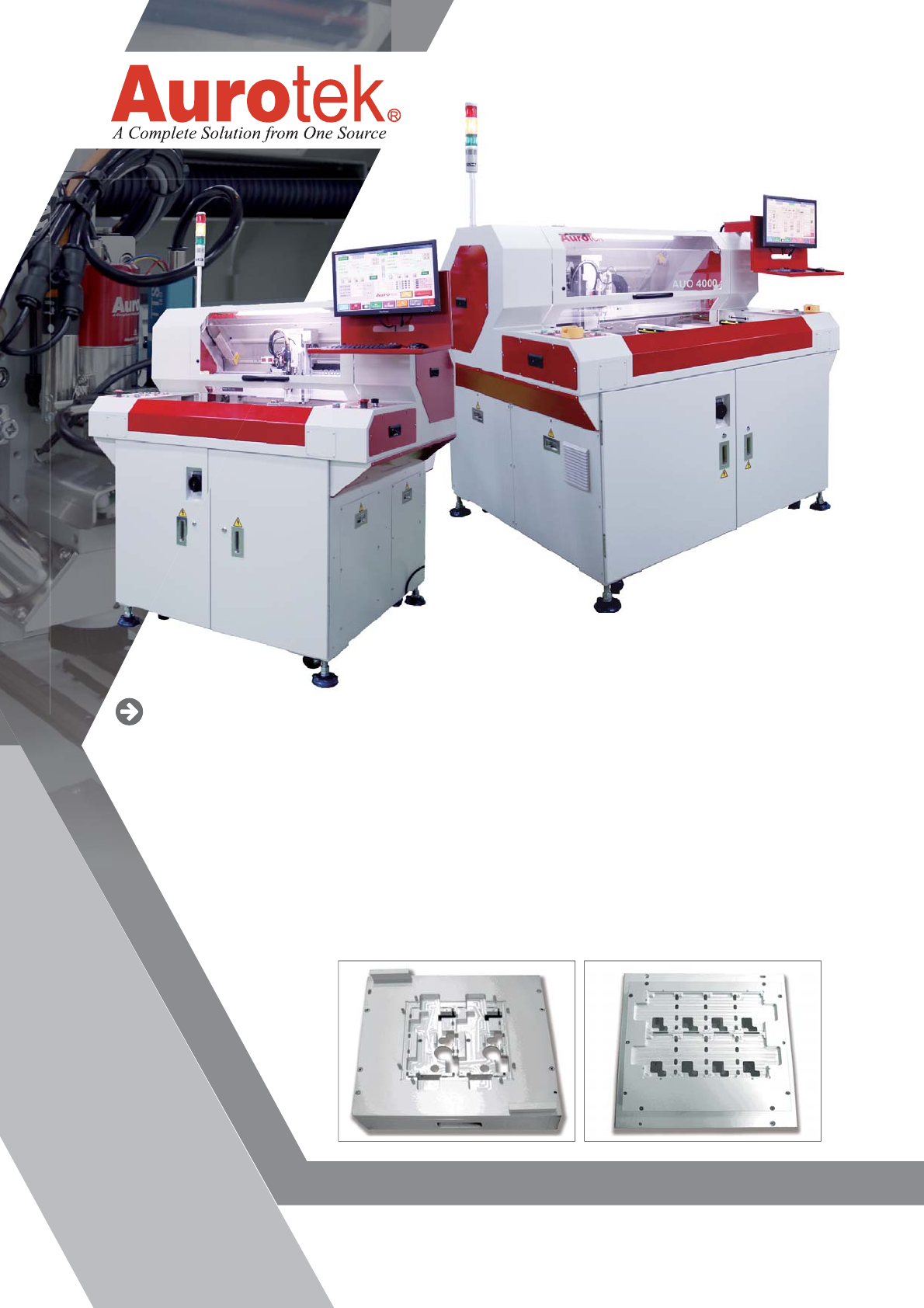

The semi-automatic (offline) PCB Separator is the best solutions to fit the mass
production in SMT line.
Dual working table enhances the production efficiency. Standard 2 machine
models are applicable for different PCB sizes (330*350mm, 450*520mm).
At same time Aurotek provides customize options to meet the specific demand
of PCB production.
Friendly interface, accurate PCB depaneling along with dual working table
brings you more productive production experience.
AUO SERIES
Semi-Automatic PCB Separator
