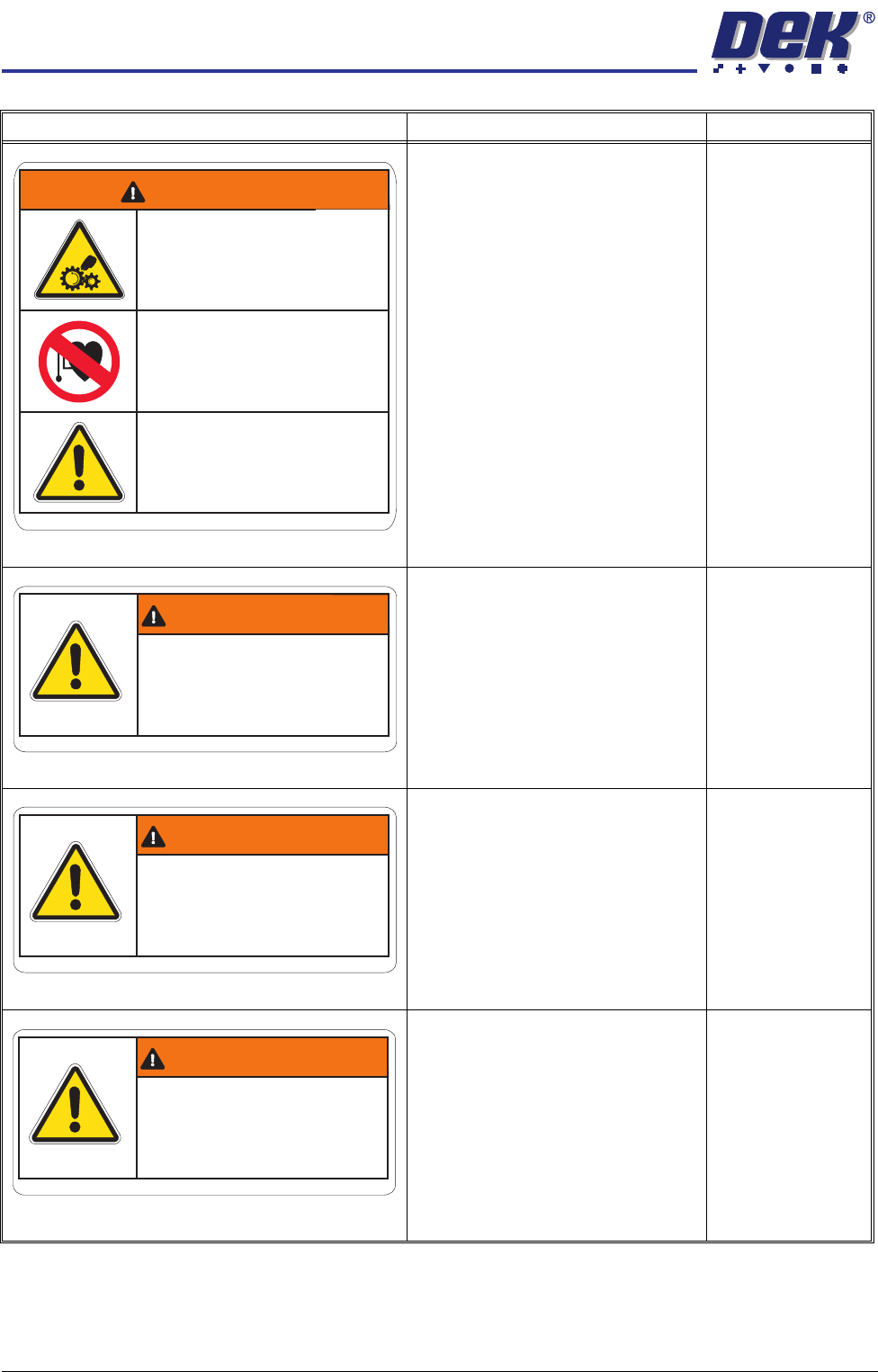

SAFETY FEATURES
MACHINE SAFETY FEATURES
2.2 Technical Reference Manual Chapter Issue 6 Oct 06
Warning Definition
WARNING: EXCLAMATION MARK
General to all hazards not covered by a specific warning.
WARNING: SEVER
Risk of injury due to sharp edge being present in the vicinity of the warning
label. Care should be taken when working in the vicinity of the designated
area.
WARNING: IRRITANT
Substances are present which can cause inflammation on immediate,
repeated or prolonged contact with mucus membranes or skin.
WARNING: FLAMMABLE MATERIAL
Flammable substances are present. No smoking or naked flames. Keep
away from all sources of ignition. Avoid static discharges.
WARNINIG: MOVING PARTS
Moving parts are present in the vicinity of the warning label, these parts
have the potential to cause injury. Machine covers should not be removed.
WARNING: RADIATION
Risk of injury to the eyes due to laser light being present in the vicinity of
the label. Do not look at the light source or direct reflections from a
surface.
WARNING: ELECTRICAL HAZARD
High electrical voltage is present that could cause injury or death. Do not
remove protective covers from equipment housings or override protective
devices.
WARNING: HOT SURFACE
Indicates that the marked item may be hot and should not be touched
without taking care.
WARNING: MACHINE COVERS
In order to protect personnel and to prevent damage to the machine,
covers are fitted to the machine frame. These panels must only be
removed by suitably qualified personnel.
SAFETY FEATURES
MACHINE SAFETY FEATURES
Chapter Issue 6 Oct 06 Technical Reference Manual 2.3
SEMI Labelling The following table displays the SEMI labelling that may be applied to the
machine:
WARNING: STRONG MAGNETIC FIELD
A strong magnetic field exists in the vicinity of the camera linear motors.
These may represent a hazard to personnel or equipment.
WARNING: STRONG MAGNETIC FIELD
A strong magnetic field exists in the vicinity of the camera linear motors.
These may represent a serious hazard to people fitted with a pacemaker.
WARNING: STRONG MAGNETIC FIELD
A strong magnetic field exists in the vicinity of the camera linear motors
that represent a serious hazard to people fitted with metallic implants.
WARNING: STRONG MAGNETIC FIELD
A strong magnetic field exists in the vicinity of the camera linear motors
that may act upon ferrous objects whose movements could lead to per-
sonal injury and/or damage to the machine.
Warning Definition
Warning Definition Location
MOVING MECHANICAL PARTS
Removing this cover exposes moving
mechanical parts that have the potential
to cause serious injury. Disconnect and
lock out the system power before remov-
ing this cover. Refer to the Lockout
procedure at the end of this chapter.
GENERAL WARNING
Refer to the Operator manual or the front
of this chapter for a list of all warnings
and their definitions.
Left Hand Upper Side
Panel
WARNING
Part No. 185499Part No. 185499
Moving Mechanical PartsMoving
Mechanical Parts
Removing covers could result
in serious injury
Removing
covers could result
in
serious injury
Disconnect and lock out system power
before servicing refer to the
Technical Reference manual
Disconnect
and lock out system power
before
servicing refer to the
Technical
Reference manual
SAFETY FEATURES
MACHINE SAFETY FEATURES
2.4 Technical Reference Manual Chapter Issue 6 Oct 06
MOVING MECHANICAL PARTS
Removing this cover exposes moving
mechanical parts that have the potential
to cause serious injury. Disconnect and
lock out the system power before remov-
ing this cover. Refer to the Lockout
procedure at the end of this chapter.
STRONG MAGNETIC FIELD
A strong magnetic field exists in the
vicinity of the camera linear motors.
These may represent a serious hazard
to people fitted with a pacemaker.
GENERAL WARNING
Refer to the Operator manual or the front
of this chapter for a list of all warnings
and their definitions.
Right Hand Upper
Side Panel
POTENTIAL HAZARDS
Removing this cover may expose oper-
ators to parts that have the potential to
cause minor injury.
GENERAL WARNING
Refer to the Operator manual or the front
of this chapter for a list of all warnings
and their definitions.
Left Hand & Right
Hand Safety Covers
ELECTRO MECHANICAL HAZARDS
Removing this cover exposes electro-
mechanical parts that have the potential
to cause serious injury. This cover is
only to be removed by trained person-
nel.
GENERAL WARNING
Refer to the Operator manual or the front
of this chapter for a list of all warnings
and their definitions.
Front Cover
ELECTRO MECHANICAL HAZARDS
Removing this cover exposes electro-
mechanical parts that have the potential
to cause serious injury. Disconnect and
lock out the system power before remov-
ing this cover. Refer to the Lockout
procedure at the end of this chapter.
GENERAL WARNING
Refer to the Operator manual or the front
of this chapter for a list of all warnings
and their definitions.
Rear Cover
Warning Definition Location
WARNING
Moving Mechanical PartsMoving Mechanical Parts
Removing covers could result
in serious injury
Removing
covers could result
in
serious injury
Disconnect and lock out system power
before servicing
Disconnect
and lock out system power
before
servicing
Part No. 185499Part
No. 185499
Refer to the Operator and
Technical Reference manuals
Refer
to the Operator and
Technical
Reference manuals
A strong magnetic field exists in the
vicinity of the linear motors
A strong
magnetic field exists in the
vicinity
of the linear motors
Electro Mechanical HazardsElectro
Mechanical Hazards
This may represent a serious hazard
to people fitted with a pacemaker
This
may represent a serious hazard
to
people fitted with a pacemaker
Potential HazardsPotential Hazards
Removing cover may expose
operators to minor injury
Removing
cover may expose
operators
to minor injury
Refer to the Operator manualRefer
to the Operator manual
CAUTION
Part No. 185499Part No. 185499
Electro Mechanical HazardsElectro Mechanical Hazards
Removing cover could result
in serious injury
Removing
cover could result
in
serious injury
Only to be removed by
trained personnel
Only
to be removed by
trained
personnel
WARNING
Part No. 185499Part No. 185499
WARNING
Part No. 185499Part No. 185499
Electro Mechanical HazardsElectro Mechanical Hazards
Removing cover could result
in serious injury
Removing
cover could result
in
serious injury
Disconnect and lock out system
power before servicing refer to
the Technical Reference manual
Disconnect
and lock out system
power
before servicing refer to
the Technical
Reference manual
