KW1-M1 131-102 KW1-M1 132-001 KW1-M1 13A-000 No. Part No. Part Name Q'ty Remarks KW1-M1 131-102 CLAMP LEVER UNIT 1 KW1-M1 132-001 CLAMP LEVER ASSY 1 KW1-M1 13A-000 CLANK ARM ASSY 1 1 2 3 4 K87-M1 13D-001 ARM 2 5 6 K…

100%1 / 88
KW1-M1540-010
KW1-M114A-000
KW1-M154S-000
No. Part No. Part Name Q'ty Remarks
KW1-M1540-010 TAPE GUIDE UNIT 1
KW1-M154S-000 TAPE GUIDE ASSY 1
KW1-M114A-000 HAND LEVER ASSY 1
1 KW1-M1177-000 MAIN ARM 1
2
3
KW1-M1543-010 SHUTTER PLATE
1
*Attention
4
KW1-M1144-010 SHUTTER GUIDE PIN
2
*Attention
5 KW1-M114N-000 GUIDE AXIS 1
6 KW1-M1345-010 LEAF SPRING 1 *Attention
7 KW1-M134T-001 LEAF SPRING 1
8
9 KW1-M116K-000 LEVER AXIS 1
10
11
12
13
14 K87-M111C-000
PLANE WASHER 2
15
K87-M1181-000
ROD CONNECT 1
16 K87-M1546-000 ADJUST PLATE 1
17
18 K87-M1184-000 CONNECT PIN 1
19 KW1-M1185-001 MULTI CYLINDER 1
20 KW1-M111L-001 BARB CONNECTOR 2
21 K87-M111M-000 GASKET 2
22 KW1-M11B1-000 AIR HOSE (70mm) 1
23
24 K87-M11BF-000 SCREW,FLAT HEAD+IB 2
25 K87-M1547-000 SCREW,TRUSS HEAD 2
26 K87-M1548-000 PLANE WASHER 2
27 K87-M53BS-000 SCREW,PAN HEAD+ 1
28 KW1-M11B6-000 BOLT,SOCKET HEAD SW 2
29 K87-M11B9-000 CIRCLIP E 1
KW1-1107
2
2
TAPE GUIDE & AIR CYLINDER Assy
CLA-823
CL-823(D type) / CLI-823(A type) 8mm-0603
*Attention: This parts need thread locker and training.
*Attention:
接着部品のため修理依頼を推奨します。
KW1-M1131-102
KW1-M1132-001
KW1-M113A-000
No. Part No. Part Name Q'ty Remarks
KW1-M1131-102 CLAMP LEVER UNIT 1
KW1-M1132-001 CLAMP LEVER ASSY 1
KW1-M113A-000 CLANK ARM ASSY 1
1
2
3
4 K87-M113D-001 ARM 2
5
6 K87-M113M-000 AXIS PIN 1
7 K87-M113L-100 CLAMP LEVER AXIS 1
8
9 K87-M113E-000 HINGE PIN 2 1
10 K87-M113H-000 PUSH PIN (L=10) 1
11 K87-M111V-000 SCREW,SET 1
12 K87-M111R-000 SCREW,SET 1
13 K87-M11D7-000 CIRCLIP E 2
KW1-0911
2
3

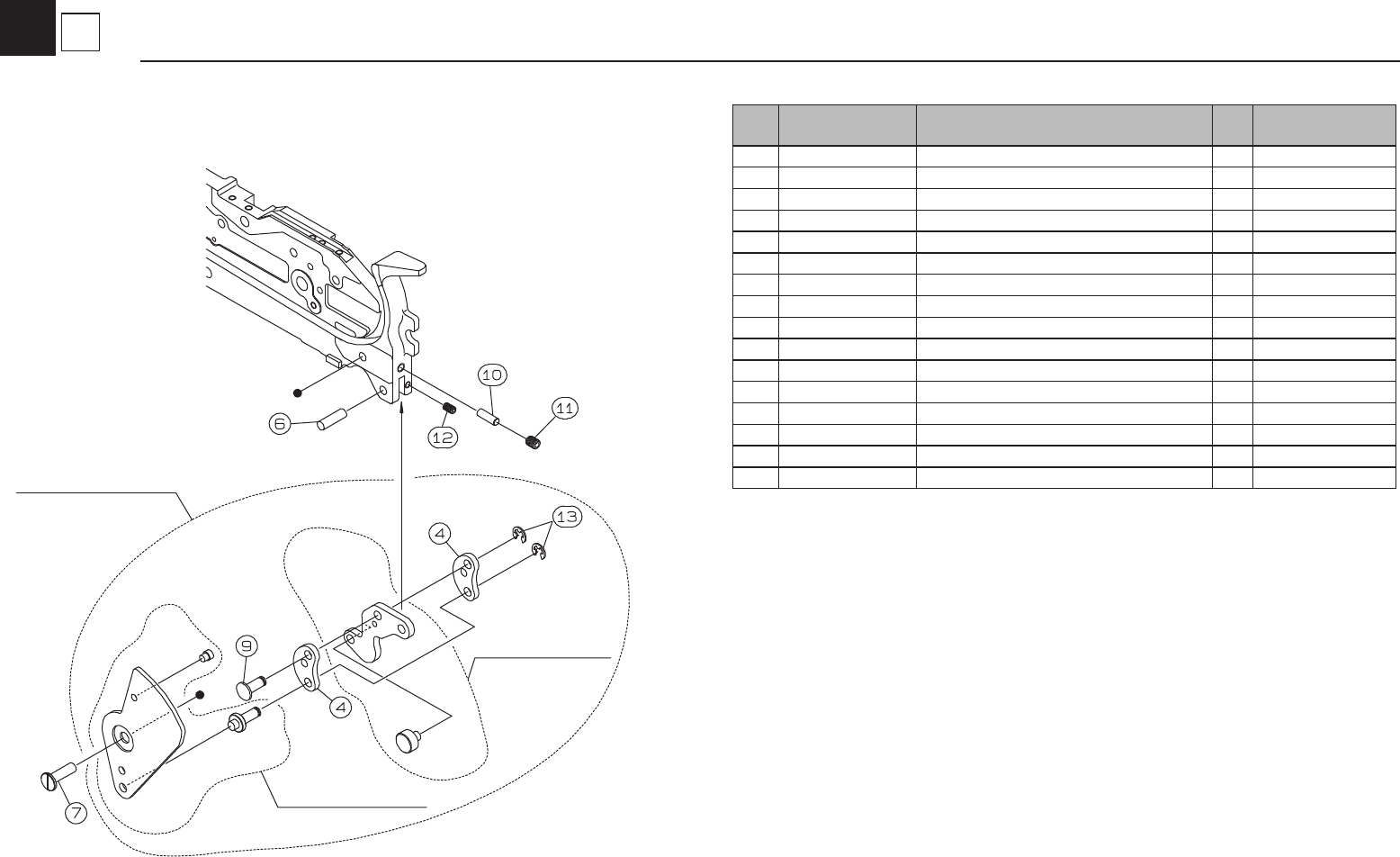

TOGGLE CLAMP Assy CLA-823
CL-84 ~ 82E (D type) / CLI-84 ~ 82E(A type) 8mm
Continued from
Page 2-1
KW1-M115D-000
KW1-M1150-000
No. Part No. Part Name Q'ty Remarks
KW1-M1150-000 Handle Lever Assy 1
KW1-M115D-000 Guide Pin Assy 1
1 KW1-M114L-000 Cover 1
2
3
4
5
6 KW1-M165L-100 Hold Arm (Green) 1
7 KW1-M115M-000 Hold Arm Axis 1
8
9 KW1-M116F-000 Lever Axis Pin 1
10
11 KW1-M116U-000 Roller 2 *Attention
12 KW1-M1165-000 Roller Axis 2 *Attention
13 KW1-M111T-000 Screw , Thin Head 3
KW1-0911
2
4

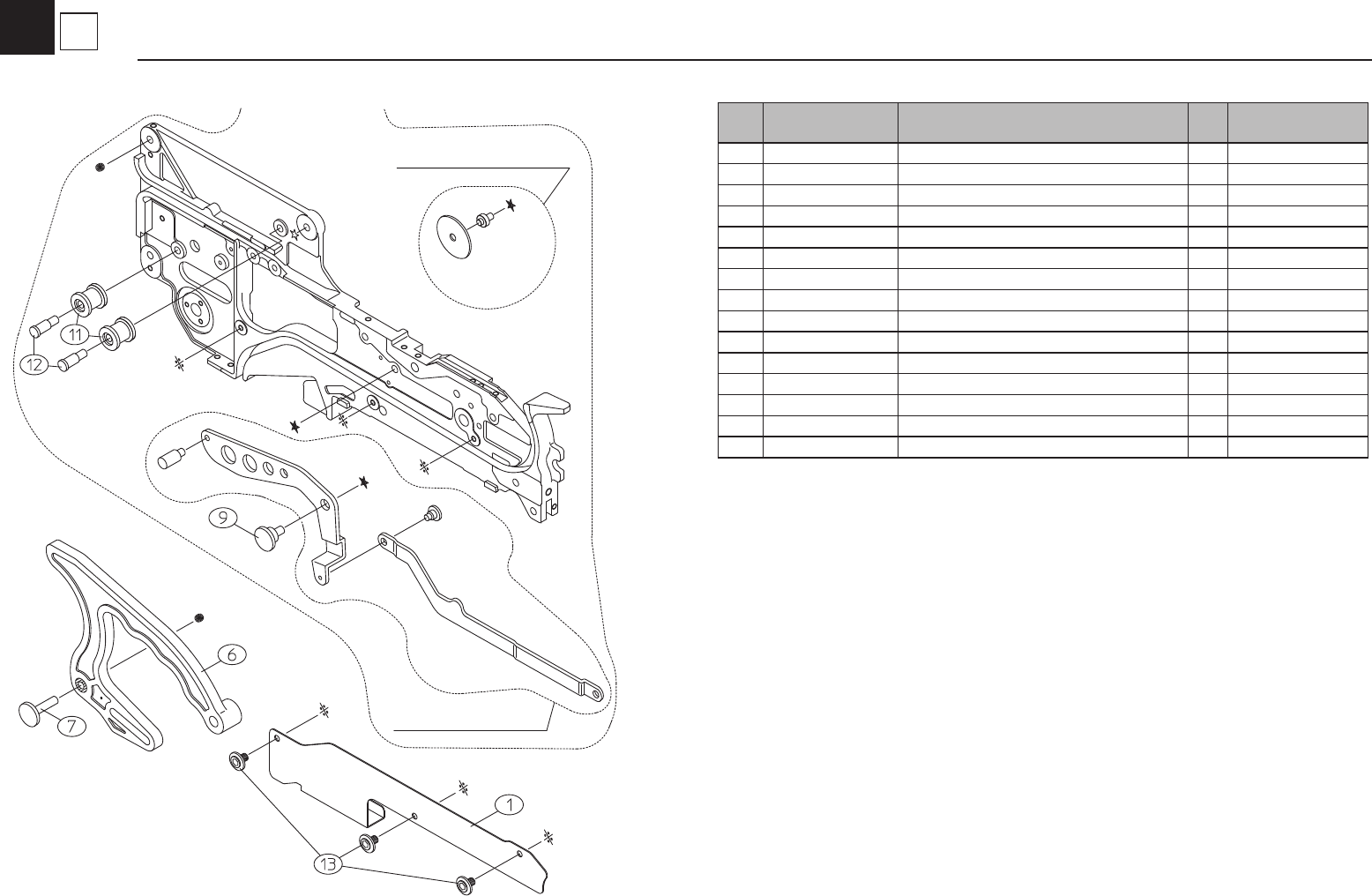

HOLD ARM & ROLLER,COVER Assy CLA-823
CL-823(C type) 8mm-0603-15inch
*Attention: This parts need press t and training.
*Attention:
圧入部品のため修理依頼を推奨します。
