KW1-M1 131-102 KW1-M1 132-001 KW1-M1 13A-000 No. Part No. Part Name Q'ty Remarks KW1-M1 131-102 CLAMP LEVER UNIT 1 KW1-M1 132-001 CLAMP LEVER ASSY 1 KW1-M1 13A-000 CLANK ARM ASSY 1 1 2 3 4 K87-M1 13D-001 ARM 2 5 6 K…

100%1 / 88
KW1-M174S-000
KW1-M1740-020
KW1-M114A-000
No. Part No. Part Name Q'ty Remarks
KW1-M1740-020 TAPE GUIDE UNIT 1
KW1-M174S-000 TAPE GUIDE ASSY 1
KW1-M114A-000 HAND LEVER ASSY 1
1 KW1-M1177-000 MAIN ARM 1
2
3 KW1-M1343-010 SHUTTER PLATE 1 *Attention
4
KW1-M1144-010 SHUTTER GUIDE PIN
2 *Attention
5
KW1-M114N-000 GUIDE AXIS
1
6
KW1-M1345-010
LEAF SPRING 1
*Attention
7 KW1-M116K-000 LEVER AXIS 1
8
9
10
11
12 K87-M111C-000 PLANE WASHER 2
13
K87-M1181-000 ROD CONNECT 1
14
15
16
K87-M1184-000 CONNECT PIN
1
17
KW1-M1185-001
MULTI CYLINDER 1
18 KW1-M111L-001 BARB CONNECTOR STRAIGHT 2
19 K87-M111M-000 GASKET 2
20 KW1-M11B1-000 AIR HOSE(70mm) 1
21 K87-M111P-000 SCREW,FLAT HEAD+ 2 *Attention
22 K87-M11BF-000 SCREW,FLAT HEAD+ 2
23 KW1-M11B6-000 S.W.SCREW,CAPBOLT HEAD 2
24 K87-M11B9-000 CIRCLIP E 1
KW1-1107
10
2

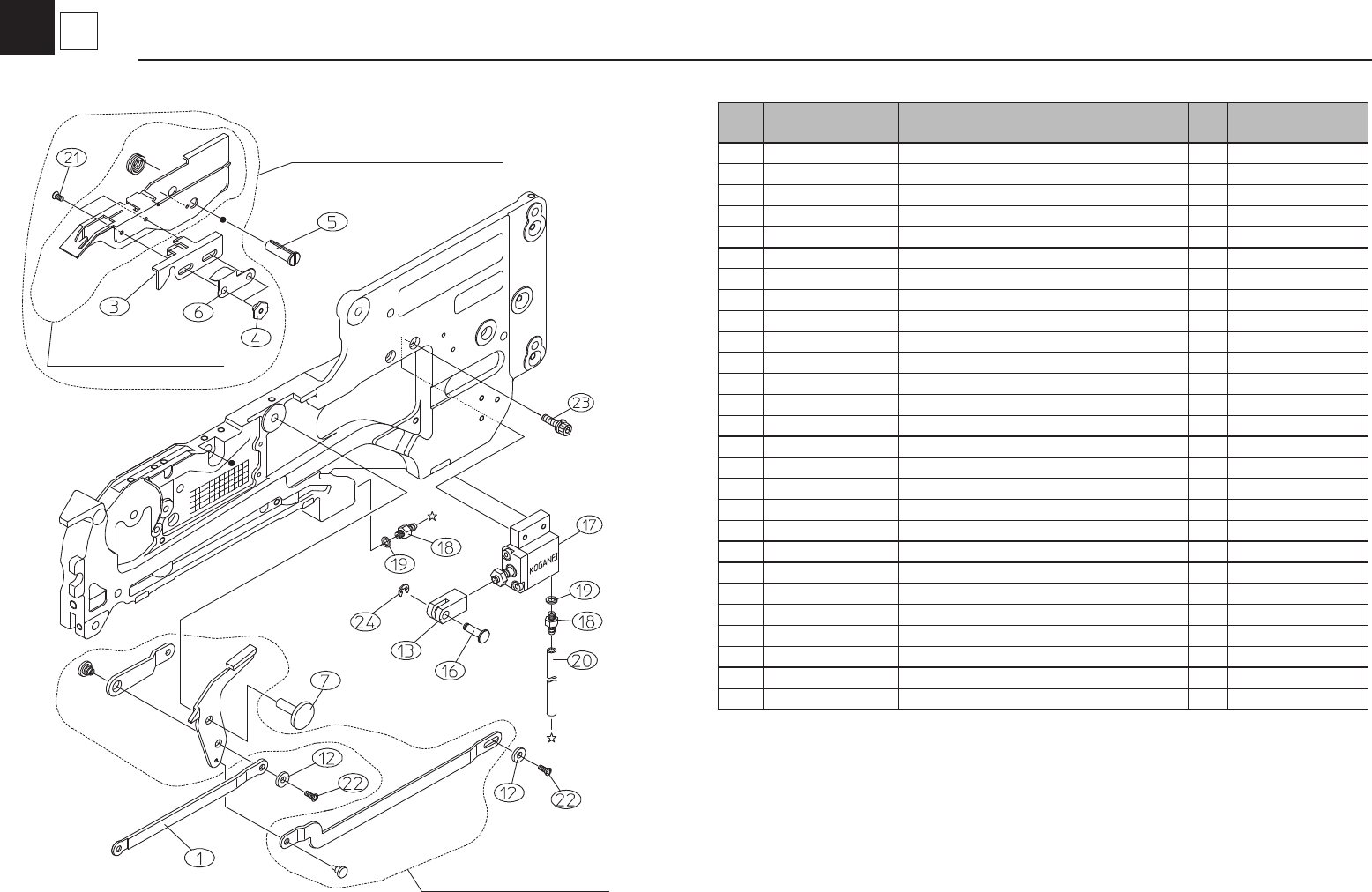

TAPE GUIDE & AIR CYLINDER Assy
CLY-82E
CL&CLI-84E(D type) / CL&CLI-82E(A type) 8mm-EMBOSS
*Attention: This parts need thread locker and training.
*Attention:
接着部品のため修理依頼を推奨します。
KW1-M1131-102
KW1-M1132-001
KW1-M113A-000
No. Part No. Part Name Q'ty Remarks
KW1-M1131-102 CLAMP LEVER UNIT 1
KW1-M1132-001 CLAMP LEVER ASSY 1
KW1-M113A-000 CLANK ARM ASSY 1
1
2
3
4 K87-M113D-001 ARM 2
5
6 K87-M113M-000 AXIS PIN 1
7 K87-M113L-100 CLAMP LEVER AXIS 1
8
9 K87-M113E-000 HINGE PIN 2 1
10 K87-M113H-000 PUSH PIN (L=10) 1
11 K87-M111V-000 SCREW,SET 1
12 K87-M111R-000 SCREW,SET 1
13 K87-M11D7-000 CIRCLIP E 2
KW1-0911
10
3
TOGGLE CLAMP Assy CLY-82E
CL-84 ~ 82E (D type) / CLI-84 ~ 82E(A type) 8mm
Continued from
Page 10-1
KW1-M115D-000
KW1-M1150-000
No. Part No. Part Name Q'ty Remarks
KW1-M1150-000 Handle Lever Assy 1
KW1-M115D-000 Guide Pin Assy 1
1 KW1-M114L-000 Cover 1
2
3
4
5
6 KW1-M1B5L-000 Hold Arm (Blue)+Black Tube 1
7 KW1-M115M-000 Hold Arm Axis 1
8
9 KW1-M116F-000 Lever Axis Pin 1
10 Flange B 1
11
12 KW1-M1165-000 Roller Axis 2 *Attention
13 KW1-M111T-000 Screw,Thin Head 3
KW1-0911
10
4
HOLD ARM & ROLLER,COVER Assy CLY-82E
CL-82E(D type) 8mm-EMBOSS-7inch
*Attention: This parts need press t and training.
*Attention:
圧入部品のため修理依頼を推奨します。
