KW1-M1 16D-000 KW1-M1 19L-000 KT -A08-1 170-D KW1-M1 192-100 KW1-M1 191-100 Continued from Page 1-1 LG4-M1A8D-000 No. Part No. Part Name Q'ty Remarks Change Compati. Roller Kit KW1-M1 16D-000 T ension Lever Assy 1 K…
Continued from
Page 1-1
KW1-M1150-000
KW1-M115D-000
No. Part No. Part Name Q'ty Remarks
KW1-M1150-000 Handle Lever Assy 1
KW1-M115D-000 Guide Pin Assy 1
1 KW1-M114L-000 Cover 1
2
3
4
5
6 KW1-M1A5L-000 Hold Arm (Green)+Yellow Tube 1
7 KW1-M115M-000 Hold Arm Axis 1
8
9 KW1-M116F-000 Lever Axis Pin 1
10
11 KW1-M116U-000 Roller 2 *Attention
12 KW1-M1165-000 Roller Axis 2 *Attention
13 KW1-M111T-000 Screw , Thin Head 3
KW1-0911
1
4
HOLD ARM & ROLLER,COVER Assy CLA-822
CL-822(D type) 8mm-2P(0402)-15inch
*Attention: This parts need press t and training.
*Attention:
圧入部品のため修理依頼を推奨します。
KW1-M116D-000
KW1-M119L-000
KT-A08-1170-D
KW1-M1192-100
KW1-M1191-100
Continued from
Page 1-1
LG4-M1A8D-000
No. Part No. Part Name Q'ty Remarks Change Compati.
Roller Kit
KW1-M116D-000
Tension Lever Assy
1
KW1-M119L-000 Idle Roller Assy
1
KW1-M1192-001 Indentation Lever Assy
1
Can not sell
KW1-M1192-100 Indentation Lever Assy
1
(2009/7/23) NG
KW1-M119F-000 Drive Roller Assy
1
Can not sell
LG4-M1A8D-000 Drive Roller Assy
1
(2009/7/23) NG
KW1-M1191-001 Drive Roller Unit
1
Can not sell
KW1-M1191-100 Drive Roller Unit
1
(2009/7/23) OK
KW1-M1191-A00 Drive Roller Unit 40Pes
40
(2009/7/23) OK
1
KW1-M116J-000 Metal Shaft
1
2
3
KW1-M116F-000 Lever Axis Pin
1
*Attention
4
5
KW1-M159P-000 Spring
1
6
KW1-M119R-000 Collar
1
7
8
9
10
KW1-M119K-000 Spring
1
11
12
13
14
KW1-M11A1-011 Lower Guide Plate , R
1
15
KW1-M11A3-001 Lower Guide Plate , L
1
16
K87-M117B-000 Plane Washer
1
17
18
19
K87-M11BA-000 Screw,Flat Head
3
20
K87-M11BB-000 Screw,Flat Head+IB
1
21
K87-M21BB-000 Screw,Truss Head+
1
21-1
K87-M55BG-000 Screw,Truss Head+
1
(2008/7/8) OK
22
K87-M111N-000 Screw,Pan Head+
2
23
K87-M53BS-000 Screw,Pan Head+
2
24
K87-M1115-000 Circular Rivet
1
*Attention
KW1-1011
1
5
ROLL UP Unit
CLA-822
CL-823(D type) 8mm-2P(0603)
*Attention: This parts need press t and training.
*Attention:
圧入部品のため修理依頼を推奨します。
S027-M0489-60
KW1-M12D1-102
KW1-M12DA-100

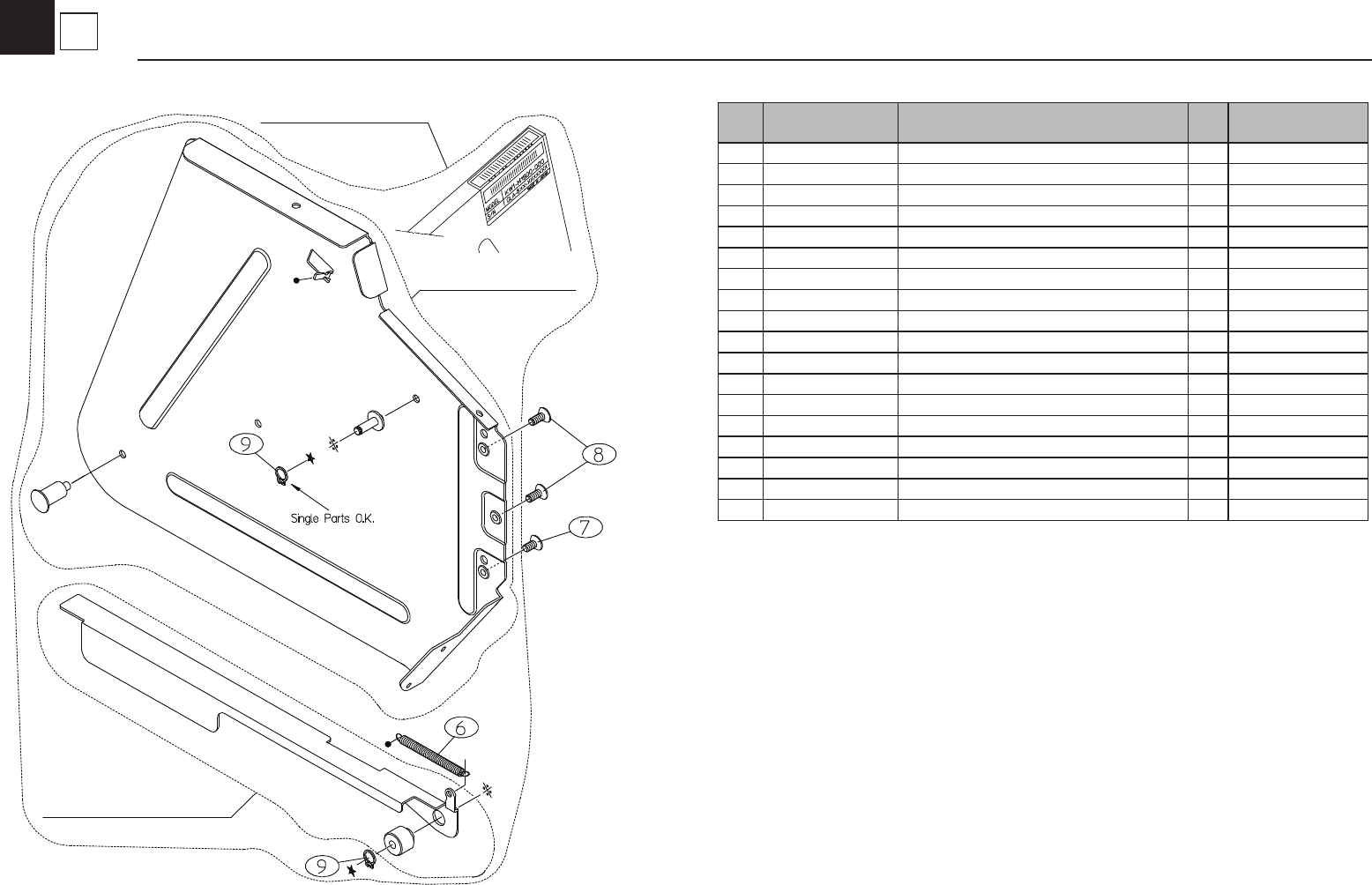

No. Part No. Part Name Q'ty Remarks
KW1-M12DA-100 Tension Lever Assy 1
S027-M0489-60 CL-8-15 Reel Holder Unit 1
KW1-M12D1-102 Reel Plate Assy 1
1
2
3
4
5
6
KW1-M12DL-000 Spring
1
7 KW1-M111S-000 Screw,Flat Head+ 1
8 K87-M111S-000 Screw,Flat Head+ 2
9 K87-M11D7-200 Circlip C 1
10
11
12
13
14
15
KW1-1107
1
6
REEL PLATE Assy(15in)
CLA-822
CL-84~82E(D type) 8mm-15inch
