BLUE UNDER SCREEN CLEANER MODULE
OVERVIEW
Chapter Issue 5, May 15 Technical Reference Manual 18.3
following are available from ASM:
NOTE
The following solvents MUST NOT be used in the under screen cleaner unit,
however, this list is not complete and does not mean that any solvent not
mentioned is compatible, with ASM machines.
• Rosstech 106 FE
• Rosstech 162 ND
• Acetone
Vacuum Filtration The vacuum filtration unit extracts solvent fumes and draws excess print
material onto the paper.
Vacuum filtration is optional; the unit used is:
• VF35i Vacuum Filtration Unit
NOTE
For information on the removal and replacement of the filters, refer to the
Preventive Maintenance chapter of this manual.
Figure 18-6 Vacuum Option
Description 1 Litre 5 Litre 20 Litre
DEK-PRO 173483 173485 431093
DEK-PRO XF 431513 431514 -
Screen Cleaner Connection
Vacuum Connection
Telescopic Tube
Machine Mount
BLUE UNDER SCREEN CLEANER MODULE
OVERVIEW
18.4 Technical Reference Manual Chapter Issue 5, May 15
VF35i Vacuum
Filtration Unit
The onboard VF35i vacuum filtration unit is protected by two circuit breakers
on the front panel of the base unit. A 15A (for 115V) and an 8A (for 230V)
which can be reset by pressing the circuit breaker button covered by a clear
plastic protector. For safety, the voltage selector control knob is removed from
the switch and bolted to the fan housing. The VF35i vacuum filtration unit has
a three position mechanical air flow adjuster to regulate the air flow as follows:
• Maximum (full air flow)
• Medium (half air flow approximately)
• Minimum (15% of full air flow approximately)
BLUE UNDER SCREEN CLEANER MODULE
ELECTRICAL SCHEMATIC
Chapter Issue 5, May 15 Technical Reference Manual 18.5

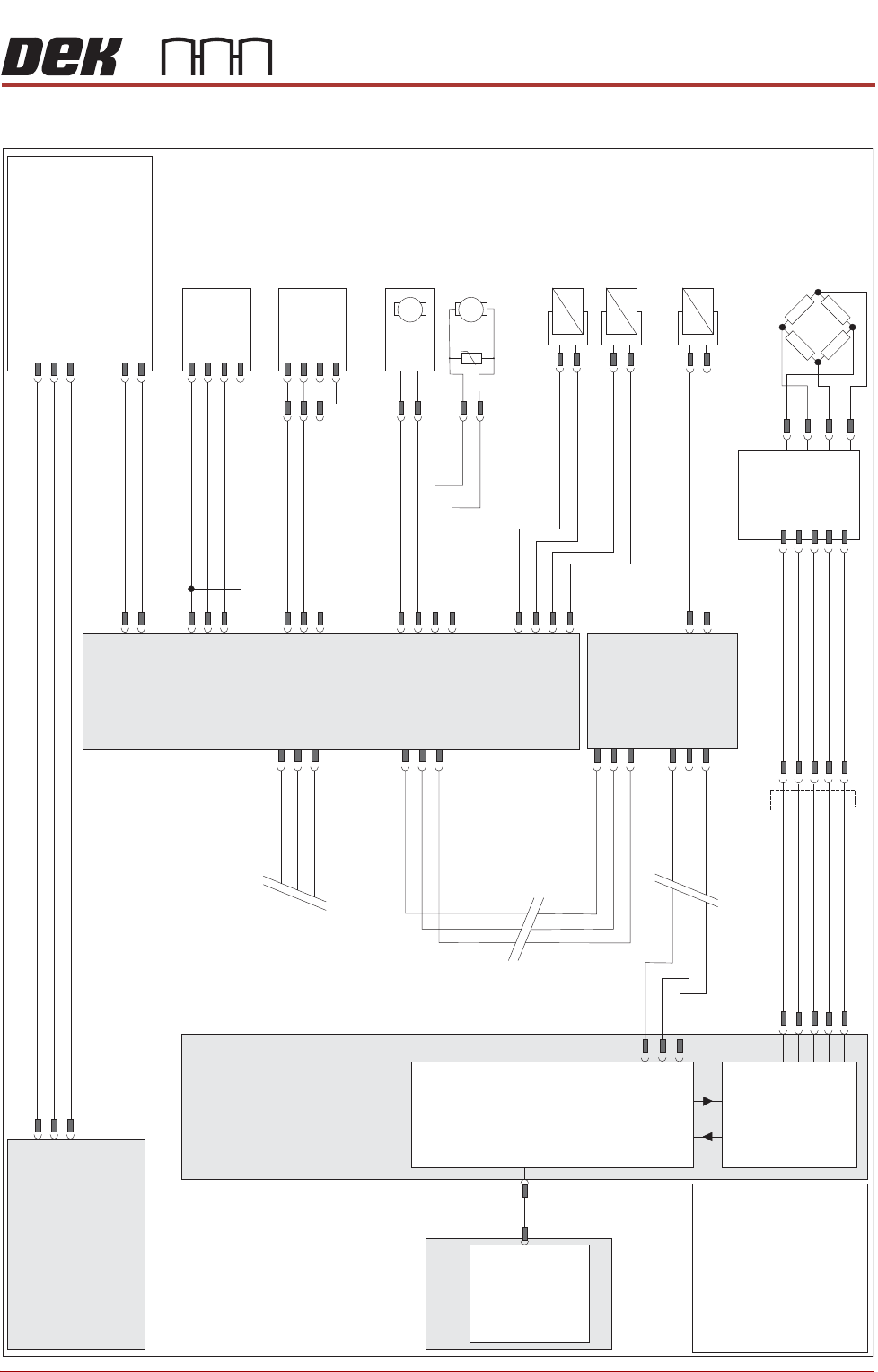

ELECTRICAL SCHEMATIC
M36 Machine
Control Enclosure
PC
Motherboard
USB
NextMove ES
(I/O Node
1)
1
2
4
CAN_H
CAN_L
CAN GND
M36PL35
16SK08
Cleaner
Squeegee Bar
16SOL08
DIG OUT 14
0V
I/Ps
CAN Bus
O/Ps
9SK63
1
4
3
6
7
9PL64
Solvent
Load Cell
9SE26
NextMove
Interface
M36PL09
1
2
10
12
14
8
7
5
1
AN IN0 -
AN IN0 +
0V USR
+12V
-12V
M37 Power Supply Module
Solvent
Level Amp
-V
+V
-IN
+IN
Vacuum Filtration Unit
L
N
E
Vac
Pump
Supply
Main Machine
I/O Node 2
N2SK2
CAN In
N2PL4
7
2
3
9
21
L
N
E
M37PL35
M35SK02
M35SK01
1
2
Screen Clean
I/O Node 4
N2SK3
7
2
3
9PL69
1
4
3
6
7
Level +
Ext Service Panel
AGND
0V USR
+12V
-12V
CAN Out
N4SK3
7
2
3
CAN Out
N4SK2
7
2
3
CAN In
1
2
N4PL6
8SK13
R/H Clean
Home Clamp
8SOL20
N4PL2
DIG OUT 0
0V
1
2
3
4
1
2
8SK11
L/H Clean
Home Clamp
8SOL19
1
2
DIG OUT 0
0V
N4PL5
1
2
3
4
DIG OUT 3
0V
+12V
Sig
0V
(L)
N4PL4
4
5
6
Screen Cleaner
Home
8SE10
DIG IN
2
DIG OUT 1
8SK76
8SK71
1
2
N4PL1
4
5
6
DIG IN
1
Paper Low/
Paper Usage
8SE18
Solvent
Pump
8M14
0V
24V
M
M
Paper Feed
Motor
8M5
8SK72
1
2
DIG OUT 2
0V
NOTE
The breaks in the CAN
Bus chain reflect that
additional I/O Nodes
may be fitted, refer to
Machine Control
chapter for the
complete CAN Bus
chain.
+12V
Sig
0V
(L)
N/C
8R1
20R
