SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD.
MDOC-SOFT50177
7/25
Execute at Pick Error
Select whether get Nozzle MACS again or
not, when pickup error occurred.
Use – Enabled, Not Use – Disabled
Use/Not Use Not Use
Execute at Emergency
Stop
Select whether get Nozzle MACS again or
not, when emergency stop.
When nozzle station exists the machine,
both [Emergency stop] and [Opening
Nozzle Station Sutter] are required.
Use – Enabled, Not Use – Disabled
Use/Not Use Not Use
Correct Limit X(mm)
Correct Limit Y(mm)
Input the limit correction value of Nozzle
MACS.
When Nozzle MACS correction value
exceeds the input value, it does not correct
by Nozzle MACS.
000.000–
999.999(mm)
X - 0.15(mm)
Y - 0.15(mm)
Nozzle Type and Database Number of the nozzle you want to use Nozzle MACS for are set on
the following dialog.
Fig.3.2 Select the nozzle type and setting the database number
3.2. Board data
To use Feeder MACS, Select “Automatic” on [Parts] - [Pick] - [Position Definition]. Feeder
MACS doesn’t work with “Teaching” or “Relative”.
Meanwhile, Nozzle MACS works with any of “Automatic”, “Teaching” and “Relative”.
Check the nozzle type to use
Nozzle MACS.
Input data
base number to use
Nozzle MACS.
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD.
MDOC-SOFT50177
8/25

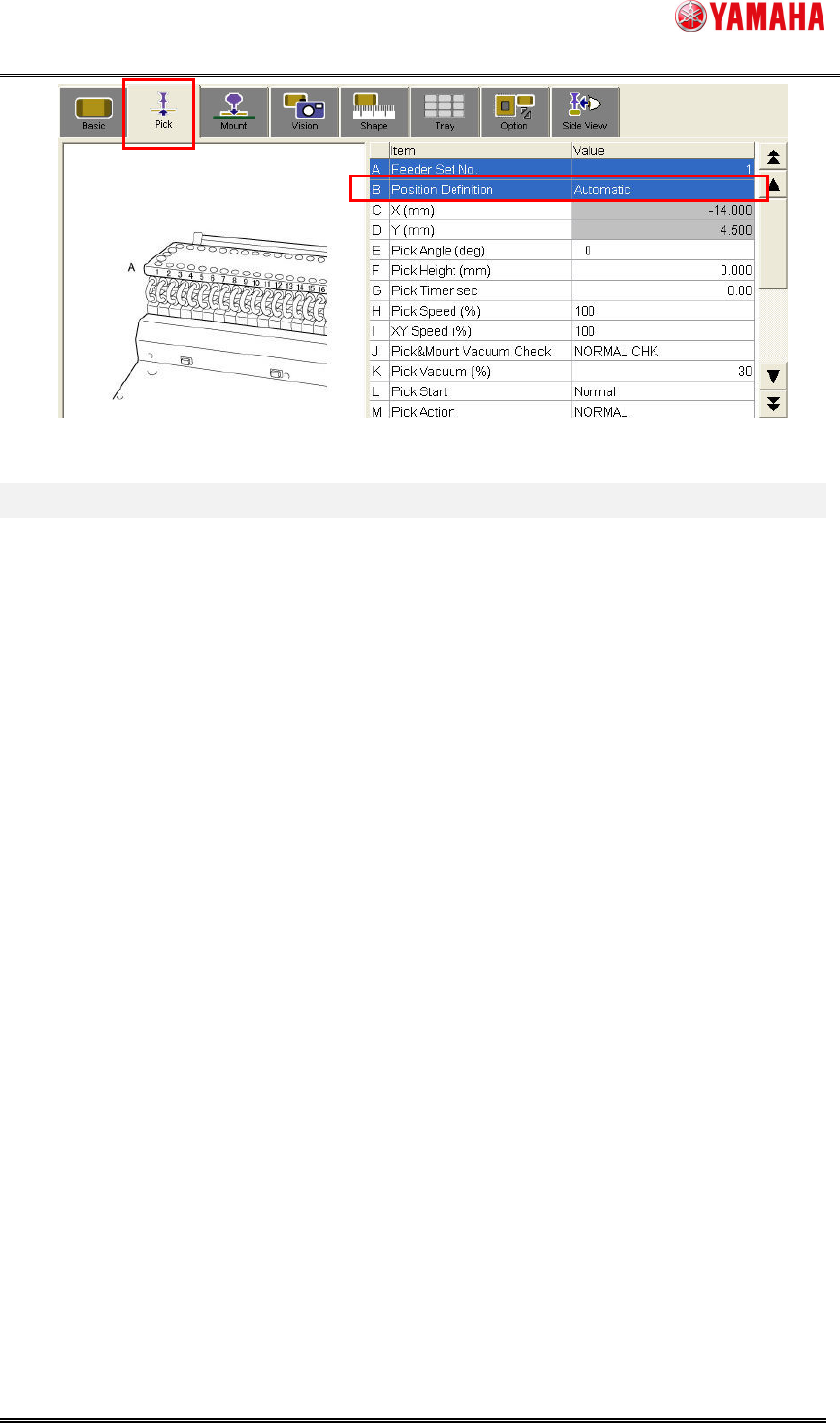

Fig.3.3 [Parts] - [Pick]
4. Details
4.1. Feeder MACS
4.1.1. Execution Conditions
To execute Feeder MACS, it is necessary to satisfy the following conditions.
- Satisfy the setting described at “3. Setting”
- The parts are used for placement, and the feeder is attached on the correct position.
- The target feeder type is 4mm or 8mm.
4.1.2. Execution Timing
Feeder MACS is executed on the following timing.
- During auto-running, just before a pickup action of parts which satisfy the execution
conditions.
- When the [Parts Adjust] - [Pick] button is pressed for parts which satisfy the execution
conditions.
- When the [Teach] - [Trace] button is pressed for parts which satisfy the execution
conditions.
(*1) Feeder MACS is executed a pickup group unit.
However, Feeder MACS during auto-running is NOT executed until the following operations.
- Feeder detached or attached
- Feeder cast clamped on or off
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD.
MDOC-SOFT50177
9/25
- Power OFF
- (*1) The time interval exceeds that on [Machine] - [Setting] - [Machine Data] -
[Precision] - [Pickup MACS] - [Feeder MACS] - [Retry interval (Minute)], and it’s going
for the next pick action.
4.1.3. Mark data for Feeder MACS
If you upgrade your machine to the later version including this function, you need to register
the special mark data for Feeder MACS. It is in board data enclosed in the installation CD.
In machines shipped with the later version the mark data is originally registered in the mark
database.
Board data for Feeder MACS is below.
[PCBDATA] - [(Each machine folder)] - [No1] - [PickUpMACS_DATA.ygx]
Refer to [6. Appendix] about setup.
Input the number registered in the mark database into [Machine] - [Setting] - [Machine Data]
- [Precision] - [Pickup MACS] - [Feeder MACS] - [8mm(4mm) Feeder Mark DB No.1-3].
Up to 3 mark data for 8mm feeder can be registered. It is used for Feeder MACS action in
order from 1. Set mark data to preferentially use to 1. When Feeder MACS action with the
mark data is failed, it is executed in order of 2 and 3. When it fails by all the registered mark
data, it is Feeder MACS execution error.
Loading of mark data is executed at the time of power on or board data loading.
4.1.4. Case of Feeder MACS failure
When Feeder MACS is failed, the pickup action without Feeder MACS correction is
executed.
In that case, Feeder MACS is not retried.
If you want to execute Feeder MACS again, please refer to “4.1.2. Execution Timing”.
When Feeder MACS is failed, auto-running is continued without any error message
displayed. However “Ea2298: Feeder MACS Error” or “Ea2299 Feeder MACS Correction
Value Error” is recorded in [MIS] - [Error log]. Refer to “4.4 Error Message” for more details.
When you want to stop and display error message at a Feeder MACS failure, please refer to “3.
Setting”.
