HW-T4-44_50F_PCBU.pdf - 第8页

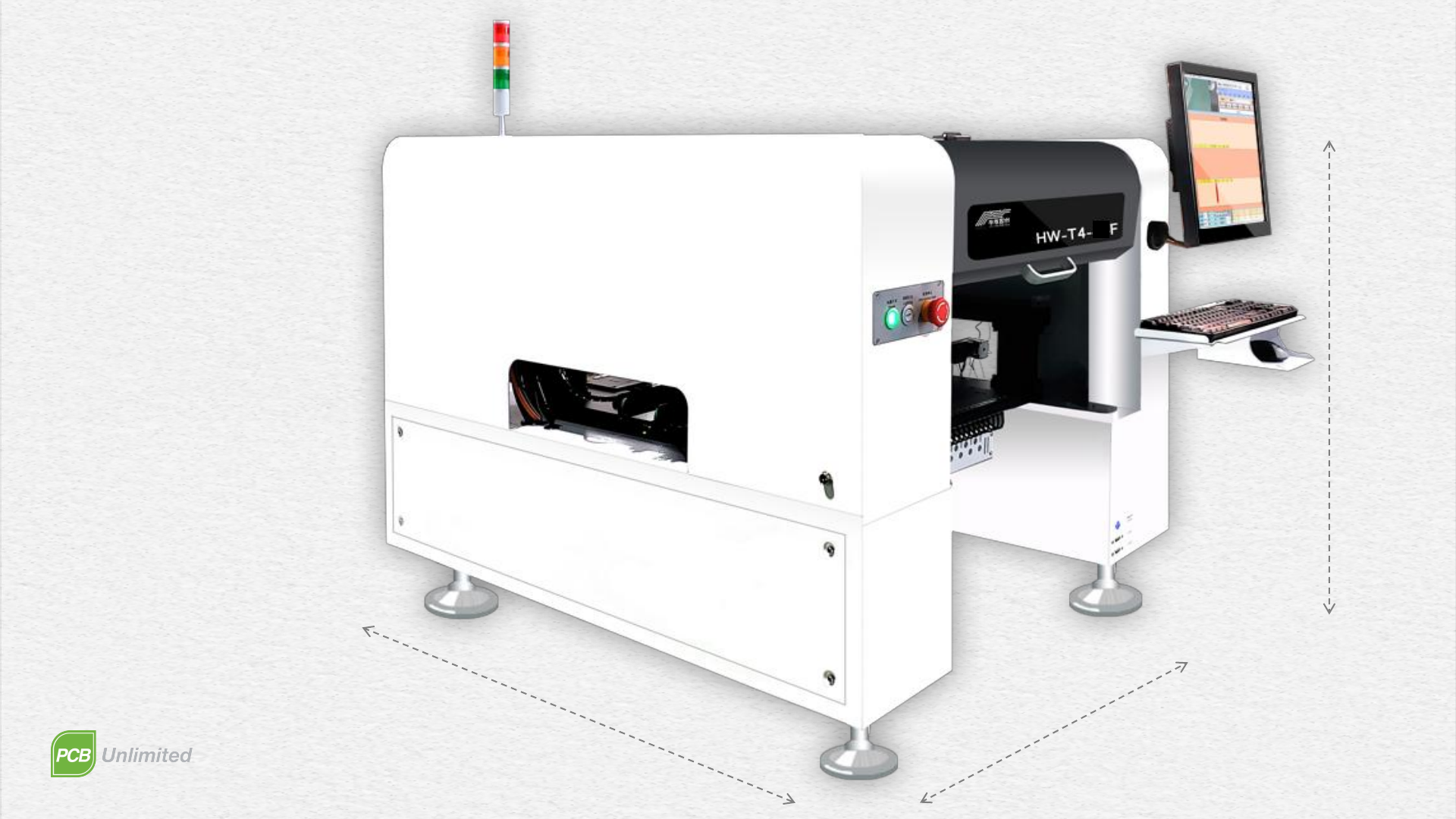

1200mm 900mm 900mm Desk Machine 50 Dimension of the Machin e
50
Warning Ligh
Housing
防护罩
Desk Machine
Structure
of the Machine
External
Width Adjustable Tracks
Electric Control Box
Heavy Load Anchor with Reinforced Piers
Emergency stop knob
Power switch
Keyboard & Mouse
USB interfaces
Computer switch
Feeder Slots
1200mm
900mm
900mm
Desk Machine
50
Dimension
of the Machine
1.Housing 2.Placement Heads 3.Pneumatic Support Bar 4.Safety shield 5.Flexible Silent Cable Carrier
6.Feeder Slots 7.Servo Motor of Y Axis 8.Ground Ball Screw of Y Axis 9.Servo Motor of X Axis 10.Linear
Motion Guide of Y Axis 11.Linear Motion Guide of X Axis 12.Ground ball screw of X axis 13. 5MP HD Camera
14.1MP Fast HD Camera 15.Waiting Area 16. Mounting Area 17. Exiting Area
13
20
1
19
4
16
17 18
2
6
7
11
10
9
8
14
3
12
15
Structure
of the Machine
Internal
