COVERS PRINTER COVERS Chapter Issue 10, Jul 16 Technical Reference Manual 3.15 Upper Side Panels T o remove an upper side p anel, carry out the following: 1. Lift the sliding cover . 2. Lift the rear printhea d cover . 3…
COVERS
PRINTER COVERS
3.14 Technical Reference Manual Chapter Issue 10, Jul 16

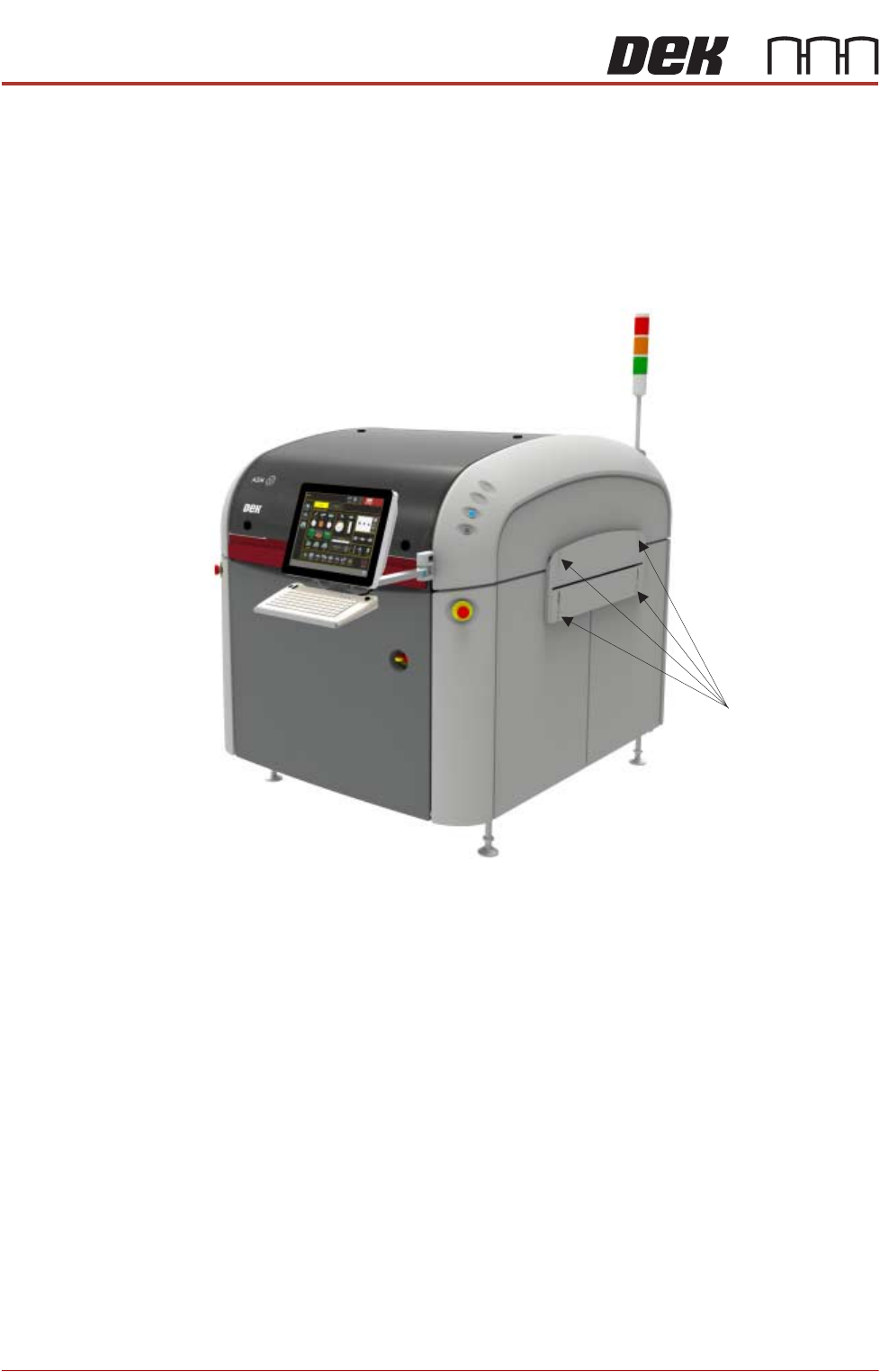

Safety Covers Safety covers are fitted to the side panels to protect personnel from inadvertent
access to the product entry/exit ports.
NOTE
The lower section of the safety panel can be adjusted to accommodate the
thickness of the product.
To remove the safety covers, remove the four securing screws and washers;
remove the cover.
Securing Screws
COVERS
PRINTER COVERS
Chapter Issue 10, Jul 16 Technical Reference Manual 3.15

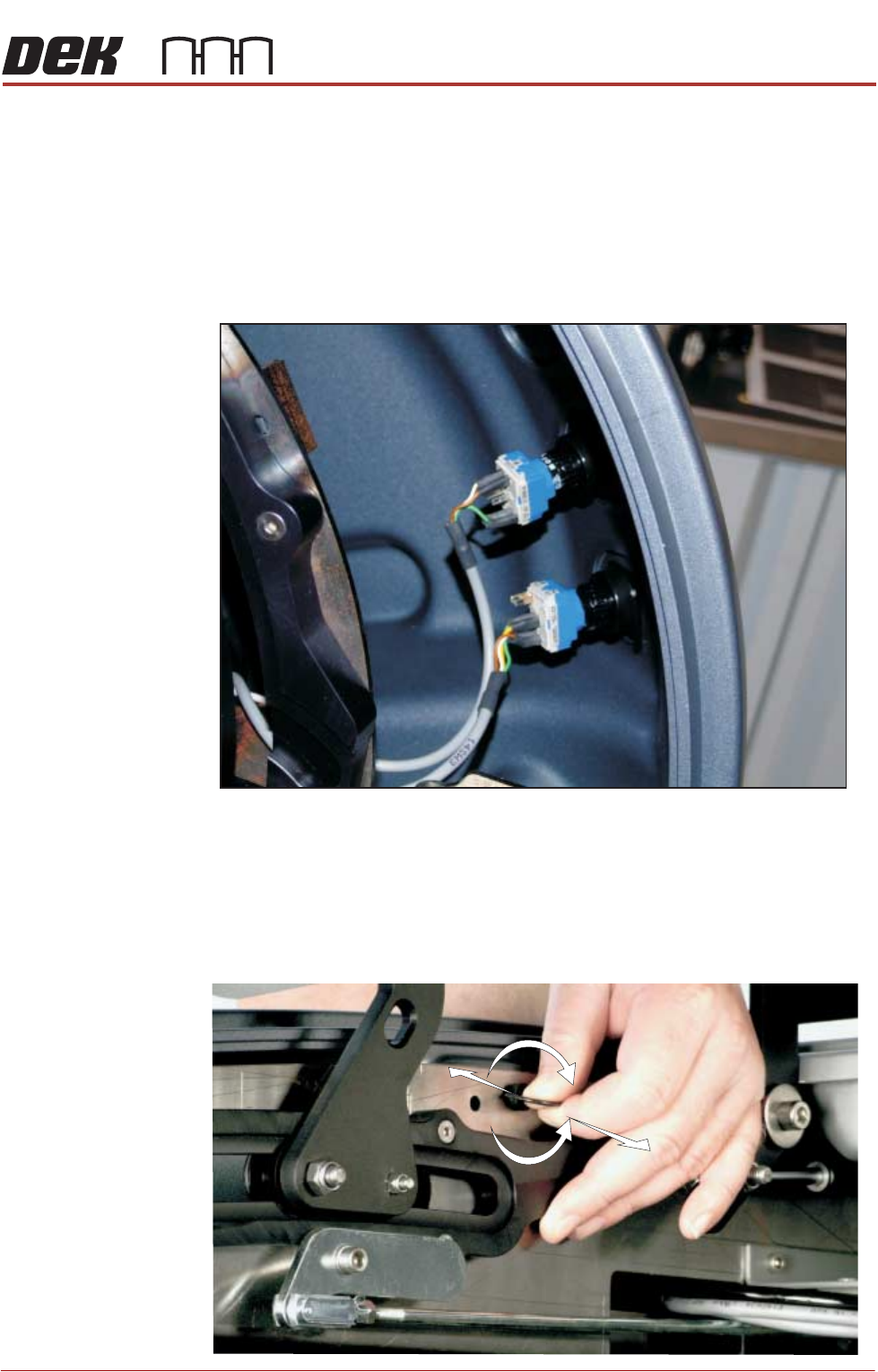

Upper Side Panels To remove an upper side panel, carry out the following:
1. Lift the sliding cover.
2. Lift the rear printhead cover.
3. Remove the safety cover.
4. At the front of the upper side panel, remove the appropriate upper panel
switch contact blocks (System, Jog or Internal light.) The blocks are located
at the rear of the switch bezel.
5. The contact block can be separated from the bezel, (hold the body part to
remove the contact blocks, not the switch wires) by pulling it out of the bezel.
When refitting, the contact body is aligned with the bezel.
6. Release the quarter-turn ring latch fastener, located internally at the top front
of the cover.
Switches (System, Jog)
+
-
COVERS
PRINTER COVERS
3.16 Technical Reference Manual Chapter Issue 10, Jul 16

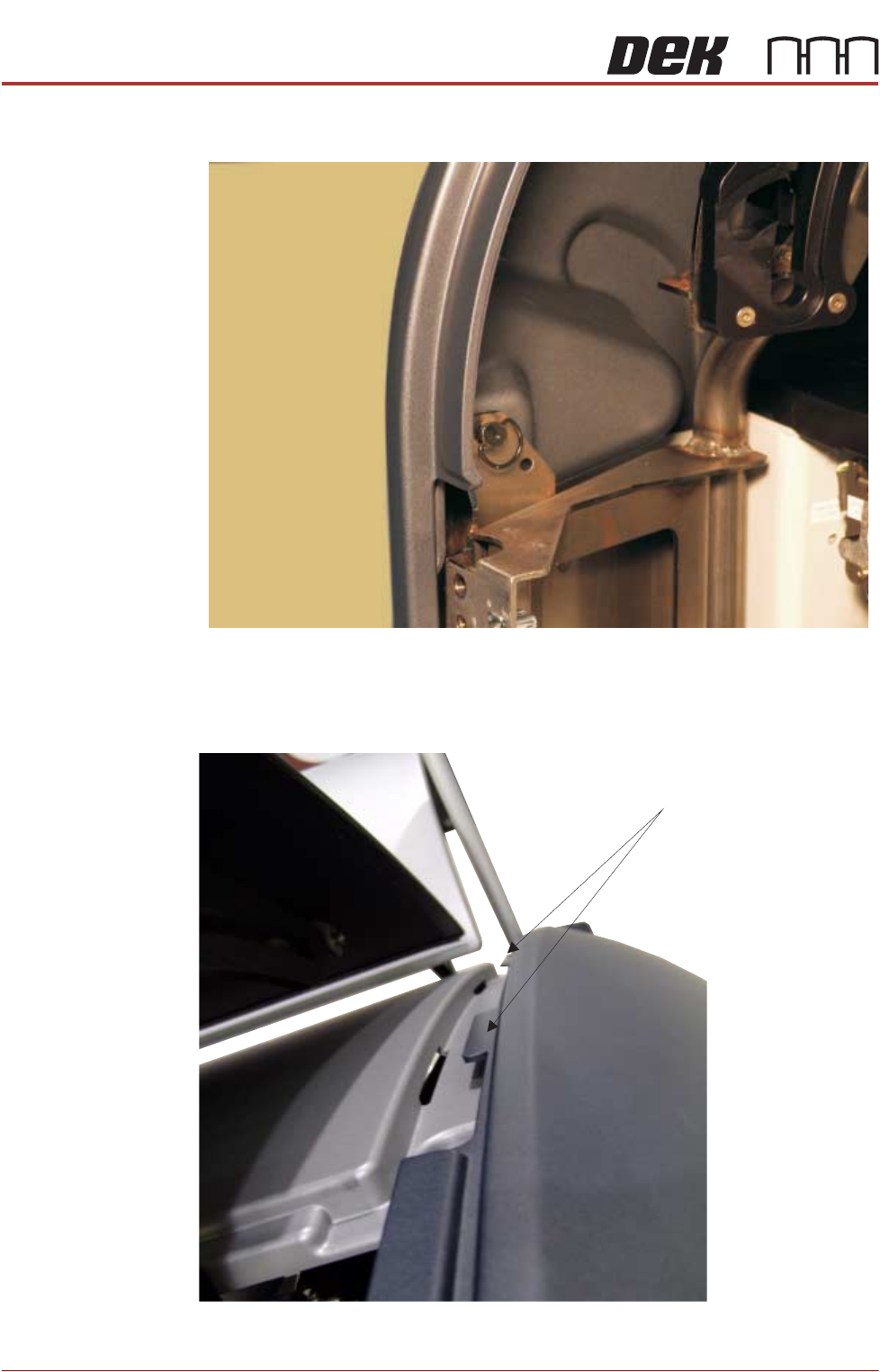

7. Release the front and rear quarter-turn ring latches located above the front
and rear corner panels respectively.
8. Pull the top edge of the cover out to release the locating tabs from the top
edge.
Quarter-Turn Ring Fastener
Panel Locating Tabs
