Chapter Issue 5 May 03 Installation Manual 8.3
6. Highlight sqy1.qcf file and select Open.
7. In the Record Filters Box, select sqy1 file and select O.K.
INFINITY
0$&+,1(3(5)250$1&(
0$&+,1(&$3$%,/,7<
8.4 Installation Manual Chapter Issue 5 May 03
8. Select Statistics, Cpk - Process Capability.
9. Highlight the required dimensions to output and select O.K.
INFINITY
0$&+,1(3(5)250$1&(
0$&+,1(&$3$%,/,7<
Chapter Issue 5 May 03 Installation Manual 8.5

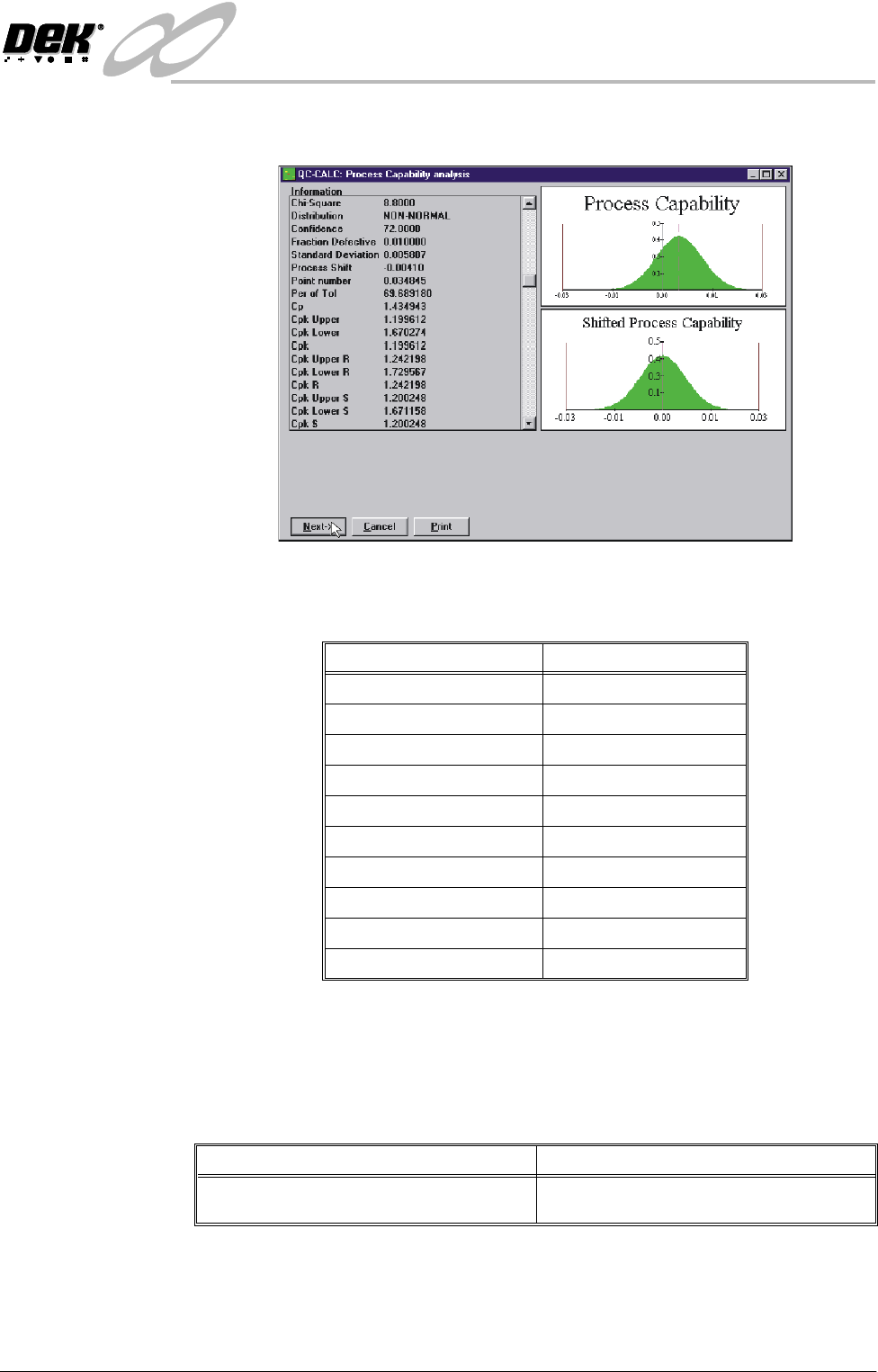

10. View the Cp/Cpk values for the dimension illustrated ensuring the values are
within the specification. Select Next to view the further dimensions.
11. Repeat Steps 4 - 10 for filter group sqy2.qcf.
12. Record the following information in Section 20 of the Installation Checklist:
NOTE
On occasions no Cp/Cpk values are displayed for pressure and speeds due to
the small size of the error.
Virus Check
To perform an anti-virus check using a laptop computer carry out the following:
1. On the DEK machine, terminate the DEK program.
2. Connect the laptop computer to the DEK machine using a Point to Point
network cable.
Detail Specification
X Alignment (Front) ≥Cp/Cpk 2.0
X Alignment (Rear) ≥Cp/Cpk 2.0
Y Alignment (Front) ≥Cp/Cpk 2.0
Y Alignment (Rear) ≥Cp/Cpk 2.0
θ Alignment (Front) ≥Cp/Cpk 2.0
θ Alignment (Rear) ≥Cp/Cpk 2.0
Front Pressure (See Note) ≥Cp/Cpk 2.0
Rear Pressure (See Note) ≥Cp/Cpk 2.0
Front Print Speed (See Note) ≥Cp/Cpk 2.0
Rear Print Speed (See Note) ≥Cp/Cpk 2.0
Detail Complete
Perform anti-virus check using the latest ver-
sion of virus checking software.
