INFINITY 0$&+,1 (3(5)250$1 &( 0$&+,1 (&$3$%,/,7< Chapter Issue 5 May 03 Instal lation M anual 8.5 10. V iew the Cp/Cpk values for the dimension illust rated ens uring the values are within t he speci…
INFINITY
0$&+,1(3(5)250$1&(
0$&+,1(&$3$%,/,7<
8.4 Installation Manual Chapter Issue 5 May 03
8. Select Statistics, Cpk - Process Capability.
9. Highlight the required dimensions to output and select O.K.
INFINITY
0$&+,1(3(5)250$1&(
0$&+,1(&$3$%,/,7<
Chapter Issue 5 May 03 Installation Manual 8.5
10. View the Cp/Cpk values for the dimension illustrated ensuring the values are
within the specification. Select Next to view the further dimensions.
11. Repeat Steps 4 - 10 for filter group sqy2.qcf.
12. Record the following information in Section 20 of the Installation Checklist:
NOTE
On occasions no Cp/Cpk values are displayed for pressure and speeds due to
the small size of the error.
Virus Check
To perform an anti-virus check using a laptop computer carry out the following:
1. On the DEK machine, terminate the DEK program.
2. Connect the laptop computer to the DEK machine using a Point to Point
network cable.
Detail Specification
X Alignment (Front) ≥Cp/Cpk 2.0
X Alignment (Rear) ≥Cp/Cpk 2.0
Y Alignment (Front) ≥Cp/Cpk 2.0
Y Alignment (Rear) ≥Cp/Cpk 2.0
θ Alignment (Front) ≥Cp/Cpk 2.0
θ Alignment (Rear) ≥Cp/Cpk 2.0
Front Pressure (See Note) ≥Cp/Cpk 2.0
Rear Pressure (See Note) ≥Cp/Cpk 2.0
Front Print Speed (See Note) ≥Cp/Cpk 2.0
Rear Print Speed (See Note) ≥Cp/Cpk 2.0
Detail Complete
Perform anti-virus check using the latest ver-
sion of virus checking software.
INFINITY
0$&+,1(3(5)250$1&(
0$&+,1(&$3$%,/,7<
8.6 Installation Manual Chapter Issue 5 May 03
3. Log in locally on the laptop computer.

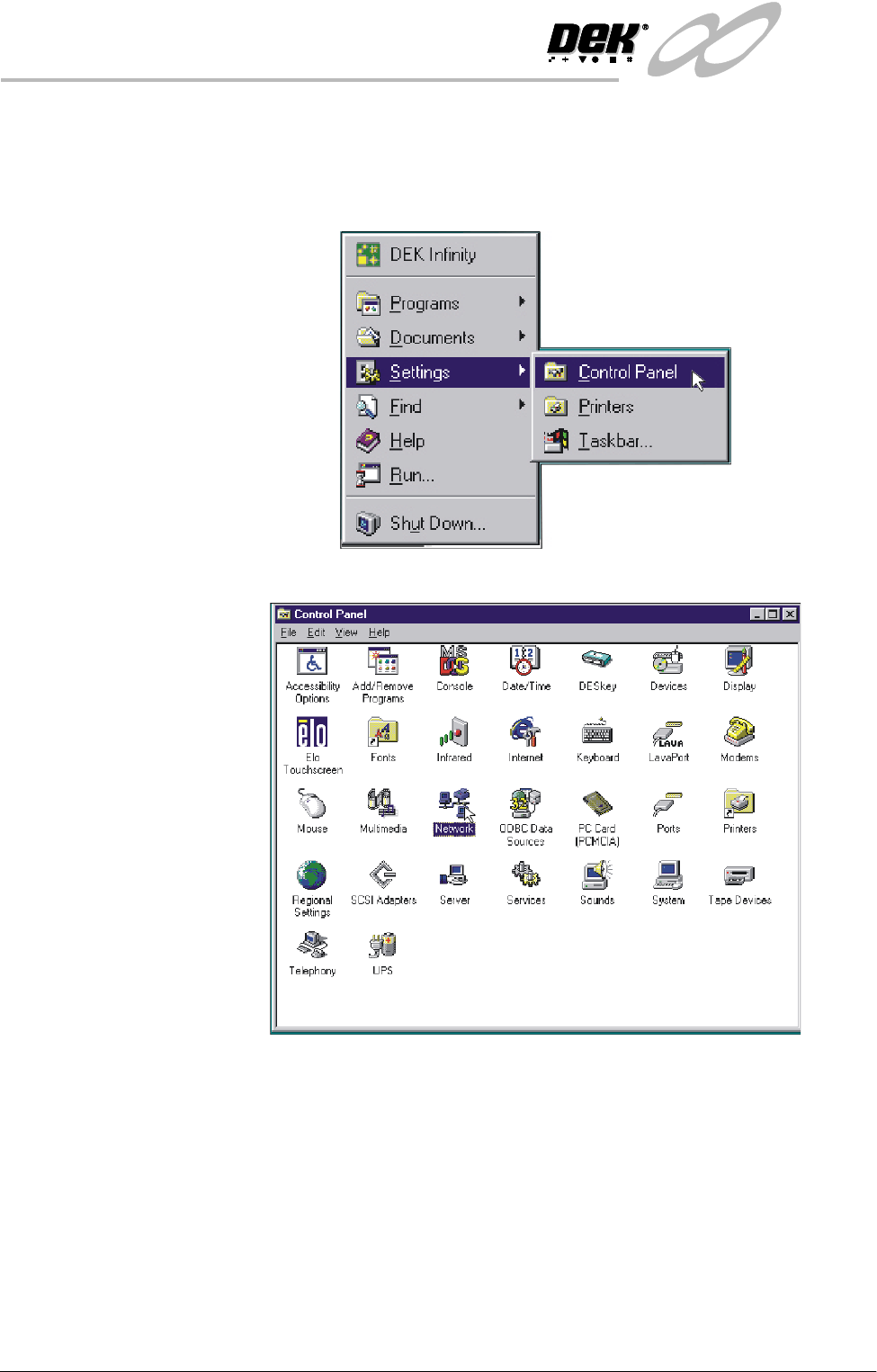

4. On the DEK machine, using the mouse, click on the Start button on the
taskbar. The Start Menu is displayed.
5. Select Settings and Control Panel.
6. Double click on the Network icon.
