DECAN_L2_TRM(Ver4.2_CS20.07).pdf - 第105页
Page +$1:+$ 101 DECAN L2
Page
+$1:+$
100
DECAN
L2
Single Conveyor (3/3)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
32 FC18-903238 WASHER 2
33 MC03-900121 BALL BEARING 2
34 J70531736A TENSION_BEARING_PIN 2
35 MC05-000271 BELT-TIMING BELT 1
36 FC30-001187A PLATE-STOPPER-FRONT 1
37 FC18-902749 SOCKET HEAD CAP SCREW M4*25 (NI/ZN) 2
38 FC18-902777 SOCKET HEAD CAP SCREW M6*25 (NI/ZN) 6
39 FC18-903494 SPRING WASHER [M6 (BL/ZN)] 6
40 FC18-903481 FLAT WASHER [M6 (BL/ZN)] 6
41 J7153330A PULLEY SHAFT 1
42 MC05-900026 TIMING BELT 1
43 MC19-900015 PULLEY-MOTOR 1
44 FC18-902848 SOCKET SET SCREW [M4*5 (BL/ZN)] 4
45 FC18-902743 SOCKET HEAD CAP SCREW M4*12 (NI/ZN) 3
46 FC09-002134A BRACKET-SERVO_MOTOR_P 1
47 EP08-900160 SERVO_MOTOR 1
48 FC18-902725 SOCKET HEAD CAP SCREW M3*10 (NI/ZN) 12
Page
+$1:+$
101
DECAN
L2
Page
+$1:+$
102
DECAN
L2

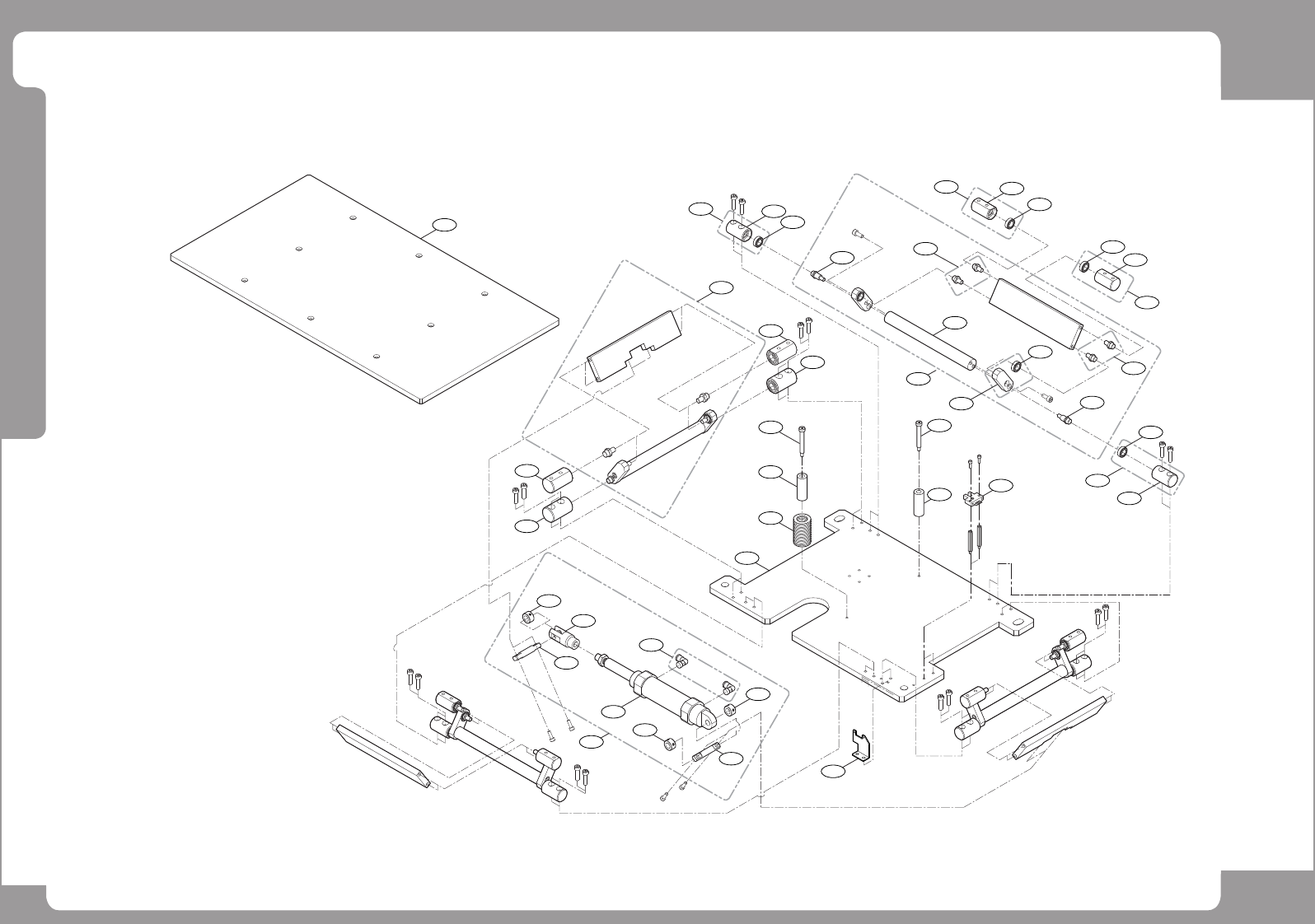

Backup Table
8
7
17
10
24
22
2
22
26
23
24
22
24
22
24
3
5
6
8
6
9
11
11
12
13
15
14
16
18
18
19
19
19
20
21
12
23
15
25
15
15
25
15
