Page +$1:+$ 325 DECAN L2 Safety Control Board (4/8) NO. P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 1 AM03-010957A CAB LE ASSY -FR_STEP_DRV_PWR_EXT 1 2 AM03-010954 A CABLE ASSY -R_STEP_DR V_PWR 1 3…
Page
+$1:+$
324
DECAN
L2
Safety Control Board (4/8)
Page
+$1:+$
325
DECAN
L2

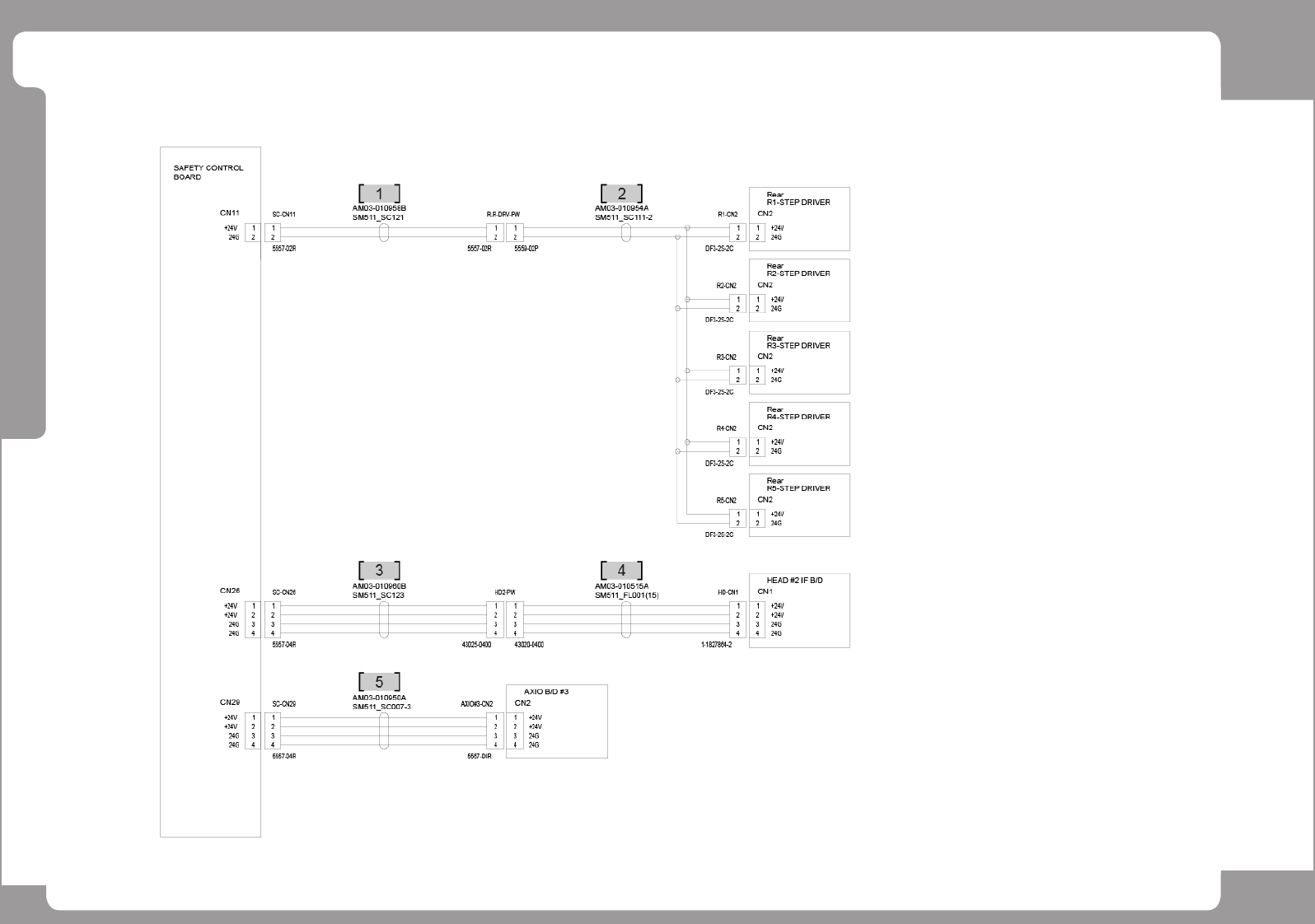

Safety Control Board (4/8)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-010957A CABLE ASSY-FR_STEP_DRV_PWR_EXT 1
2 AM03-010954A CABLE ASSY-R_STEP_DRV_PWR 1
3 AM03-010959A CABLE ASSY-HEAD1_PWR_EXT 1
4 AM03-026275A CABLE ASSY-FLAT 1 1 AM03-010515C/ AM03-010515D
5 AM03-010949A CABLE ASSY-AXIO_BD_2_PWR 1
Page
+$1:+$
326
DECAN
L2
Safety Control Board (5/8)
