Page +$1:+$ 104 DECAN L2 Backup Table L810 D C A A D B C B 9 4 3 18 19 20 12 15 16 17 6 11 7 8 13 10 1 2 5 14 5
Page
+$1:+$
103
DECAN
L2
Backup Table
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
2 J70531052C LOWER_PLATE 1
3 J70531051C BACK_UP_PLATE 1
5 EP19-900108 PHOTO SENSOR 1
6 FC18-901994 SHOULDER SCREW 2
7 FC38-900013 SPRING 1
8 FC29-900536 URETHAN CUSHION 1
9 HP06-900056 ELBOW FITTING 2
10 J90531003A DRIVING_LINK_ASSY 2
11 J7053792A UPPER LINK PIN 4
12 J7053793A LOWER LINK PIN 2
13 J7053796A LOWER LINK SHAFT 1
14 J90531008A LINK_END_ASSY 8
15 MC03-900022 BALL BEARING 1
16 J90531004A FREE_LINK_ASSY 2
17 J90531005A BUT_CYLINDER_ASSY 1
18 J70530794B CYLINDER JOINT PIN 2
19 J7053795A RING FIXER 3
20 FC14-900506 CYLINDER JOINT 1
21 HP03-900013 CYLINDER 1
22 J90531006A LOWER_BEARING_ASSY 8
23 J7053790A LOWER BEARING HOLDER 1
24 J90531007A UPPER_BEARING_ASSY 8
25 J7053791A UPPER BEARING HOLDER 1
26 J7053802A UP SENSOR BRACKET 1
Page
+$1:+$
104
DECAN
L2

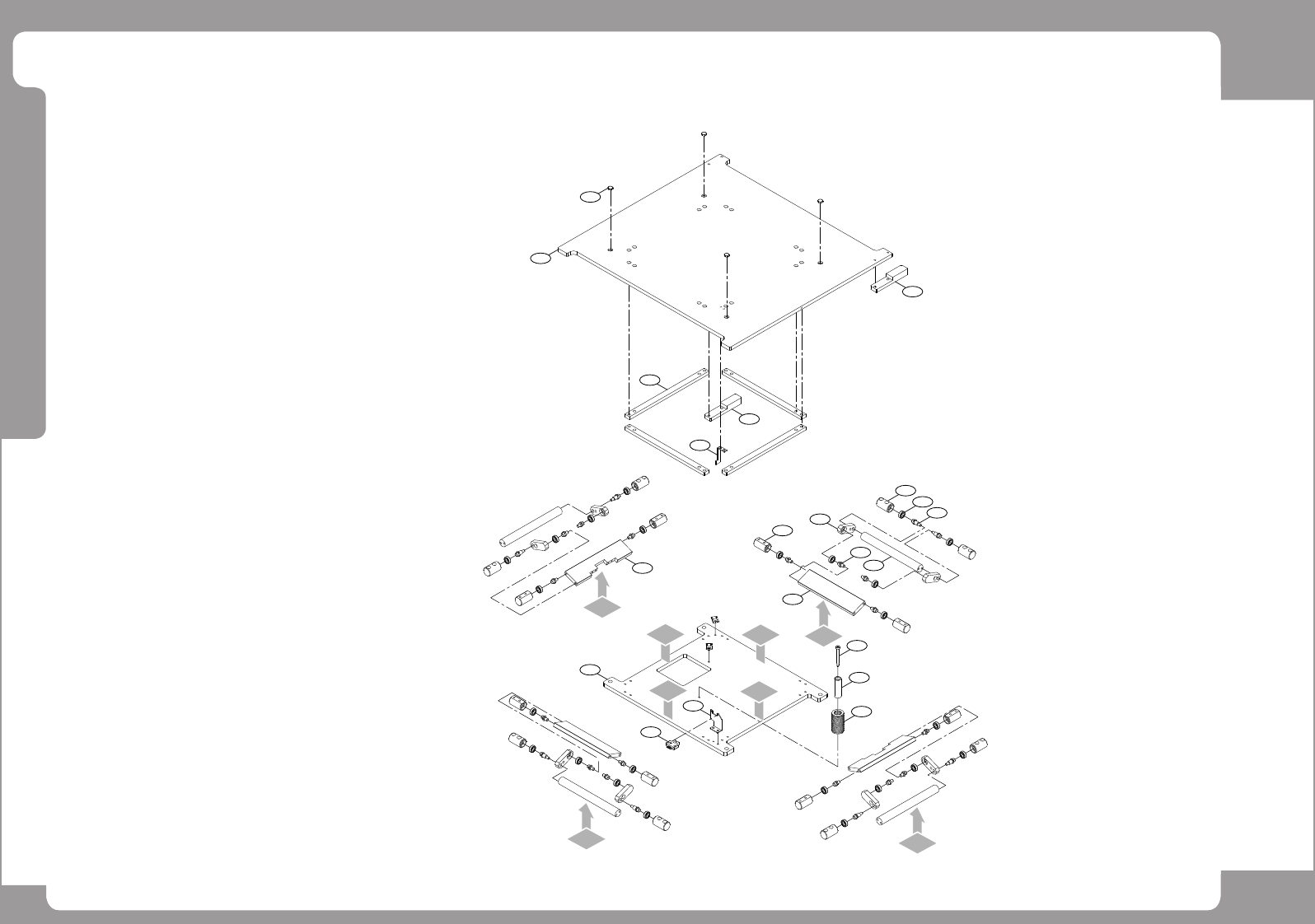

Backup Table L810
D
C
A
A
D
B
C
B
9
4
3
18
19
20
12
15
16
17
6
11
7
8
13
10
1
2
5
14
5
Page
+$1:+$
105
DECAN
L2
Backup Table L810
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC29-000414 CAP-PACK-SGLC6 4
2 FC30-002622A PLATE-BACK_UP_460L 1 PCB L810 Type
FC30-002621A PLATE-BACK_UP_400N 1 PCB L610 Type
3 FC09-004951A BRACKET-TOP SPACER 4
4 FC29-004515A DOG-BUT_UP_SENSOR 1
5 J70531080A PLATE_EXTENSION 2
6 FC29-004299A HOLDER-LOWER_BEARING_BUT 8
7 MC03-900098 BALL_BEARING 24
8 J7053793A LOWER LINK PIN 8
9 J70530797B LOWER LINK END 8
10 MC19-001123A SHAFT-LOWER_LINK_BUT 4
11 FC29-004298A HOLDER-UPPER_BEARING_BUT 8
12 J7053792A UPPER LINK PIN 16
13 FC30-002536A PLATE-UPPER_FREE_LINK 2
14 FC30-002532A PLATE-UPPER_DRIVING_LINK 2
15 FC18-901994 SHOULDER SCREW 1
16 FC29-004429A STOPPER-URETHAN_CUSHION 1
17 J61071108A BUT_SPRING 1
18 FC30-002620A PLATE-LOWER_BUT 1
19 J3212002A PHOTO SENSOR 1
20 FC09-004804A BRACKET-BUT_UP_SENSOR 1
