Page +$1:+$ 347 DECAN L2 Motor IF Board (7/18) NO. P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 1 AM03-014691A CABLE ASSY -FSW_DR V_COMMAND 1 AM03-010980A 2 AM03-014689A CABLE ASSY -FRON_MONIT OR_PW…
Page
+$1:+$
346
DECAN
L2

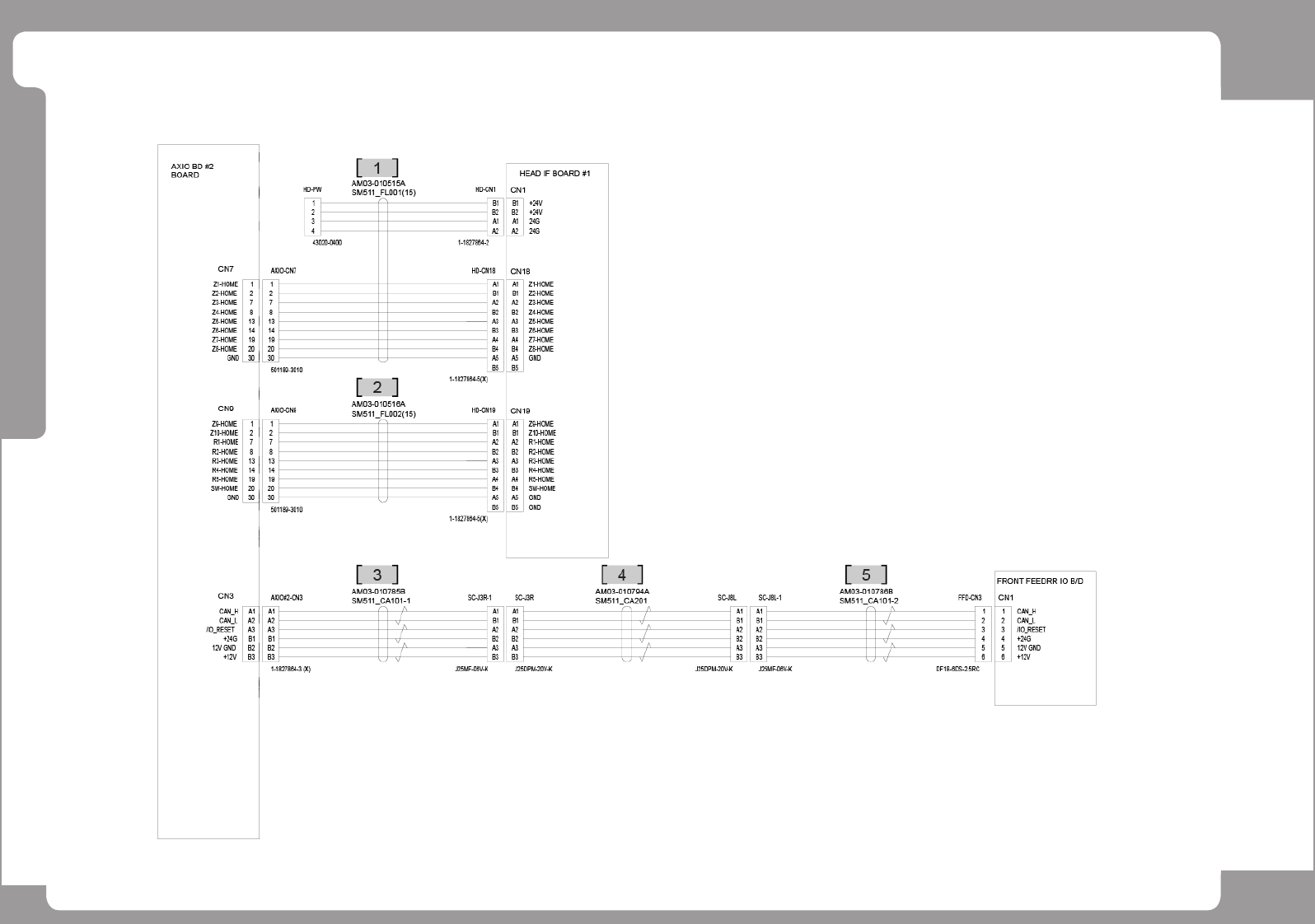

Motor IF Board (7/18)
Page
+$1:+$
347
DECAN
L2
Motor IF Board (7/18)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-014691A CABLE ASSY-FSW_DRV_COMMAND 1 AM03-010980A
2 AM03-014689A CABLE ASSY-FRON_MONITOR_PW 1 AM03-010888B
3 AM03-010889A CABLE ASSY-FSW_MOTOR_ENC 1
4 AM03-026274A CABLE ASSY-FLAT 2 1 AM03-010516C
5 AM03-008031A CABLE ASSY-R5_MOTOR 1
Page
+$1:+$
348
DECAN
L2
Motor IF Board (8/18)
