CP-642E P ARTS LIST ver08 3 0 - 1 3 0 . エアー機器( W P I ) 3 0 . A i r d e v i c e ( W P I ) 3 0 . エアー機器( W P I ) 3 0 . A i r d e v i c e ( W P I ) ﾀ ﾃ x 1 7 3 . 2 0 5 R e f . 3 1 - 1 R e f . 3 1 - 1 R e f . 3 1 - 1 R e f . …
29.カバー(WPZ)
29.Cover(WPZ)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
118 KPA0890 2 SEAL ｼｰﾙ PL
119 KPA0900 2 SEAL ｼｰﾙ Japanese/English PL
120 KPA0920 2 SEAL ｼｰﾙ English/French PL
CP-642E PARTS LIST ver08
29 - 5
29.カバー(WPZ)
29.Cover(WPZ)
CP-642E PARTS LIST ver08
30 - 1

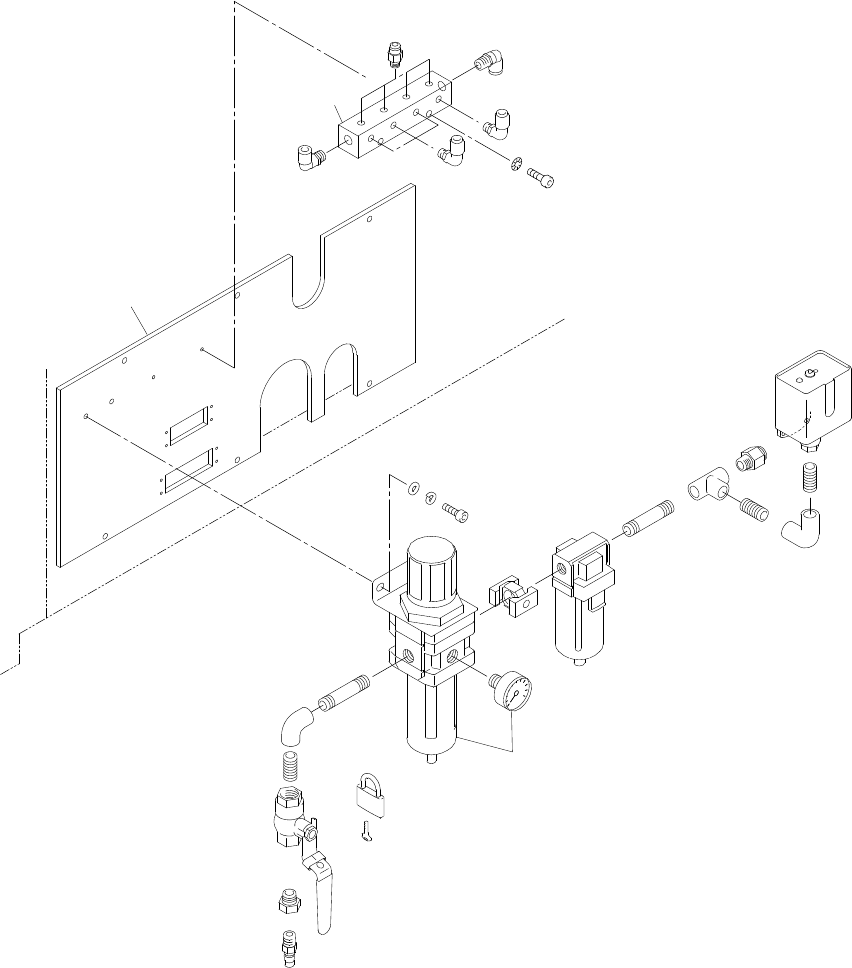

30.エアー機器(WPI)
30.Air device(WPI)
30.エアー機器(WPI)
30.Air device(WPI)
ﾀﾃx173.205
Ref.31-1
Ref.31-1
Ref.31-1
Ref.33-7
Ref.19-4
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
A
x2
14
5
14
10
24
8
19
22
21
12
16
9
11
13
20
23
18
1
25
6
15
3
17
2
7
4
15
27
26
30.エアー機器(WAB)
30.Air device(WAB)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
1 WAB0150 1 COVER ｶﾊﾞｰ FE
2 H3149A 1 PLUG, COUPLER ﾌﾟﾗｸﾞ ｶﾌﾟﾗ 20PM OT
3 H1059T 1 VALVE, BALL ﾊﾞﾙﾌﾞ ﾎﾞｰﾙ RP-LL-3/8 OT
4 T4038A 1 TEE ﾃｨｰ 1/4. OT
5 A4053A 1 ELBOW ｴﾙﾎﾞ 1/4. OT
6 A4081A 1 ELBOW, DIFFERENT DIAMETERS ｴﾙﾎﾞ異径 3/8X1/4 OT
7 H3030A 1 FILTER REGULATOR ﾌｨﾙﾀﾚｷﾞｭﾚｰﾀ AW3000-02-BDG OT
8 S3157T 1 SW, PRESSURE SW ﾌﾟﾚｯｼｬ IS3000-02L5 OT
9 S2176A 4 JOINT, ONE-TOUCH ｼﾞｮｲﾝﾄ ﾜﾝﾀｯﾁ TS6-01 OT
10 S2172B 1 JOINT, ONE-TOUCH ｼﾞｮｲﾝﾄ ﾜﾝﾀｯﾁ TL6-02 OT
11 S2171B 1 JOINT, ONE-TOUCH ｼﾞｮｲﾝﾄ ﾜﾝﾀｯﾁ TL6-01 OT
12 S2173B 3 JOINT, ONE-TOUCH ｼﾞｮｲﾝﾄ ﾜﾝﾀｯﾁ TL8-01 OT
13 S2174B 1 JOINT, ONE-TOUCH ｼﾞｮｲﾝﾄ ﾜﾝﾀｯﾁ TL8-02 OT
14 H1215A 2 PIPE, DOUBLE ENDED ﾊﾟｲﾌﾟ 両口 1/4X30 OT
15 H1220A 2 PIPE, DOUBLE ENDED ﾊﾟｲﾌﾟ 両口 1/4X65 OT
16 H1282A 1 PIPE, DOUBLE ENDED ﾊﾟｲﾌﾟ 両口 3/8X25 OT
17 H3075A 1 BUSHING ﾌﾞｯｼｭ 3/8X1/4 OT
18 H5295A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X35L FE
19 H5322A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X15L FE
20 W1011A WASHER, CONICAL ﾜｯｼｬ 皿 M-4-L FE
21 W1045A WASHER, FLAT ﾜｯｼｬ 平 4W-6 FE
22 W1024A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M FE
23 GXA0110 1 TERMINAL, PIPING ﾀｰﾐﾅﾙ 配管 AL
24 S2152A 1 JOINT ｼﾞｮｲﾝﾄ TS8-02 OT
25 K2027R 1 KEY ｷｰ C1000-50 OT
26 S4016R 1 SEPARATOR MIST ｾﾊﾟﾚｰﾀ ﾐｽﾄ AFM3000-02-D OT
27 S3059Y 1 SPACER ｽﾍﾟｰｻ Y30 OT
CP-642E PARTS LIST ver08
30 - 2
30.エアー機器(WAB)
30.Air device(WAB)
