DIGITAL INSPECTION
016
SCIENSCOPE INTERNATIONAL
DIGITAL INSPECTION
SCIENSCOPE INTERNATIONAL
017

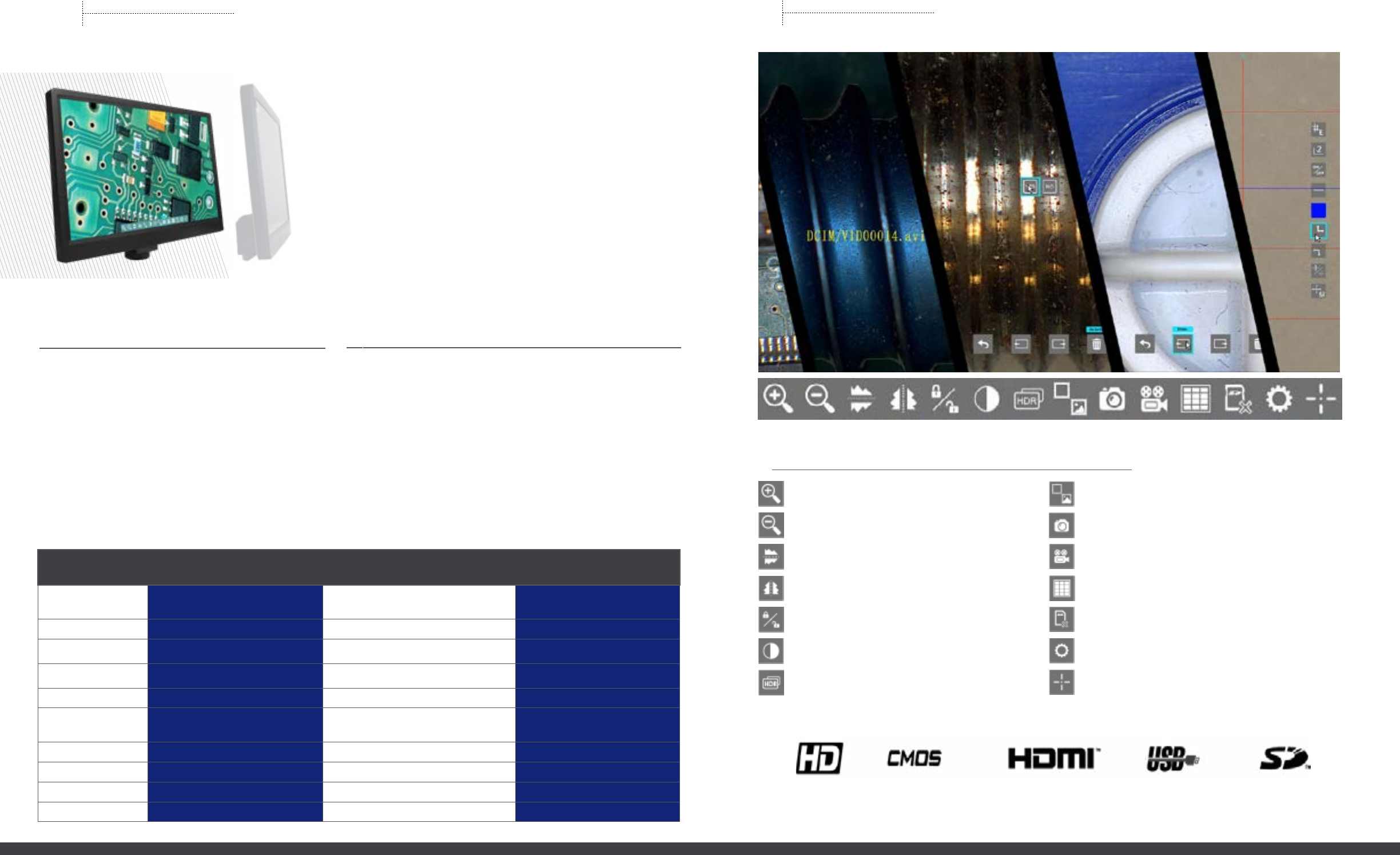

The New MAC3 Camera (Part number: CC-CMC-12H) from
Scienscope is an all-in-one camera with an integrated
monitor and software. The MAC3 Camera can be used as a
“live image” HD (1080p) camera or as a USB 2.0 camera with
a USB cable connected to any computer or Windows Tablet.
The Camera can be connected to any microscope or optical
system with a C mount so you can instantly upgrade your
system. With a monitor mounted directly to the Camera, a
limited workspace is never a problem, and your ergonomics
will also improve.
• 1080p (1920 x 1080) HD images @ 60fps
• Onscreen control bar and setting menu
• Image and video capture to SD card
• Split-screen live image | Capture image
comparison (picture-to-picture)
• Image and video gallery/ Image and video review
• Vertical and horizontal line generator
• Save line generator configurations
• Wireless mouse support and control
MAC3 CAMERA & MONITOR
Integrated Software with Convieniently Located Control Bar
HDMI MODE FEATURES
CC-CMC-12H
USB 2.0 MODE FEATURES
• 2 Mega-pixel resolution
• Image and Video capture w/Windows 10 camera app
• Email, Save, or Print software
• Image and video capture with the included software
• Annotation and drawing tools on live or captured images
• Send images directly to the local file location or network
• Time and date stamp images
• Includes DirectShow drivers
• Upgrade software with FOV measurements tools
Image Sensor
1/2.86 Inch Panasonic
FULL HD 2.0 Megapixel
Freeze Image Yes
Effective Pixels 1920 X 1080 HDR Yes
Frame Rate 60fps Edge Enhancements/ Sharpening Yes
Definition More than 1200 lines SD card slot Up to 32GB SD Card
Housing Aluminum/ Plastic Crosshair Multi-Color, small or large
White Balance Automatic/Manual/Continous Horizontal/ Vertical lines
Multi-Color, two lines for each
(Position can be adjusted)
Brightness Control Automatic/Manual/Continous Noise Reduction Support
Color R/G/B adjustable HDMI 1080p
Edge Enhancement Yes USB USB 2.0
OSD: Yes, In HDMI mode
Digital Zoom / Increase Magnification
Digital Zoom / Decrease Magnification
Flip Image Horizontal
Mirror Image Vertical
Freeze Image / Unfreeze Image Toggle
Color to Black and White Toggle
High Dynamic Range Toggle
Side-by-Side Live/Captured Image Comparison
Still Image Capture
Video Capture
Gallery / Image Preview / SD Card Management
Clear SD Card and SD Format
Settings Menu
Integrated Video Caliper and Crosshair
MAC3 CAMERA (CC-HDMI-12H) | SPECIFICATIONS
DIGITAL INSPECTION
018
SCIENSCOPE INTERNATIONAL
DIGITAL INSPECTION
SCIENSCOPE INTERNATIONAL
019
MAC3 ERGONOMIC INSPECTION SYSTEMS
• MACRO video zoom optics (up to 40x magnification with 8" working distance)
• Single arm boom stand
• 1080p HD camera and 12" LCD monitor combination
• NEW high-intensity LED ring light with polarizer (IL-LED-R3)
• All systems include a camera/monitor combo with an 8GB SD card, wireless
mouse, USB cable, power supply, and Image capture software
MAC3-PK5S-R3
• MACRO video zoom optics (up to 40x magnification with 8" working dis-
tance)
• Extended post stand
• 1080p HD camera and 12" LCD monitor combination
• NEW high-intensity LED ring light with polarizer (IL-LED-R3)
• All systems include a camera/monitor combo with an 8GB SD card, wire-
less mouse, USB cable, power supply, and Image capture software
MAC3-PK1-R3
• MACRO video zoom optics (up to 40x magnification with 8" working dis-
tance)
• Extended post stand
• 1080p HD camera and 12" LCD monitor combination
• Diffused compact LED ring light. (IL-LED-E2D)
• All systems include a camera/monitor combo with an 8GB SD card, wire-
less mouse, USB cable, power supply, and Image capture software
MAC3-PK1-E2D
• MACRO video zoom optics (up to 40x magnification with 8" working dis-
tance)
• Heavy duty articulating arm with vertical post and clamp
• 1080p HD camera and 12" LCD monitor
• NEW high-intensity LED ring light with polarizer (IL-LED-R3)
• All systems include a camera/monitor combo with an 8GB SD card, wire-
less mouse, USB cable, power supply, and Image capture software
MAC3-PK3-R3
• MACRO video zoom optics (up to 40x magnification with 8" working dis-
tance)
• Heavy duty articulating arm with vertical post and clamp
• 1080p HD camera and 12" LCD monitor combination
• Diffused compact LED ring light. (IL-LED-E2D)
• All systems include a camera/monitor combo with an 8GB SD card, wire-
less mouse, USB cable, power supply, and Image capture software
MAC3-PK3-E2D
• MACRO video zoom optics (up to 40x magnification with 8" working dis-
tance)
• Dual arm boom stand
• 1080p HD camera and 12" LCD monitor
• NEW high-intensity LED ring light with polarizer (IL-LED-R3)
• All systems include a camera/monitor combo with an 8GB SD card, wire-
less mouse, USB cable, power supply, and Image capture software
MAC3-PK5D-R3
• MACRO video zoom optics (up to 40x magnification with 8" working distance)
• Dual arm boom stand
• 1080p HD camera and 12" LCD monitor combination
• Diffused compact LED ring light (IL-LED-E2D)
• All systems include a camera/monitor combo with an 8GB SD card, wireless mouse, USB
cable, power supply, and image capture software
MAC3-PK5D-E2D
• MACRO video zoom optics (up to 40x magnification with 8" working distance)
• Single arm boom stand
• 1080p HD camera and 12" LCD monitor combination
• Diffused compact LED ring light (IL-LED-E2D)
• All systems include a camera/monitor combo with an 8GB SD card, wireless
mouse, USB cable, power supply, and image capture software
MAC3-PK5S-E2D
• MACRO video zoom optics (up to 40x magnification with 8" working distance)
• Heavy duty articulating arm with vertical post and clamp
• 1080p HD camera and 12" LCD monitor combination
• Quadrant-controlled LED ring light
• All systems include a camera/monitor combo with an 8GB SD card, wireless
mouse, USB cable, power supply, and image capture software
MAC3-PK3-E1Q
• MACRO video zoom optics (up to 65x magnification with 8" working distance)
• Dual arm boom stand
• NEW high-intensity LED ring light with polarizer (IL-LED-R3)
• Features NEW 1080p HDMI/USB camera (Includes SD card, HDMI cable, USB cable,
and mouse)
• 23" HD LCD monitor
• Capture software
MAC3-PK5D-E1Q
• MACRO video zoom optics (up to 40x magnification with 8" working distance)
• Single arm boom stand
• 1080p HD camera and 12" LCD monitor combination
• Quadrant-controlled LED ring light
• All systems include a camera/monitor combo with an 8GB SD card, wireless
mouse, USB cable, power supply, and image capture software
MAC3-PK5S-E1Q
MAC3 ERGONOMIC INSPECTION SYSTEMS
DIGITAL INSPECTION
020
SCIENSCOPE INTERNATIONAL
DIGITAL INSPECTION
SCIENSCOPE INTERNATIONAL
021
The SmartCam-Ultra AF from Scienscope is our most ad-
vanced 4k resolution camera. It features a vivid 4K image
to a live monitor (HDMI) or 8.2 Megapixel image via USB
3.0 and WiFi to a computer. Includes a host of onboard im-
age processing and measurement tools accessible using a
mouse connected to the camera via its onboard software.
Capture images to SD card, USB Flash drive, USB 3.0, and
WiFi. Measure anything using the onboard field-of-view
measuring tools, DXF overlay, or multi-line generator.
Export your measurement data and images with measured
objects!
• Auto-Focus
• Live measurement and annotation tools
• Image and video capture to SD card or USB Flash drive
• Split-screen live image/captured image comparison
• Image and video gallery / Image and video review
• Export measurement data to an SD card or USB Flash
• Wireless mouse control
SC U
Integrated Software with Convieniently Located Control Bar
HDMI MODE FEATURES
CC-SMART-4K-AF
USB 3.0/WIFI MODE FEATURES
• Image and video capture using Windows 10 camera
app
• Measure and annotate using included WiFi and USB
2.0 software
• Image and video capture using the included software
• Directly email or print images
• Export measurement data
Image Sensor Sony IMX334© 1/1.8”(7.68x4.32) Freeze Image Yes
Effective Pixels
30@3840*2160(HDMI)
20@3840*2160(USB)
HDR Yes
Frame Rate 30fps Edge Enhancements/ Sharpening Yes
Definition 4200 lines SD card slot Up to 32GB SD Card
Housing Aluminum Crosshair Multi-Color, small or large
White Balance Automatic/Manual/Continous Horizontal/ Vertical lines
Multi-Color, two lines for each
(Position can be adjusted)
Brightness Control Automatic/Manual/Continous Noise Reduction Support
Color R/G/B adjustable HDMI 1080p
Edge Enhancement Yes USB USB 3.0
OSD Yes, In HDMI mode
Digital Zoom / Increase Magnification
Digital Zoom / Decrease Magnification
Flip Image Horizontal
Mirror Image Vertical
Color to Black and White Toggle
Freeze Image/ Unfreeze Image Toggle
Digital Line Generator
Side-by-Side Live/Captured Image Comparison
Still Image Capture
Auto Focus / Optical Zoom
Gallery / Image Preview / SD Card Management
Side-by-Side Live/Captured Image Comparison
File Explorer
Settings
Software Info
SC-U AF (CC-SMART-4K-AF) | SPECIFICATIONS
