The NEW 4K All-One Camera from Scienscope is THE
advanced all-in-one inspection solution—all you need
to inspect or convert any optical microscope system into
a powerful digital inspection tool. The 4K All-One(AO)
includes internal software-controlled optics, integrated
image processing and capture software, measuring tools
with an onscreen magnification display, integrated LED
lighting, and a mounting adapter. Experience full 4K image
quality with no image delay. Measure anything using the
onboard field-of-view measuring tools, DXF overlay, or
multi-line generator. Export your measurement data and
images with measured objects!

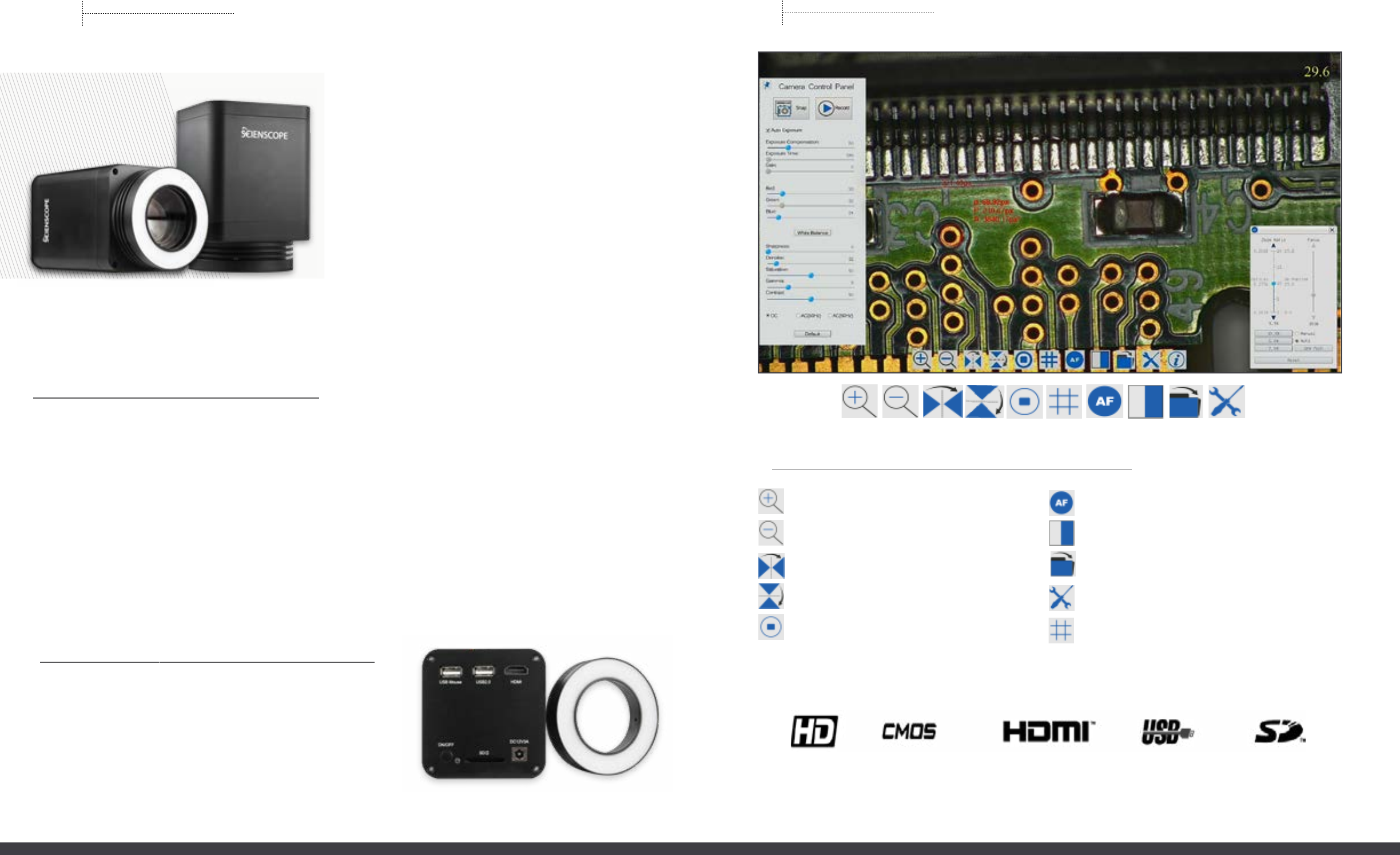

ALLONE 4K DIGITAL CAMERA
CC-SMART-A1-4K
Integrated Software with Convieniently Located Control Bar
Digital Zoom / Increase Magnification
Digital Zoom / Decrease Magnification
Flip Image Horizontal
Mirror Image Vertical
Freeze Image / Unfreeze Image Toggle
Digital Line Generator
Auto Focus/ Optical Zoom Menu
Side-by-Side Live/Captured Image Comparison
File Explorer/Gallery/ SD Card Management
Settings
• Optics consist of 5 groups with 16 elements, offering a 20X zoom ratio and up to 90X magnification.
• Motorized Zoom / Auto and manual focus
• 192mm standard working distance with 150-195mm depth of field
• Removable/Integrated LED ring light
• 76mm diameter adapter bracket and ¼” 20 mounting thread for mounting
• Sony 1/2.8” 4K Starvis CMOS
• 4K/1080P @30FPS auto switching according to monitor resolution
• SD card/USB flash drive stores image and video capture, support local preview/playback
• 4K HDMI/USB/ETH/WiFi multiple video outputs
• Embedded mouse control panel, Measurement Toolbar, Comprehensive Control Toolbar, Auto-focus, and zoom control panel
• Onscreen magnification display
ALL-ONE CAMERA OVERVIEW & FEATURES
ALL-ONE INTEGRATED SOFTWARE FEATURES
• Image and video capture to SD card or USB Flash drive
• Split-screen live image/captured image comparison
• Image and video gallery / Image and video review
• Wireless mouse control
Software Info
Color to Black and White Toggle
DIGITAL INSPECTION
06
SCIENSCOPE INTERNATIONAL
DIGITAL INSPECTION
SCIENSCOPE INTERNATIONAL
07
• Features NEW All-One 4K UHD Camera with integrated optics (80x
Max) and integrated diffused LED ring light and mounting adapter
• Integrated diffused LED ring light
• Mounting adapter
• SD or USB card capture
• Includes 23" HD LCD monitor
• Capture software
MAC-PK1-A1-4K
• Features NEW All-One 4K UHD Camera with integrated optics (80x Max) and
integrated diffused LED ring light and mounting adapter
• Integrated diffused LED ring light
• Mounting adapter
• SD or USB card capture
• Includes 23" HD LCD monitor
• Capture software
• Heavy duty articulating arm stand
MAC-PK3-A1-4K

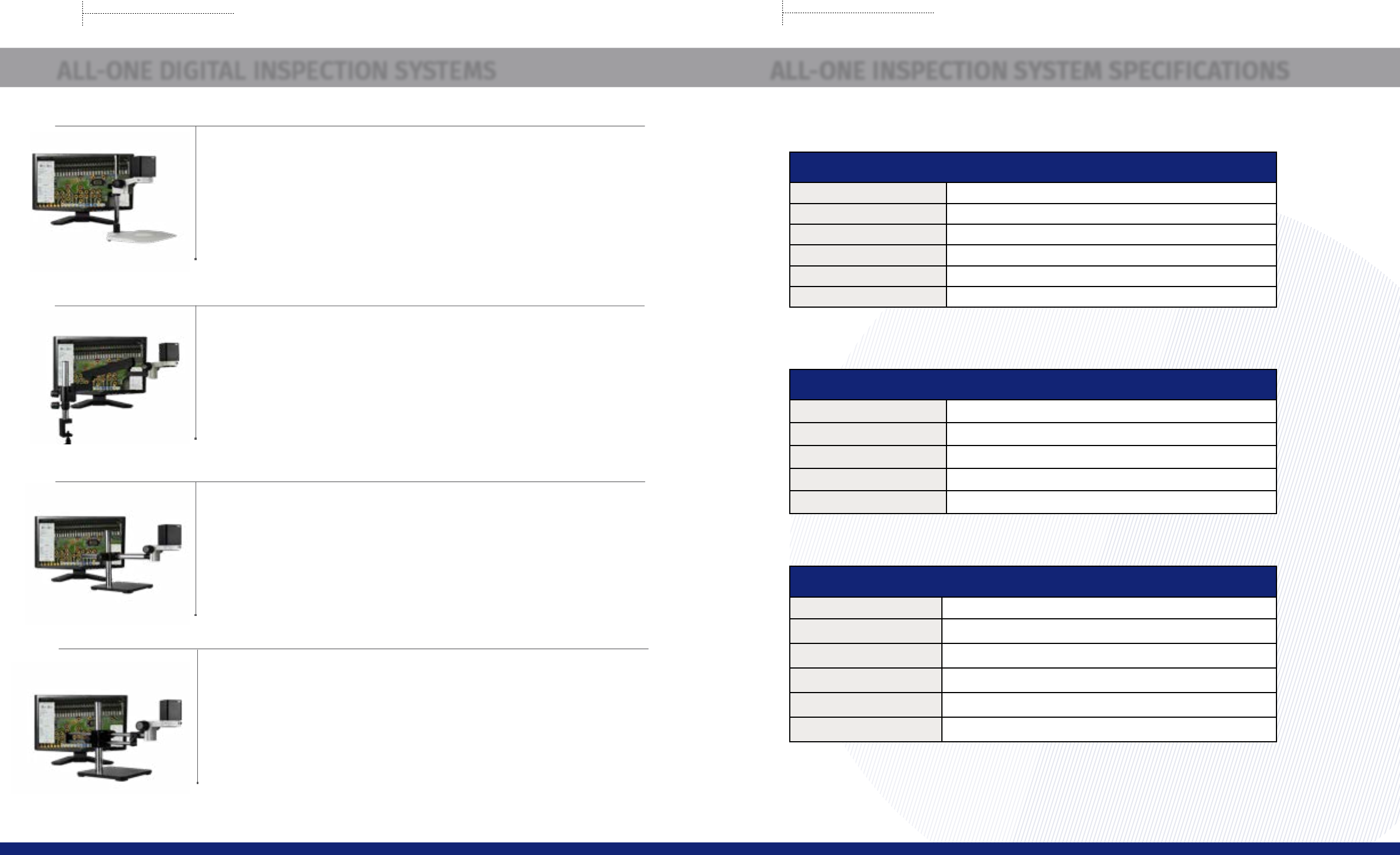

ALL-ONE DIGITAL INSPECTION SYSTEMS
• Features NEW All-One 4K UHD Camera with integrated optics (80x Max)
and integrated diffused LED ring light and mounting adapter
• Integrated diffused LED ring light
• Mounting adapter
• SD or USB card capture
• Includes 23" HD LCD monitor
• Capture software
MAC-PK5S-A1-4K
• Features NEW All-One 4K UHD Camera with integrated optics (80x Max)
and integrated diffused LED ring light and mounting adapter
• Integrated diffused LED ring light
• Mounting adapter
• SD or USB card capture
• Includes 23" HD LCD monitor
• Capture software
• Dual arm boom stand
MAC-PK5D-A1-4K
Sensor & Size (mm)
Pixel (µm)
G Sensivity Dark Signal
FPS/Resoluon
Binning
Exposure
Working Distance (mm)
Zoom Range
MTF (lp/mm)
Distoron
FOV@1.0X (mm)
FOV@20X (mm)
LED
Color
Power
Inner Dia (mm)
Out Dia (mm)
ALL-ONE INSPECTION SYSTEM SPECIFICATIONS
DIGITAL INSPECTION
08
SCIENSCOPE INTERNATIONAL
DIGITAL INSPECTION
SCIENSCOPE INTERNATIONAL
09
The All-One Camera is an advanced all-in-one inspection
solution—all you need to inspect or convert a microscope
system into a powerful digital inspection tool. All-One(AO)
includes internally controlled optics, integrated image
processing and capture software, with an onscreen
magnification display, integrated LED lighting, and a
mounting adapter.
Experience full HD image quality with no image delay-the
perfect solution for those wishing to digitize and simplify
their inspection process.
ALLONE DIGITAL CAMERA
CC-SMART-A1
Integrated Software with Convieniently Located Control Bar
Digital Zoom / Increase Magnification
Digital Zoom / Decrease Magnification
Flip Image Horizontal
Mirror Image Vertical
Freeze Image / Unfreeze Image Toggle
Digital Line Generator
Auto Focus/ Optical Zoom Menu
Side-by-Side Live/Captured Image Comparison
File Explorer/Gallery/ SD Card Management
Settings
• Optics include five groups of 16 elements with a 20X zoom ratio. Up to 50x magnification
• Motorized Zoom
• Auto and manual focus
• 195mm standard working distance with 156-196mm depth of field
• Field of view 200mm x 112.5mm at low magnification. Field of view 10mm x 5.6mm at high magnification
• Removable/Integrated LED ring light
• 76mm diameter adapter bracket and ¼” 20 mounting thread for mounting
• Sony 1/2.8” 1080P CMOS with a high signal-to-noise ratio
• Output HDMI to monitor with 1080P@60FPS
• SD card storage for 1080P pictures and video
• Embedded mouse control panel, Comprehensive Control Toolbar, Auto-focus, and zoom control panel
• Onscreen magnification display
ALL-ONE CAMERA OVERVIEW & FEATURES
ALL-ONE INTEGRATED SOFTWARE FEATURES
• Image and video capture to SD card or USB Flash drive
• Split-screen live image/captured image comparison
• Image and video gallery / Image and video review
• Wireless mouse control
They are ergonomically designed, allowing for less operator fatigue and improved production efficiency—simple,
fast, high-quality inspection. Ideal for repair, rework assembly, and quality control in any manufacturing industry.
