SMT Software Engineering Group IM Operations YAMAHA MOTOR CO. , LTD MDOC-SOFT5007 1 6 Fig.3.2 [Mo nitor] - [ Counter] t ab 3.2. In the case of “Controlled in the T im e” In [Print] – [Cleaner] – [Controlled in the T ime]…
SMT Software Engineering Group
IM Operations
YAMAHA MOTOR CO., LTD
MDOC-SOFT50071
5
When “Dry Auto Interval (Board)”, “Wet Auto Interval (Board)” or “Manual Interval
(Board)” is set in [Print] – [Cleaner] tab, these cleaning are enabled with detail settings. In
this case, each auto interval and manual interval value must satisfy the following relation.
Dry < Wet < Controlled in the Board 1 < Controlled in the Board 2 < Controlled in the
Board 3 < Controlled in the Board 4 < Manual
When the execution timing of two or more cleanings is simultaneous, larger interval
cleaning takes precedence. At this time, the cleaning counter of smaller interval cleaning is
cleared. (Values of cleaning counter can be displayed on [Monitor] – [Counter] tab. See
Fig.3.2)
For example, when “Dry Auto Interval (Board)” is “2”, “Detail Auto Interval” of “Controlled
in the Board 1” is “3” and “Detail Auto Interval” of “Controlled in the Board 2” is “4”, cleaning
is executed as Table 3.2 shows. (The value of the parentheses means the cleaning
counter.)

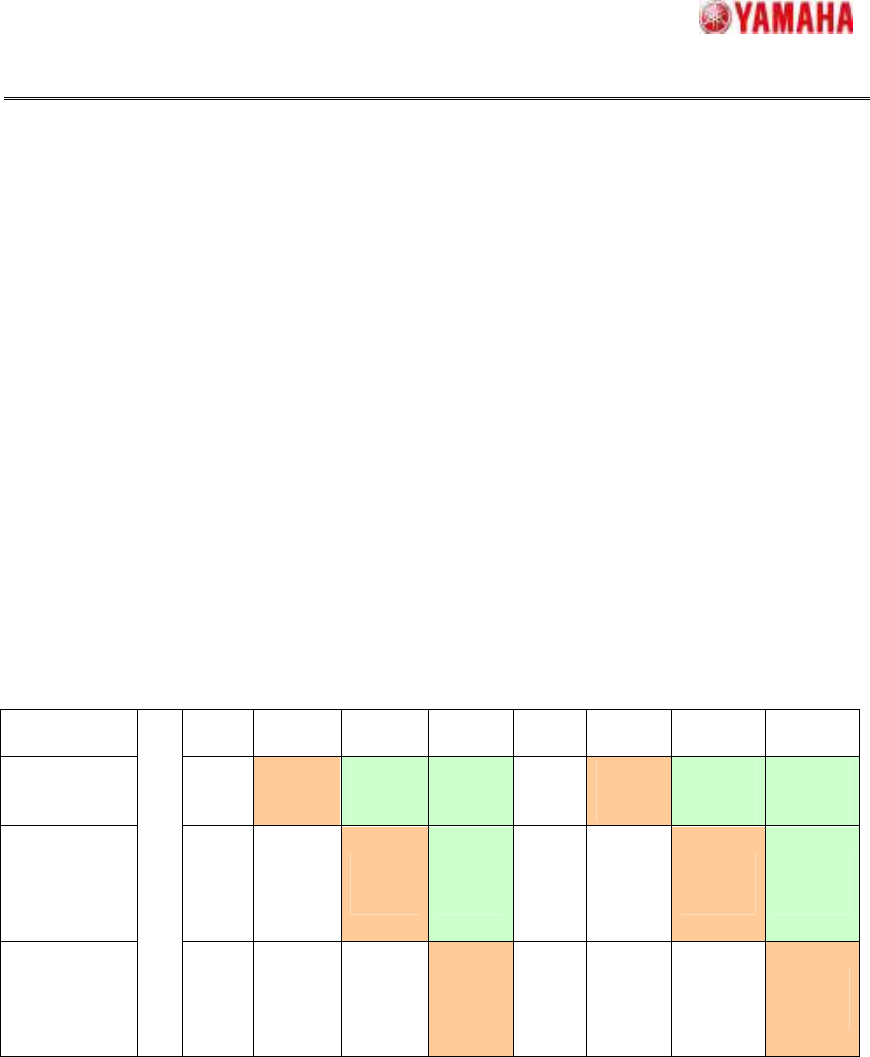

Table3.2 Example of “Controlled in the Board” cleaning
First
board
Second
board
Third
board
Forth
board
Fifth
board
Sixth
board
Seventh
board
Eighth
board
Dry cleaning
(1)
Execute
(2)
Cleared
counter
(0)
Cleared
counter
(0)
(1)
Execute
(2)
Cleared
counter
(0)
Cleared
counter
(0)
Detail
cleaning of
“Controlled
in the Board
1”
(1)
(2)
Execute
(3)
Cleared
counter
(0)
(1)
(2)
Execute
(3)
Cleared
counter
(0)
Detail
cleaning of
“Controlled
in the Board
2”
START
(1)
(2)
(3)
Execute
(4)
(1)
(2)
(3)
Execute
(4)
Both cleaning are executed, when the execution timing of “Controlled in the Board”
cleaning and “Controlled in the Time” cleaning is simultaneous.
SMT Software Engineering Group
IM Operations
YAMAHA MOTOR CO., LTD
MDOC-SOFT50071
6

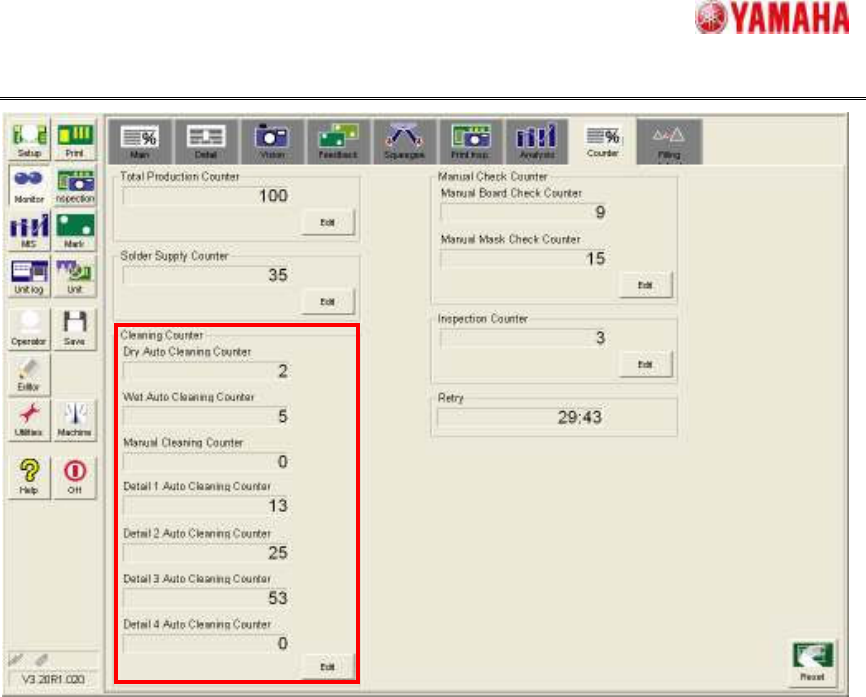

Fig.3.2 [Monitor] - [Counter] tab
3.2. In the case of “Controlled in the Time”
In [Print] – [Cleaner] – [Controlled in the Time], set “Cleaning Method” to “Auto” and “Auto
Cleaning Type” to “Detail”, and enter the interval time of cleaning execution in “Interval
(min)”. (Fig.3.3) Then, tap “Detail Setting” button and open “Cleaning Detail Setting” window,
and set “Cleaning Type”, “Speed” and “Vacuum” of each sequence in [Controlled in the
Time] tab. (Fig3.4)
There is not “Detail Auto Interval” in this setting, so only one kind of setting can be
registered.
SMT Software Engineering Group
IM Operations
YAMAHA MOTOR CO., LTD
MDOC-SOFT50071
7

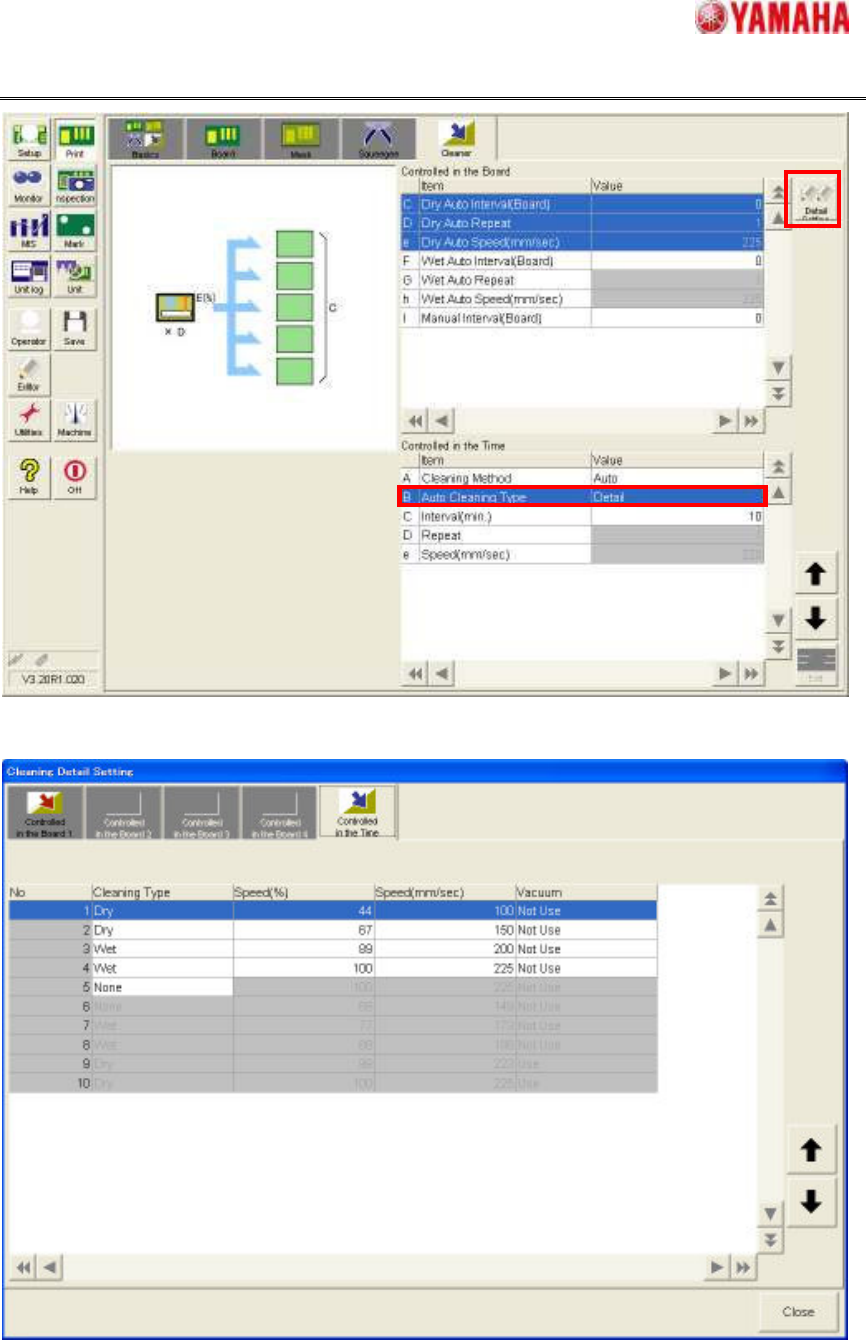

Fig.3.3 [Print] – [Cleaner] tab
Fig.3.4 [Controlled in the Time] tab on [Cleaning Detail Setting] window
