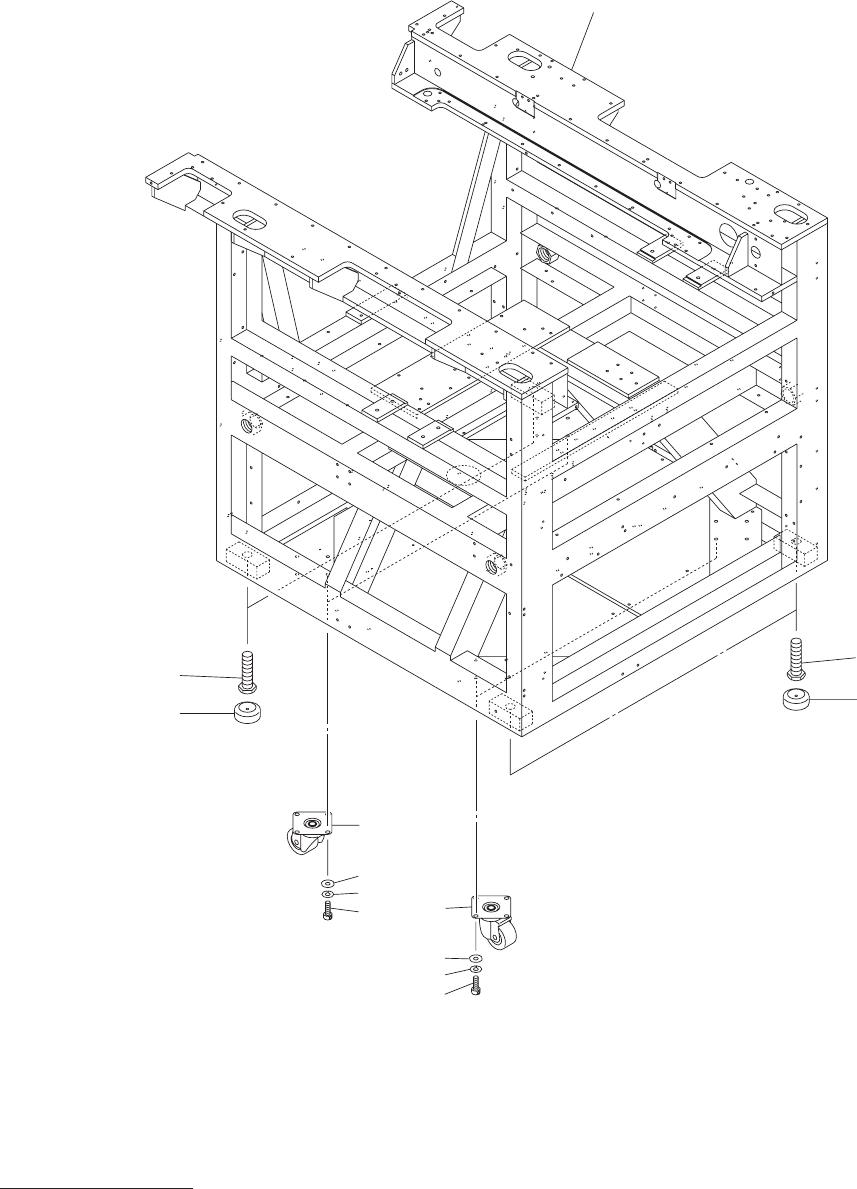

Fig. K-1
ベースアングル
Base Angle
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TPM-110F/R-C
0211-001
117
1 630 117 7274 CASTER 4 748K--310-001
2 630 003 0570 FEED SCREW 4 748K--310-002
3 630 029 8178 BLOCK,LOCATE 4 748K--310-003
4 630 102 9825 BASE 1 748K--310-004
61 630 000 8012 BOLT,HEX-SCT 16 748K--310-061
62 411 141 4503 WASHER V 8X17X1.6 16 748K--310-062
63 411 141 3100 WASHER SPR 8 16 748K--310-063
K-1
MODEL TPM-110F/R-C
0211-001
118
162
163
161
102
103
105
101
See Fig.K-1
Key No.4
104
106
メカ廻り
MECHANICAL DISTRIBUTION SECTION
Fig. K-2

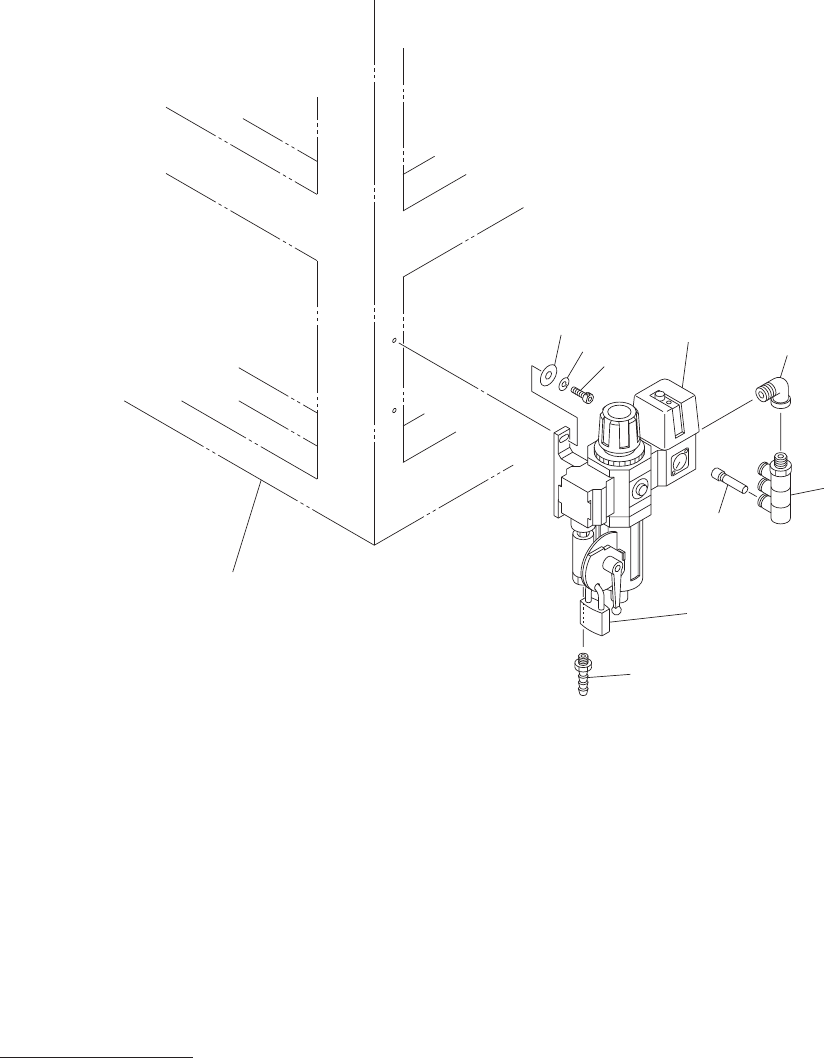

エア配管１
Air Piping-1
