MODEL TPM-1 10F/R-C 021 1-001 162 See Fig.C-1 Key No.1 2 1 基板部 P .C.B. SECTION Fig. T -1 基板実装部 P .C.B. Layout

Key No. PART No. PART NAME Q’ty REMARKS

NOTE

MODEL TPM-110F/R-C

0211-001

161

2 630 116 3680 UNIT,DRIVER 2 APMD037,039, ASD13A-ASD

748HH-310-002

5 630 088 6566 CORD 1 XCN392-XCN394 748HH-310-005

6 630 088 6573 CORD 1 XNC375-XNC370 748HH-310-006

7 630 088 6580 CORD 1 XNC395-XNC390 748HH-310-007

8 630 116 6926 CORD 1 XCN1376-XNC1371 748HH-310-008

9 630 116 6933 CORD 1 XCN1396-XNC1391 748HH-310-009

10 630 116 6940 CORD 1 XCNA04,B04-XCNA37,

XNC1376-XCNA39,XNC1396-XNC1A07

748HH-310-010

61 411 113 1400 SCR PAN 4X6 4 748HH-310-061

62 411 008 1706 WASHER SPR 4 4 748HH-310-062

63 411 119 2104 WASHER V 4X9X0.8 4 748HH-310-063

HH-1

MODEL TPM-110F/R-C

0211-001

162

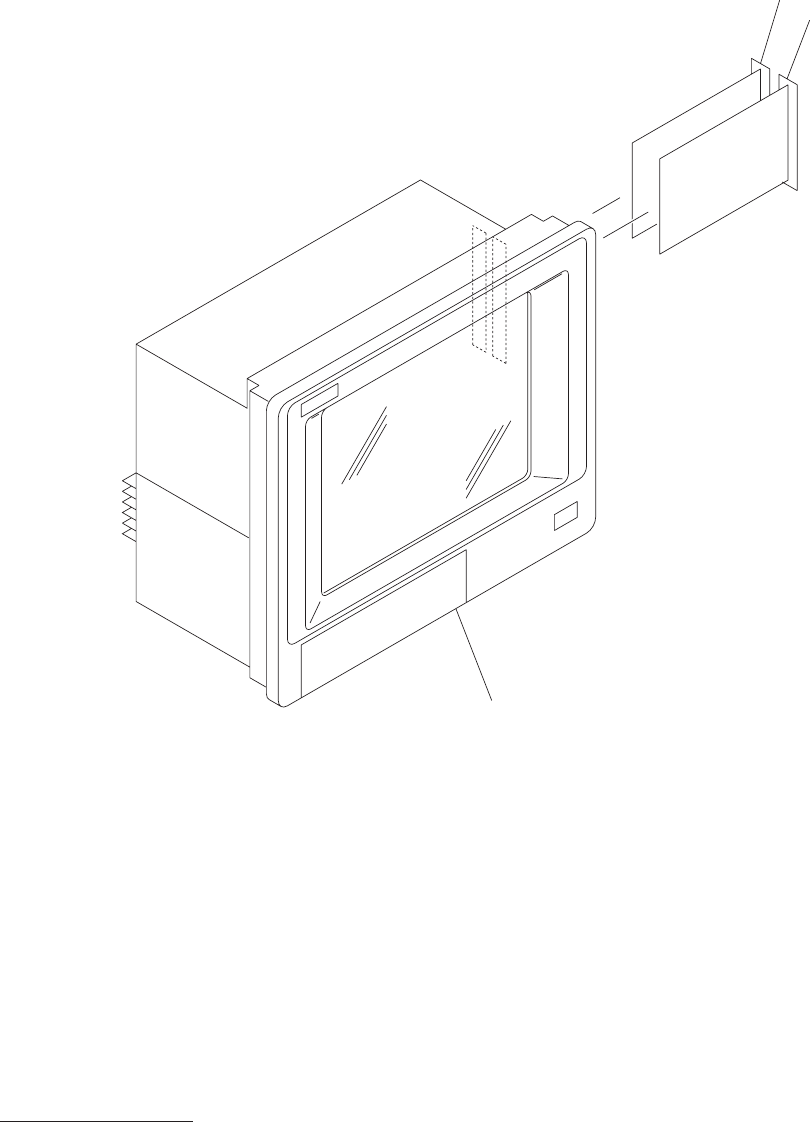

See Fig.C-1

Key No.1

基板部

P.C.B. SECTION

Fig. T-1

基板実装部

P.C.B. Layout

Key No. PART No. PART NAME Q’ty REMARKS

NOTE

MODEL TPM-110F/R-C

0211-001

163

1 630 099 9372 P.C.B,MOUNT 1 U001, METEOR2/4 748T--310-001

2 630 089 2840 P.C.B,MOUNT 1 U002, SAB10-C4A1 748T--310-002
