MODEL TPM-1 10F/R-C 0509-002 166 1 13-05 1 13-06 1 13-07 1 13-04 1 13-03 1 1 3-02 1 13-02 1 13-07 1 1 3-07 1 13-03 1 13-05 1 13-06 1 1 3-07 1 13-04 1 13-04 1 13-05 1 13-06 1 13-07 1 13-01 1 13-04 1 13-05 1 1 3-06 1 1 3-0…
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TPM-110F/R-C
0211-001
165
1 630 091 1459 PLATE 1 748S--310-001
2 630 091 1466 ROD 30 748S--310-002
3 630 093 5554 PIN,LOCATE 2 748S--310-003
4 630 093 5561 SHEET 1 748S--310-004
61 630 000 7749 BOLT,HEX-SCT 4 748S--310-061
S-1
MODEL TPM-110F/R-C
0509-002
166
113-05
113-06
113-07
113-04
113-03
11
3-02
113-02
113-07
11
3-07
113-03
113-05
113-06
11
3-07
113-04
113-04
113-05
113-06
113-07
113-01
113-04
113-05
11
3-06
11
3-07
113-01
113
スキージ
SQUEEGEE
350mm
105
スキージ
SQUEEGEE
105-01
105-01
105-02
105-02
105-04
105-04
105-05
105-05
105-03
105-06
105-07
105-07
105-06
105-07
105-05
105-06
105-07
105-04
105-07
105-04
See Fig.FA-3
Key No.217
See Fig.FA-3
Key No.217
105-05
105-06
105-07
105-03
270mm
クリーニングペーパ
CLEANING PAPER
280mm
350mm
See Fig.M-2
Key No.128
See Fig.M-2
Key No.127
101
102

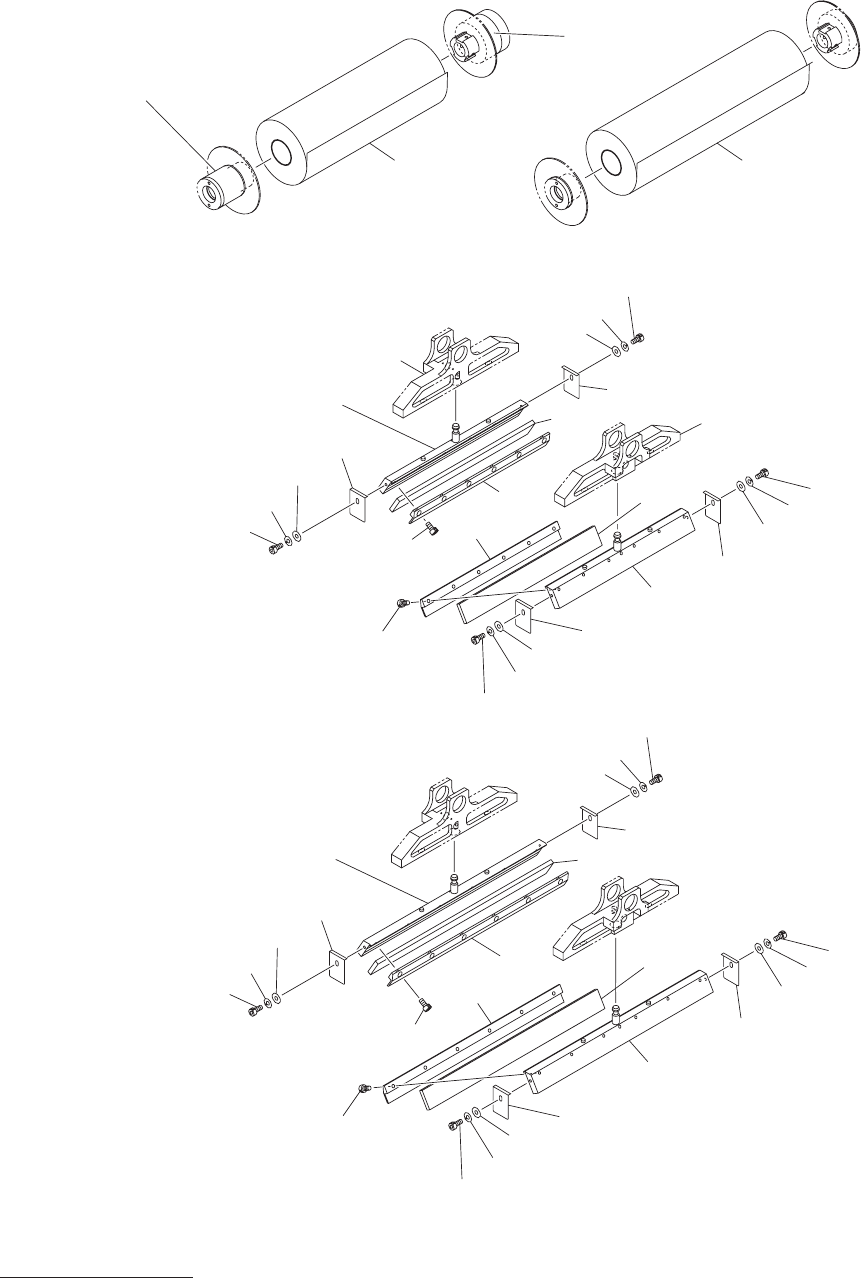

標準付属品
STANDARD ACCESSORIES
Fig. S-2
選択部品
Optional Parts
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TPM-110F/R-C
0509-002
167
101 630 091 1619 MECH PARTS(PAPER) 1 280mm 748S--33R-101
102 630 091 1633 MECH PARTS(PAPER) 1 350mm 748S--34R-102
105 630 116 0290 ASSY,SUPPORT(270) 2 270mm 748S--31R-105
105 -01 630 090 9951 SUPPORT 1
105 -02 630 090 9968 SUPPORT 1
105 -03 630 112 2939 SHEET 1
105 -04 630 112 2960 PLATE 2
105 -05 411 141 4008 WASHER V 4X9X0.8 2
105 -06 411 141 2905 WASHER SPR 4 2
105 -07 630 000 7626 BOLT,HEX-SCT 8
113 630 116 0306 ASSY,SUPPORT(350) 2 350mm 748S--32R-113
113 -01 630 090 9937 SUPPORT 1
113 -02 630 090 9944 SUPPORT 1
113 -03 630 112 2946 SHEET 1
113 -04 630 112 2960 PLATE 2
113 -05 411 141 4008 WASHER V 4X9X0.8 2
113 -06 411 141 2905 WASHER SPR 4 2
113 -07 630 000 7626 BOLT,HEX-SCT 8
S-2
