4 Printed Circuit Boards 156
00348267-020101ND4 893 board, conversion board for HS-50 PCB conveyor, component side
Valve for stopper, excess length PCB (option)
Prox. switch for stopper, excess length PCB (option)
Valve, stopper, placement sector 2
Proximity switch, stopper, placement sector 2
Valve, stopper, placement sector 1
Proximity switch, stopper, placement sector 1
Proximity switch, lifting table 2, top
Proximity switch, lifting table 2, bottom
Proximity switch, lifting table 1, top
Proximity switch, lifting table 1, bottom
Conveyor 1 (am) / Conveyor 2 (an)
X9
X32
X34
X35
X33
X14
X16
X31
X15
X13
X12
X10
X11
Connector
X4
X7
X8
X5
X2
X1
To X13ap
To X12ap
To X11ap
TSP200
control
Conveyor
00348267-020101ND3
SIEMENS AG
ATD TD MCH E
1-
G32918-L0019-B001-*-0017
Sheet
PC board
BOARD 893
Conversion board, PCB conveyor, HS50
Date 15.06.99
Name Dorfner
Stat. Modified Date Name
02
01
15.06.99
17.05.00 KD
KD
Motor, width adjustment
Motor, placement sector 2
Motor, output conveyor
Conveyor 1 (ao) / Conveyor 2 (ap)
Motor, intermediate conveyor
Motor, placement sector 1
Connector
X7
X8
X9
X10
X3
Motor, input conveyorX11
Limit switch, width narrowerX12
Limit switch, width widerX13
Ultrasonic sensor, input conveyorX14
Ultrasonic sensor, placement sector 1X15
Ultrasonic sensor, intermediate conveyorX16
Ultrasonic sensor, placement sector 2X17
Ultrasonic sensor, output conveyorX18
Light barrier, input conveyor, reservedX19
Light barrier, placement sector 1, reservedX20
Light barrier, intermediate conveyor, reservedX21
Light barrier, placement sector 2, reservedX22
Light barrier, output conveyor, reservedX23
Valve, ceramic substrate centering 1 (option)X24
Valve, ceramic substrate centering 2 (option)X25
Special design, placement sector 2 (Option)
Special design, placement sector 1 (Option)
To X13ao
To X12ao
To X11ao
Ultrasonic sensor, excess length PCB (option)
Prox. switch for ceramic substrate centering 2 (option)
Prox. switch for ceramic substrate centering 1 (option)
Proximity switch, width adjustment
4 Printed Circuit Boards 157
00349302-020101ND3 901 board, TSP200 conveyor control (Sh. 1 of 2)
00349302-020101ND3
SIEMENS AG
ATD TD MCH 2
1+
G32918-L0029-B001-*-0017
PC board
6-layer
Component layout, component side
Printed circuit board 901
Conveyor control
Date 18.04.00
Name Aretz
Stat. Modified Date Name
02
01
03
14.07.99
04.10.99
18.04.00
KI
KI
AR
C = ESD
Checked
03.05.00 ZR
ON
1 32 4 65
S1 address coding switch
Conveyor 1
564231
S1 address coding switch
ON
Conveyor 2
Siemens
Jumper settings
SMEMA
1
Siemens
J1
Siemens
SMEMA
SMEMA
J1
1
J2
1
J2
1
1
J1
J2
1
1
J4
J3
1
Sheet
Output conveyor
Input conveyor
Error loop
Error loop
SMEMA
J1
1
1
Siemens
J2
4 Printed Circuit Boards 158
00349302-020101ND3 901 board, TSP200 conveyor control (Sh. 2 of 2)
00349302-020101ND3
Conveyor control
Printed circuit board 901
SIEMENS AG
ATD TD MCH 2

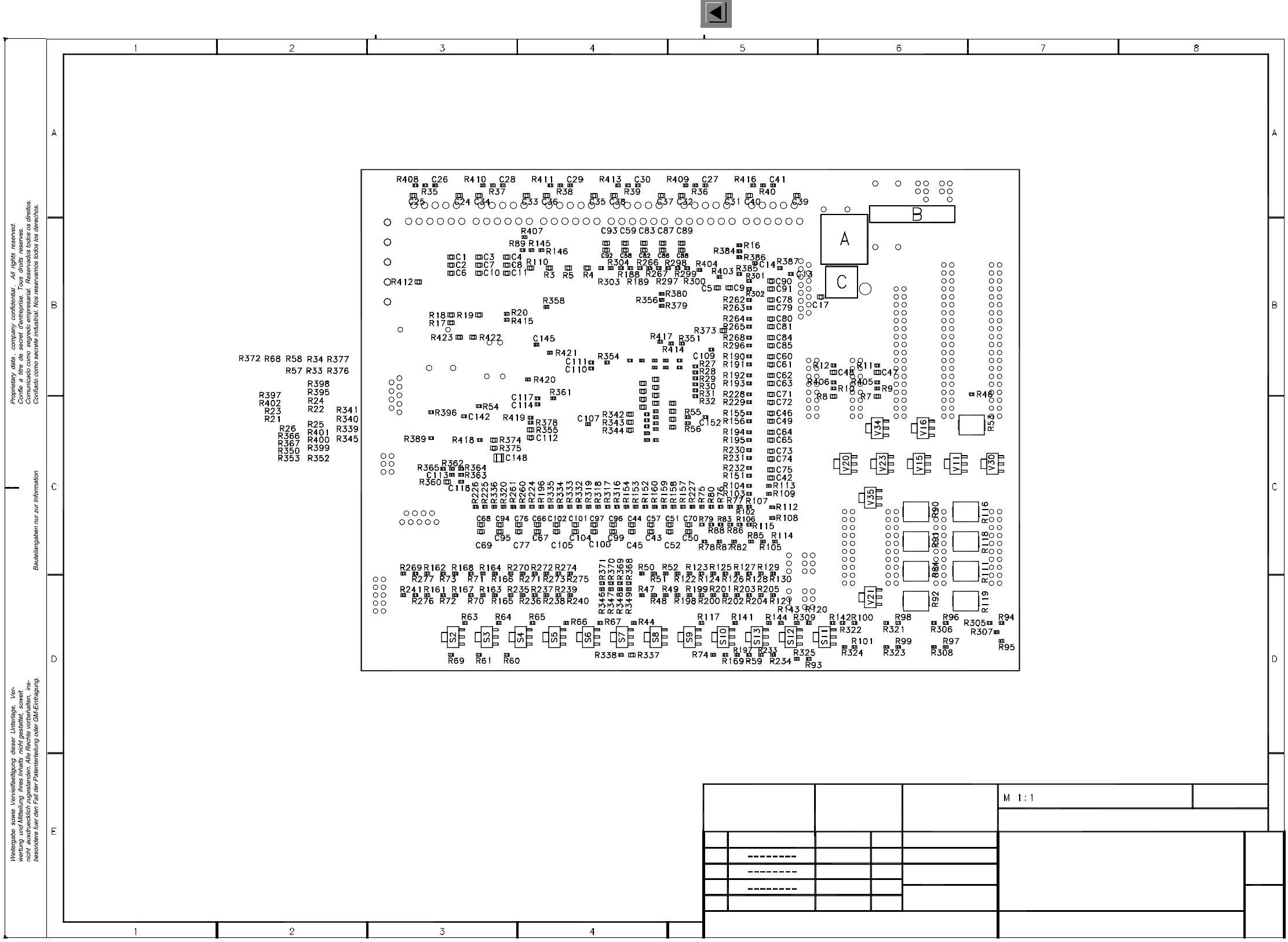

Component layout, solder side
