107 www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006 Automated Dispensing Systems Complete Guarded System Features and Benets • Light curtain meets safe…
106106
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006
Automated Dispensing Systems

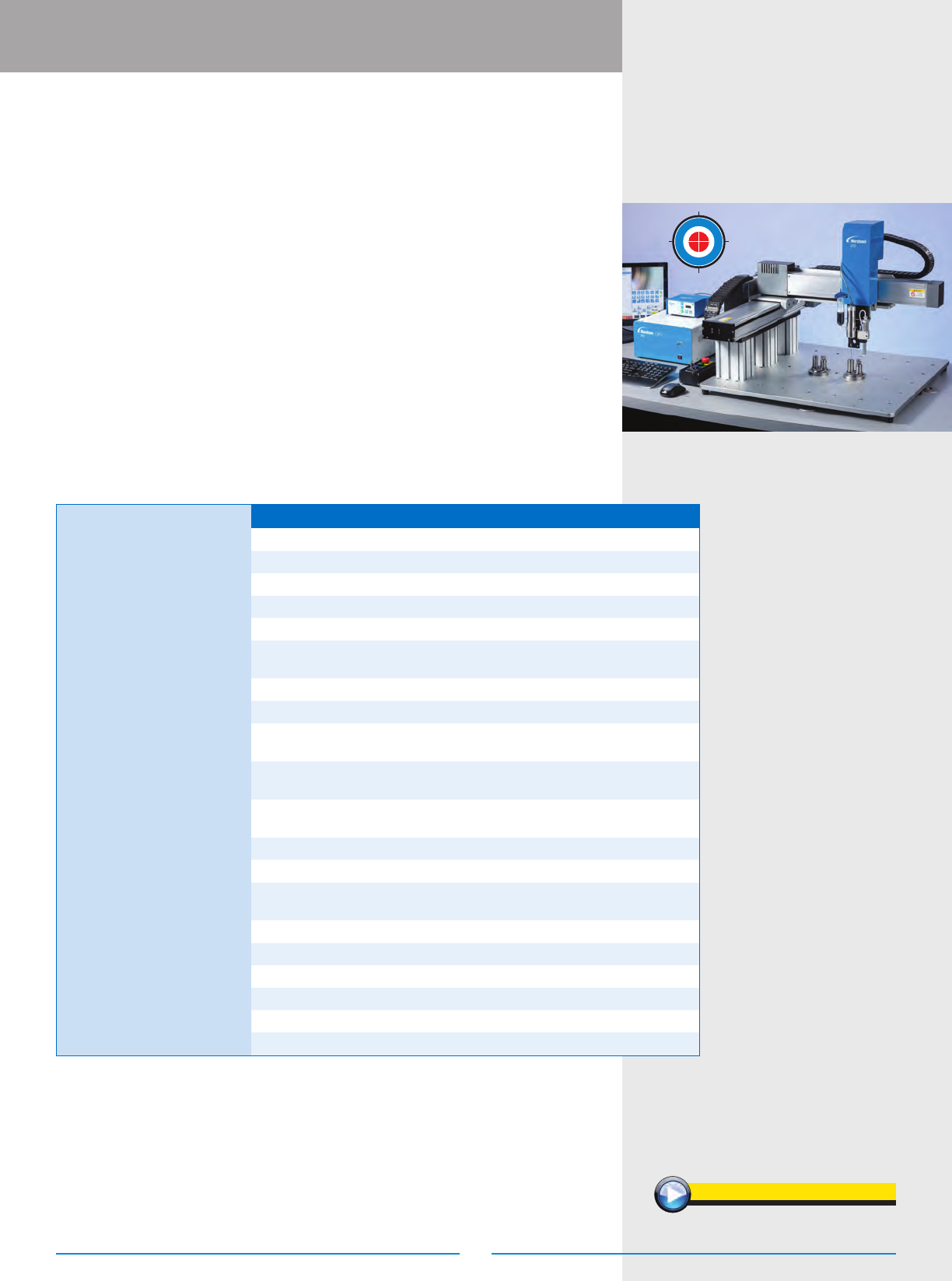

GV Series Automated
Dispensing System
+
/
-
0
.
0
2
m
m
I
M
P
R
O
V
E
D
R
E
P
E
A
T
A
B
I
L
I
T
Y
SPECIFICATIONS
Items/Models
G4V G8V
Part # (100 mm post) 7363644 7363647
Part # (150 mm post) 7363645 7363648
Part # (250 mm post) 7363646 n/a
Number of Axes
___________________________________________________
3
___________________________________________________
Maximum Working Area (X / Y / Z)
400 / 400 / 100 mm
(16 / 16 / 4")
800 / 800 / 100 mm
(31 / 31 / 4")
Tool Payload 3.0 kg (6.6 lb) 8.0 kg (17.6 lb)
Weight 63.5 kg (140.0 lb) 181.5 kg (400.1 lb)
Dimensions
833w x 382h x 730d mm
(33w x 15h x 29d")
1,489w x 534h x 1,160d mm
(59w x 21h x 46d")
Maximum Speed (XY / Z)
500 / 320 mm/s
(20 / 13"/s)
800 / 320 mm/s
(31 / 13"/s)
Drive System 5-phase micro-stepping motor
XY axis: Servo motor
Z axis: 5-phase micro-stepping motor
Memory Capacity
____________________________________________
PC storage
____________________________________________
General Purpose I/O
_________________________
8 inputs / 8 outputs (16 / 16 optional)
_ ________________________
Input AC (to power supply)
100–240 VAC, ±10%, 50/60Hz,
20 Amp maximum, 420 W
220 VAC, ±10%, 50/60 Hz,
10 Amp maximum, 420 W
Repeatability* ±0.02 mm / axis ±0.1 mm / axis
Vision Pencil camera CCD smart camera
DispenseMotion Software
______________________________________________
Included
______________________________________________
Tip Detection
_____________________________________
Tip detector (optional)
___________________________________
Height Detection
______________________________________
Mechanical (optional)
___________________________________
Approvals / Warranty CE, UKCA, RoHS, WEEE, China RoHS / 1 year, limited
Features and Benets
• Work envelopes as large as 800 mm
• Simplied setup and programming with EFD’s advanced vision-guided
DispenseMotion software
• Unlimited workpiece payload provides full range of dispensing application
opportunities
• Ideal for conveyer-fed automation
• Seamless integration into any manufacturing operation
Nordson EFD’s vision-guided GV Series automated dispensing gantry systems deliver
easy automation for precise uid applications. Working envelopes range from 400 mm
to 800 mm, making them an ideal solution for precise uid dispensing onto substrates
requiring large work envelopes while not sacricing repeatability. The GV Series can
work as a standalone system or as a key part of an automated solution and is easily
integrated into rotary tables and conveyor-fed assembly lines.
Verify uid deposit placement and accuracy with the OptiSure automated optical
inspection (AOI) software add-on.
The GV Series automated dispensing system
has an unlimited workpiece payload.
*Repeatability results may vary depending on method of measurement.
www.nordsonefd.com/GVSeriesVideo
Download CAD Models:
www.nordsonefd.com/CAD
107
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006
Automated Dispensing Systems
Complete Guarded
System
Features and Benets
• Light curtain meets safety requirements while providing easy access to the
dispensing system when necessary
• Complete control of the system from the outside of the enclosure, including
Start, Emergency Stop, and Run/Teach
• Solid construction resists bumps and jolts to maintain dispensing accuracy
• High-quality enclosure protects operators from operational hazards
• Protects the dispensing system from environmental conditions
• Compliant with EU Machinery Directive 2006/42/EC, essential for all
production requirements
Nordson EFD guarded safety enclosures integrate seamlessly with our complete line
of automated dispensing systems. Featuring external dispensing controls, a safety
light curtain, and an internal electrical control box and wireways for faster, safer
setup, these CE-compliant enclosures also fully comply with EU Machinery Directive
2006/42/EC.
7362738 Small Safety Enclosure
Compatible robot models E2, E2V, E3, E3V, PRO3,
PROPlus3.
7362766 Small Safety Enclosure, Europe
Compatible robot models E2, E2V, E3, E3V, PRO3,
PROPlus3.
7362739 Large Safety Enclosure
Compatible robot models E4V, E5, E5V, E6V, R3,
R3V, R4, R4V, G4V, PRO4, PROPlus4.
7362767 Large Safety Enclosure, Europe
Compatible robot models E4V, E5, E5V, E6V, R3, R3V,
R4, R4V, G4V, PRO4, PROPlus4.
“Automated tabletop dispensing has
significantly increased productivity by
removing the variability from our process. It
has also reduced our rejects by up to 90%.”
– Electrodynamics Inc.
108108
7360610
7361815
7362177
7364423*
7365000
7365933
7360613
7361758
7361114
7360609
7364040
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006
Automated Dispensing Accessories
MOUNTING BRACKETS
Bracket Part # Recommended Use PROPlus / PRO EV E RV R GV
EFD syringe barrels, all sizes
PICO
Pµlse
®
valves
Liquidyn
®
P-Jet and P-Dot Series valves
797PCP pump for one-component uid applications
— —
Shutoff valve for 797PCP-2K pumps
(pumps not included)
E3V–E6V E3–E5 — —
Shutoff valve for Equalizer™
— —
Universal for valves with mounting holes (752, 725, 741,
736, 781, 787, and 782 Series)
Universal for valves without mounting holes
(702, 754, 794 Series)
xQR41 Series valves
EV Series pencil camera —
— — — —
Air and cable management bracket (replaces bracket
P/N 7361670)
*To use this bracket on any PROPlus / PRO robot or a G8V robot, also order P/N 7364856.
**To mount a 797PCP on any PROPlus / PRO robot or on a G8V robot, use this bracket in tandem with the 797PCP / 797PCP-2K pump mounting bracket. This bracket is attached to the robot camera.
