139
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006

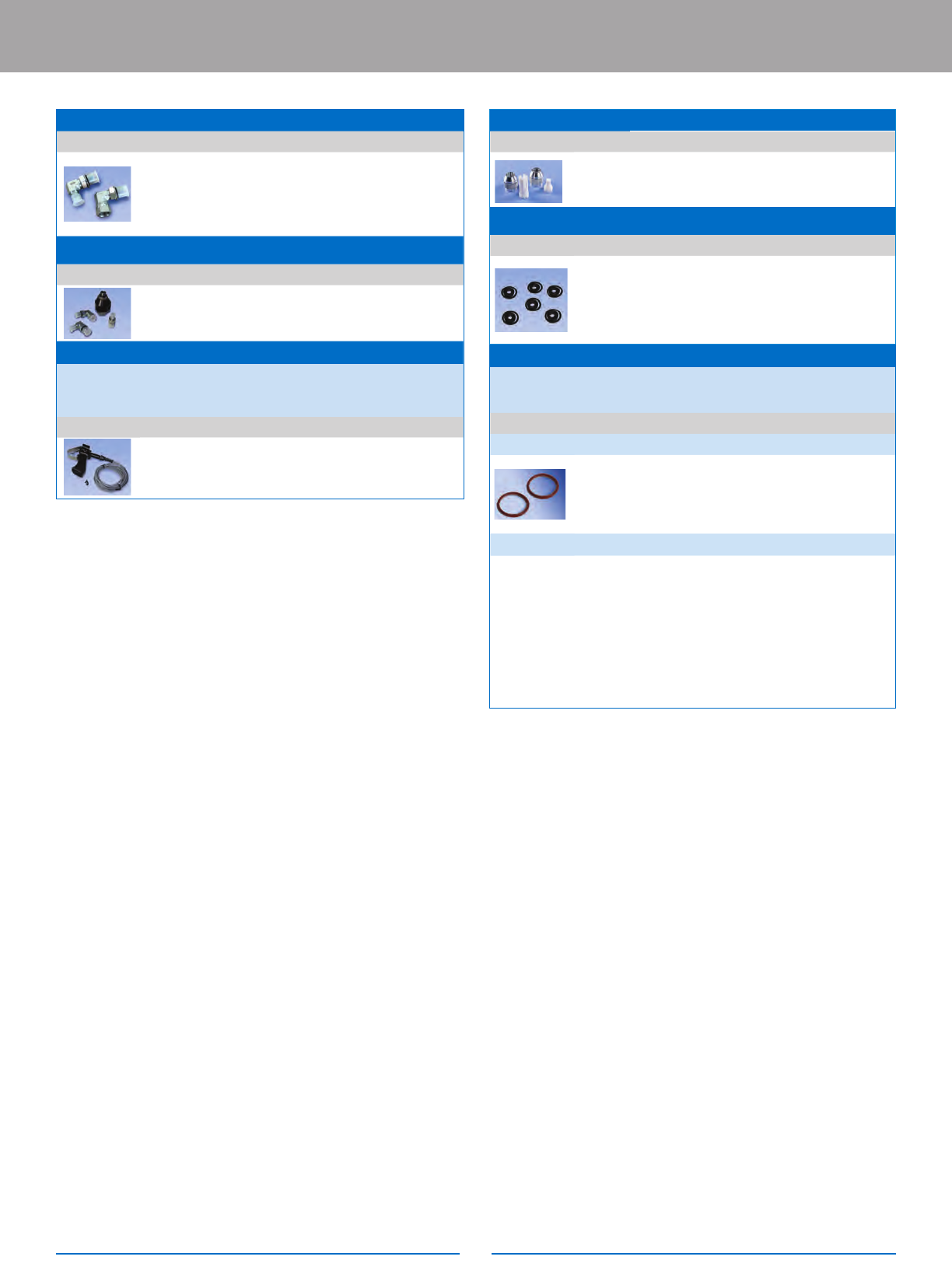

400 / 450 Autovalves Accessories
VALVE SEALS
Part Part # Material Color Description
O-rings
7702275 PTFE Orange Recommended with all chemicals
7702810 EP Black MEK, ketones, and acetones
U-cups
7702280 PTFE Aqua
With PTFE O-ring / Recommended
with all chemicals
7702277 UHPME Clear
With SS spring / Epoxies
(amine catalyst), polyesters,
and acrylics
7702281 PU Orange
With Viton O-ring / Epoxies
(general), polyurethanes, and
polysuldes
CARBON STEEL PIPE ADAPTERS
Part Part # Description
7702420 90° Elbow w/3/8" FNPS
7702425 Straight Adapter w/3/8" FNPS
7702429 2K V-Parts CS H-Adpt Elbow 1/2" FNPT
SWIVEL CHECK VALVE ADAPTERS
Part Part # Description
7702408 SS w/Alum. Collar, 1/4" FNPT
7702409 All SS, 1/4" FNPT
TRIGGER HANDLES
Part Part # Description
7701971 Pistol Grip Handle w/Electric Momentary Switch (24V)
7701977 Pistol Grip Handle w/Pneumatic Switch
If using an electric handle, a solenoid from an outside vendor is required.
Elbow adapters are available to connect material lines to the valve.
RATIO CHECK CAP AND NIGHT CAP
Part Part #
Description
7701181 PTFE Night Cap & Nut
7701184 PTFE Ratio Check Cap & Nut
REPAIR KITS
Part Part # Description
7704093 2K Kit 4X0 Repair TGT
7704095 2K Kit 4X0 Repair TPV
7704096 2K Kit 4X0 Repair TTT
EFD offers a wide variety of seal congurations for Series 400/450 autovalves. Select
both the O-ring and U-cup seals based on chemical compatibility.
140
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006
2K Accessories
BLOCK MANIFOLDS FOR MIXERS
Part Part # Material Inlet Outlet Solvent Ports Mixer
7701323
Aluminum (2) 1/8" FNPT 7/8 - 14 1/4" FNPT Series 160
7701325
Aluminum (2) 1/4" FNPT 7/8 - 14 1/4" FNPT Series 160
7701329
Aluminum (2) 1/2" FNPT 1-5/16 - 12 UN 1/4" FNPT Series 162A
ADAPTERS FOR MIXERS
Part Part # Material Inlet
7701252 Carbon Steel 11/16" Female NPT (for Venus Gun)
7701315
Carbon Steel 1" Male NPT
DISPENSING TIPS FOR MIXERS
Nordson EFD’s two-component manifolds separately port the resin and hardener into the mixing nozzle. Cleanup simply involves wiping the
manifold face after the nozzle has been removed. To prevent back ow or cross contamination of reactive material, inline check valves are
available. Designed for when you’re dispensing without a meter mix valve, but directly through the mixer. For use with Series 160 and 162A.
Mixers can be connected to some pre-existing manifolds or valves using adapters. Contact Nordson EFD for details. For use with Series 85,
100, 160, and 162A.
Luer Lok adapters (locking hubs) are used for attaching Optimum dispensing tips to Series 190 and 160 mixers. If you
want to use a metal jacket with the 3.16” ID or 1/4” ID bell mixers, order the mixer and the Luer Lok tting as two
separate items unassembled: square hub outlet and #7700943 Luer Lok tting (bag of 50). See Optimum Dispensing
Tips for details.
Insert restrictor
Flow restrictor
Remove plug
Attach mixer
FLOW RESTRICTORS
Part # Type Orifice Size (in/mm) Material Color u-TAH
7660764 Flat 1.6 x 1.6 mm (0.063 x 0.063") LDPE Black —
7660766 Flat Dual Slit LDPE Black —
7661231 Tabbed 2.4 x 2.4 mm (0.094 x 0.094") LDPE White —
7702861 Conical 1.6 x 1.6 mm (0.063 x 0.063") PP Transluscent
3
Nordson EFD recommends the use of our Flow Restrictor when dispensing cartridges lled with low viscosity uids. Thin adhesives are often
too free owing and can cause cross-contamination, lead/lag problems, and plugging. Our low-cost, plastic Flow Restrictor eliminates these
issues by slowing the thinner component’s ow. Use the smallest orice possible, based on material viscosity.
141
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006
2K Accessories
RETAINING NUTS FOR MIXERS & METER MIX VALVES
Part Part # Material Thread Mixer
7701110 Aluminum 2K Standard 7/8 - 14 Series 160 with ID 0.189-0.248"
7701113 Aluminum 2K Standard 7/8 - 14 Series 160 with ID 0.314-0.497"
7701114 Aluminum Alternative 7/8 - 9 Series 160 with ID 0.314-0.497"
7701115 Aluminum 2K Standard 7/8 - 14 Series 141 & Series 161 (all)
7701116 Aluminum Alternative 7/8 - 9 Series 161 (all)
7701108 Aluminum 1-1/16 - 12 Series 141 (all)
7026515 Carbon Steel 1-5/16 - 12 UNF Series 162A (all)
7701132 Aluminum 1-1/4 - 12 NS Series 141 (all)
7701118 Aluminum 2K Standard 7/8 - 14 Series 141 (all)
ONE-PIECE METAL JACKETS FOR MIXERS ON METER MIX VALVES
For medium- and high-pressure systems where pressure inside the mixer is greater than 150 psi (10 bar), we recommend that a metal jacket
be used over the mixing nozzle. Select Robotic version where repeat positioning is required.
Part Part # Material Thread Mixer Part # Mixer
7701124 Aluminum, Robotic 2K Standard 7/8 - 14 7700837 Series 160
7701140 Aluminum 2K Standard 7/8 - 14 7700819 Series 160
7701143 Aluminum 2K Standard 7/8 - 14 7700856 Series 160
7701163 Aluminum Alternative 7/8 - 9 7013510 Series 160
7701167 Aluminum 2K Standard 7/8 - 14 7700904 Series 160
7701165 Aluminum, Robotic 2K Standard 7/8 - 14 7700904 Series 160
7701171 Aluminum 2K Standard 7/8 - 14 7700927 Series 160
7701170 Aluminum, Robotic 2K Standard 7/8 - 14 7700927 Series 160
7701174 Aluminum 2K Standard 7/8 - 14 7700932 Series 160
7701203 ACS Nut / SS Jacket 2K Standard 7/8 - 14 7701010, 7701049 Series 160
7701208 Aluminum, Robotic 2K Standard 7/8 - 14 7701010, 7701049 Series 160
7701210 CS Nut / SS Jacket 2K Standard 7/8 - 14 7701028 Series 160
7701396 Aluminum, Robotic 2K Standard 7/8 - 14 7361695 Series 480
7701226 CS Nut/SS Jacket 1-5/16 - 12 7701059 Series 162A
Available to hold mixing nozzles onto adapters, block manifolds, and meter mix valves. Also used when a metal jacket is not required.
