PART No. ｲﾗｽﾄ No. REF No. PART NAME REMARKS Q'TY 4 基板搬送部( ﾛｰﾀﾞ・ｱﾝﾛｰﾀﾞ 部1) P.C.B.TRANS FER SECT.(LOAD ER & UNLOADE R SECT.-1) 部 品 名 品 番 個数 備 考 R 1 R 2 1 1081105200 LOADER & UNLO ADER UNIT ﾛｰﾀ ﾞｱﾝﾛｰﾀﾞﾕﾆｯﾄ 1 20…

100%1 / 220

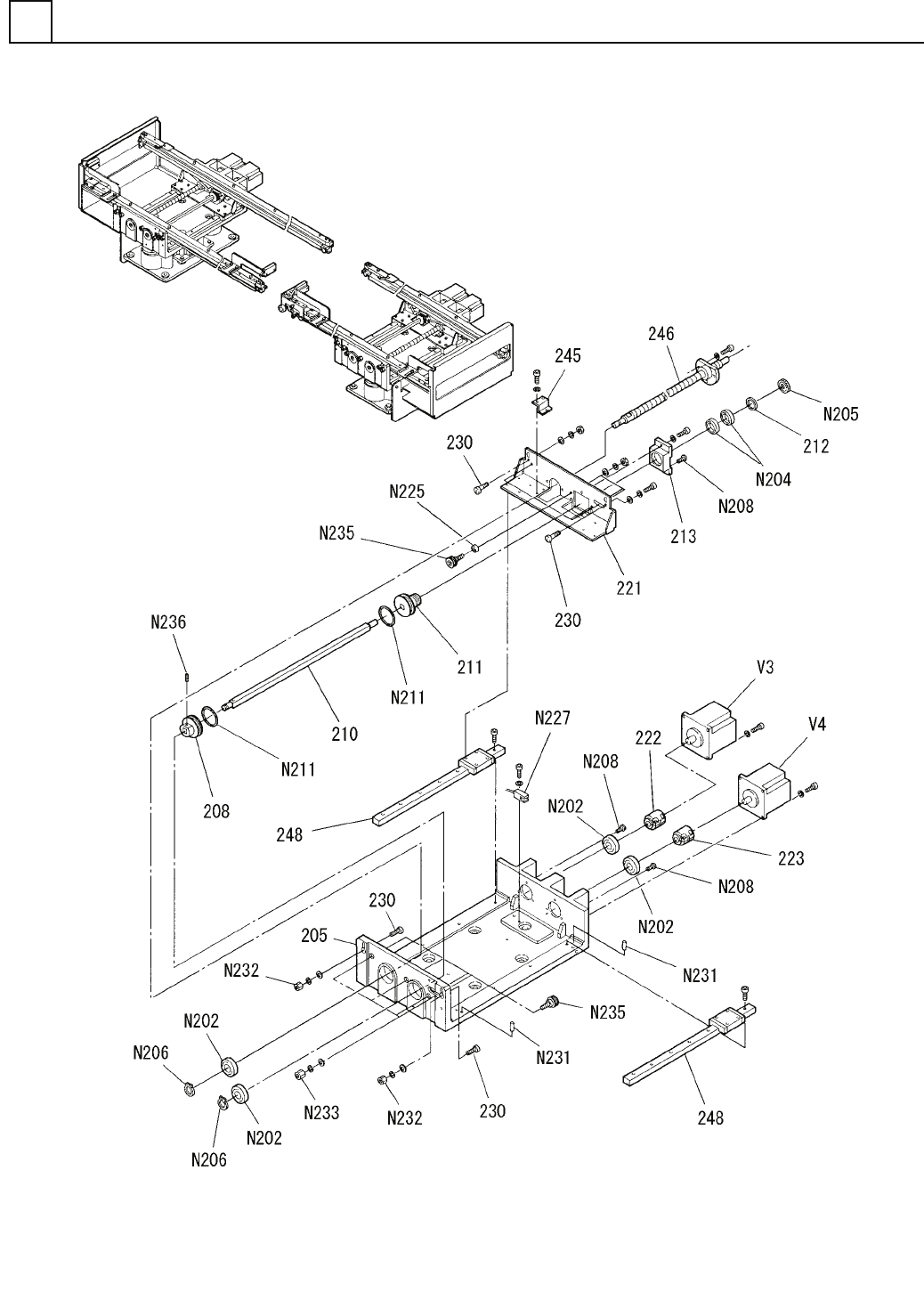

基板搬送部(ﾛｰﾀﾞ・ｱﾝﾛｰﾀﾞ部1)
P.C.B.TRANSFER SECT.(LOADER & UNLOADER SECT.-1)
4
F10811-05-200-AK-1
M65
PART No.
ｲﾗｽﾄ
No.
REF
No.
　　　
　　　　　　　　　 PART NAME
　　　 REMARKS　
Q'TY
4
基板搬送部(ﾛｰﾀﾞ・ｱﾝﾛｰﾀﾞ部1)
P.C.B.TRANSFER SECT.(LOADER & UNLOADER SECT.-1)
部 品 名 品　 番 個数
備 考
R
1
R
2
1 1081105200
LOADER & UNLOADER UNIT ﾛｰﾀ
ﾞｱﾝﾛｰﾀﾞﾕﾆｯﾄ
1
204 108110520408
RIGHT FRAME ﾌﾚｰﾑ(RIGHT)
1
208 108117888301
PULLEY ﾌﾟｰﾘｰ
1210 108110521001
SHAFT ｼｬﾌﾄ
1211 108117888401
PULLEY ﾌﾟｰﾘｰ
1
212 1081104334
COLLAR ｶﾗｰ
1
213 1081105213
HOUSING ﾊｳｼﾞﾝｸﾞ
1220 108110522005
BRACKET ﾌ
ﾞﾗｹｯﾄ
1222 108110522201
COUPLING ｶｯﾌﾟ
ﾘﾝｸﾞ
1
223 108110522301
COUPLING ｶｯﾌﾟﾘﾝｸﾞ
4230 1081105230
PIN ﾋﾟﾝ
1245 1081105245
DOG FOR SENSOR ﾄ
ﾞｸﾞ
1
246 1081105246
SCREW ﾈｼﾞ
1
248 108110524801
LINEAR MOTION UNIT ﾘﾆｱﾓｰｼｮﾝﾕﾆｯﾄ
6200ZZ
4
N202
XLCN6200ZZ
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ
6803ZZ
2
N204
XLCN6803ZZ
BALL BEARING ﾎﾞｰﾙﾍ
ﾞｱﾘﾝｸﾞ
FU03SS
1
N205
XNRNFU03SS
LOCK-NUT ﾛｯｸﾅｯﾄ
STW-10
2
N206
XUBNSTW10
SNAP RING ﾄﾒﾜ
M3X8,+,STEEL,Z.C.T
8
N208
XST3+8FY
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ
CO0019B
2
N211
N5541BP22AN
O-RING O
ﾘﾝｸﾞ
WSSM8-5-3
4
N225
N560WSSM853
WASHER ｻﾞｶﾞﾈ
P914S1
1
N227
N310P914S1
SENSOR ｾﾝｻ
MS4-10
2
N231
N986MS410
PARALLEL PIN ﾍｲｺｳﾋ
ﾟﾝ
SB-O3-7
2
N232
N986SB037
SPACER ｽﾍ
ﾟｰｻ
SB-O4-8
4
N233
N986SB048
SPACER ｽﾍﾟｰｻ
MB023600
8
N235
N510005368AA
PULLEY ﾌﾟｰﾘｰ
M4X4,STEEL,Z.C.T
1
N236
XXE4D4FY
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼ
ﾞ
PK266-02A S
1
V 1 3081143931
MOTOR ﾓｰﾀ
PK566H-NA S
1
V 2 3081143434
MOTOR ﾓｰﾀ
M66
F10811-05-200-AK-1
基板搬送部(ﾛｰﾀﾞ・ｱﾝﾛｰﾀﾞ部2)
P.C.B.TRANSFER SECT.(LOADER & UNLOADER SECT.-2)
4
F10811-05-200-AK-2
M67
