– 37 – T ap e F e ed er G T -2 8080 ,2 808 2 No. Part No. Part Name Qty . Detail Y amaha Hitachi GT -28080 GT -28082 334 90166-02J208 221DA003 SCREW ,P AN HEAD 4 4 P AN M2L8 382 KYD-MC13T -00 222M1329 SPRING_COMP 2 2 385…
– 36 –
8mm
W

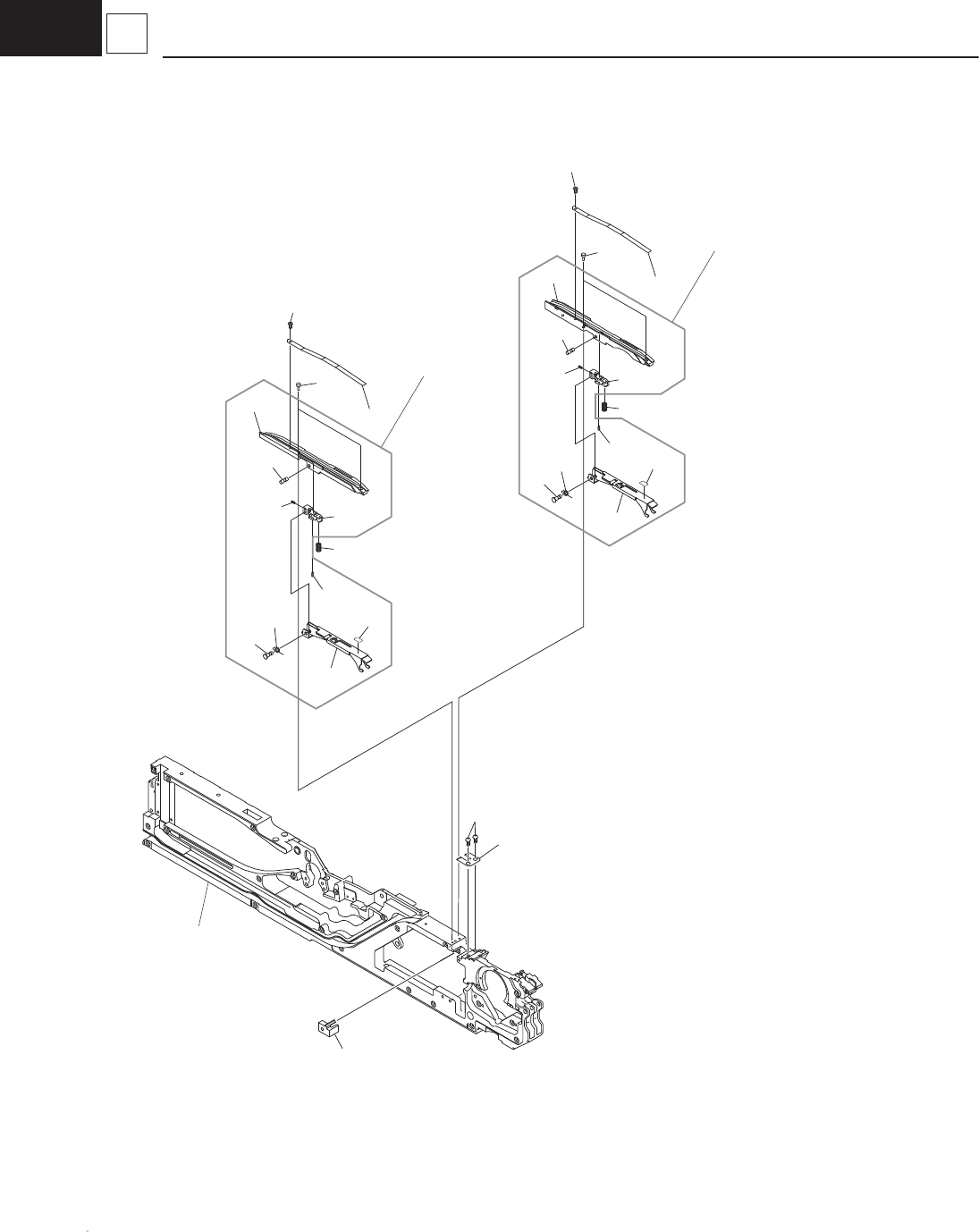

4 Cover Tape Winding Section
1710-006
See Fig.W-1
Key No.B1
KYM-M862V-00
KYM-M862W-00
KYM-M861S-00
KYD-MCN13-00
KYM-M867C-00
KYD-MCN14-00
KYD-MCN2N-00
KYD-MCN2N-00
KYD-MC16Y-00
389
386
3H3
394
3A4
334
3A5
3A3
385
392
3H2
3A6
3A9
3A2
3E6
391
382
3E3
3E2
3E4
3E1
3E5
396
3D2
3B2
KYD-MC171-00
389
334
391
382
3F3
3F1
3F4
3C5
3C3
385
3H6
394
3H8
387
3H1
3G1
3G2
3G3
3G1
3G2
3G3
3C2
392
393
3H7
3C9
3C4
3C6
3F6
3F5
3F2
395
387
– 37 –
Tape Feeder GT-28080,28082
No.
Part No.
Part Name
Qty.
Detail
Yamaha Hitachi
GT-28080 GT-28082
334 90166-02J208 221DA003 SCREW,PAN HEAD 4 4 PAN M2L8
382 KYD-MC13T-00 222M1329 SPRING_COMP 2 2
385 KYD-MCN3L-00 213C0207 ROLLER(A) 2 2
386 KYD-MCN3X-00 216F0998 PIN_GUIDE 1 1
387 KYD-MC129-00 0926B201 SPRING_COMP 2 2
389 KYD-MCN2G-00 4M130018 MOTOR_DC 2 2 M91,M92
391 KYD-MCN3T-00 216E1732 PIN_LOCATE 2 2
392 90990-01J135 221AA089 BOLT_HEX-SCT 4 4 M2.5L6 SW+FWS
393 90990-01J142 221AA107 BOLT_HEX-SCT 2 2 M3L14 SW+FW
394 90440-01J025 221KB002 RING_E_025W 2 2
395 90990-02J037 221C0100 SET SCREW(SET SCREW) 1 1 SET M2L3
396 KYD-MCN3Y-00 216K0159 SET_COLLAR 2 2
3A2 KYM-M8610-00 223E0516 GEAR 1 1
3A3 KYD-MCN39-00 0926B20W GEAR 1 1
3A4 KYD-MC11X-00 211AC677 COVER(MAKI-2) 1 1
3A5 KYD-MCN3R-00 216E1539 PIN_LOCATE 2 2
3A6 90166-12J204 221DA060 MACHINE SCREW 1 1 PAN M2L6 SW+FWS
3A9 KYD-MCN28-00 211AB091 COVER 1 1
3B2 90440-01J020 221KA002 ROHS_RING 1 1 E RING 2
3C2 KYM-M8610-00 223E0516 GEAR
1 1
3C3 KYD-MCN39-00 0926B20W GEAR 1 1
3C4 KYD-MC11X-00 211AC677 COVER(MAKI-2) 1 1
3C5 KYD-MCN3R-00 216E1539 PIN_LOCATE 2 2
3C6 90166-12J204 221DA060 MACHINE SCREW 1 1 PAN M2L6 SW+FWS
3C9 KYM-M860X-00 211AB090 COVER 1 1
3D2 90440-01J020 221KA002 ROHS_RING 1 1 E RING 2
3E1 KYD-MCN0S-00 016S1019 ASSY_LEVER 1 1
3E2 KYK-M864C-00 223E0499 GEAR 1 1
3E3 KYD-MC13P-00 216E1731 PIN_LOCATE 1 1
3E4 KYD-MC13F-00 211G5776 BLOCK(L) 1 1
3E5 90167-02JA06 221DA103 MACHINE SCREW 1 1 FLT M2.5L6
3E6 90166-12JA02 221DA008 MACHINE_SCREW 2 2 PAN M2.5L6 SW+FWS
3F1 KYD-MCN67-00 016S1018 ASSY LEVER 1 1
3F2 KYK-M864C-00 223E0499 GEAR 1 1
3F3 KYD-MC13P-00 216E1731 PIN_LOCATE 1 1
3F4 KYD-MC13G-00 211G5777 BLOCK(R) 1 1
3F5 90167-02JA06 221DA103 MACHINE SCREW 1 1 FLT M2.5L6
3F6 90166-12JA02 221DA008 MACHINE_SCREW 2 2 PAN M2.5L6 SW+FWS
3G1 KYD-MC13Y-00 23G10088 SENSOR_PHOTO 1 1
3G2 KYD-MCN3B-00 0926B401 SEAL 2 2
3G3 KYD-MCN3A-00 0926B400 SEAL 1 1
3H1 KYM-M8618-00 0926B20L ASSY LEVER 1 1
3H2 KYD-MC13S-00 221F0137 NUT_HEX 1 1 M3
3H3 KYD-MC13R-00 216F1000 PIN_GUIDE(BANE) 1 1
3H6 KYM-M8619-00 0926B20M ASSY_LEVER(R) 1 1
3H7 KYD-MC13S-00 221F0137 NUT_HEX 1 1 M3
3H8 KYD-MC13R-00 216F1000 PIN_GUIDE(BANE) 1 1
1710-006
