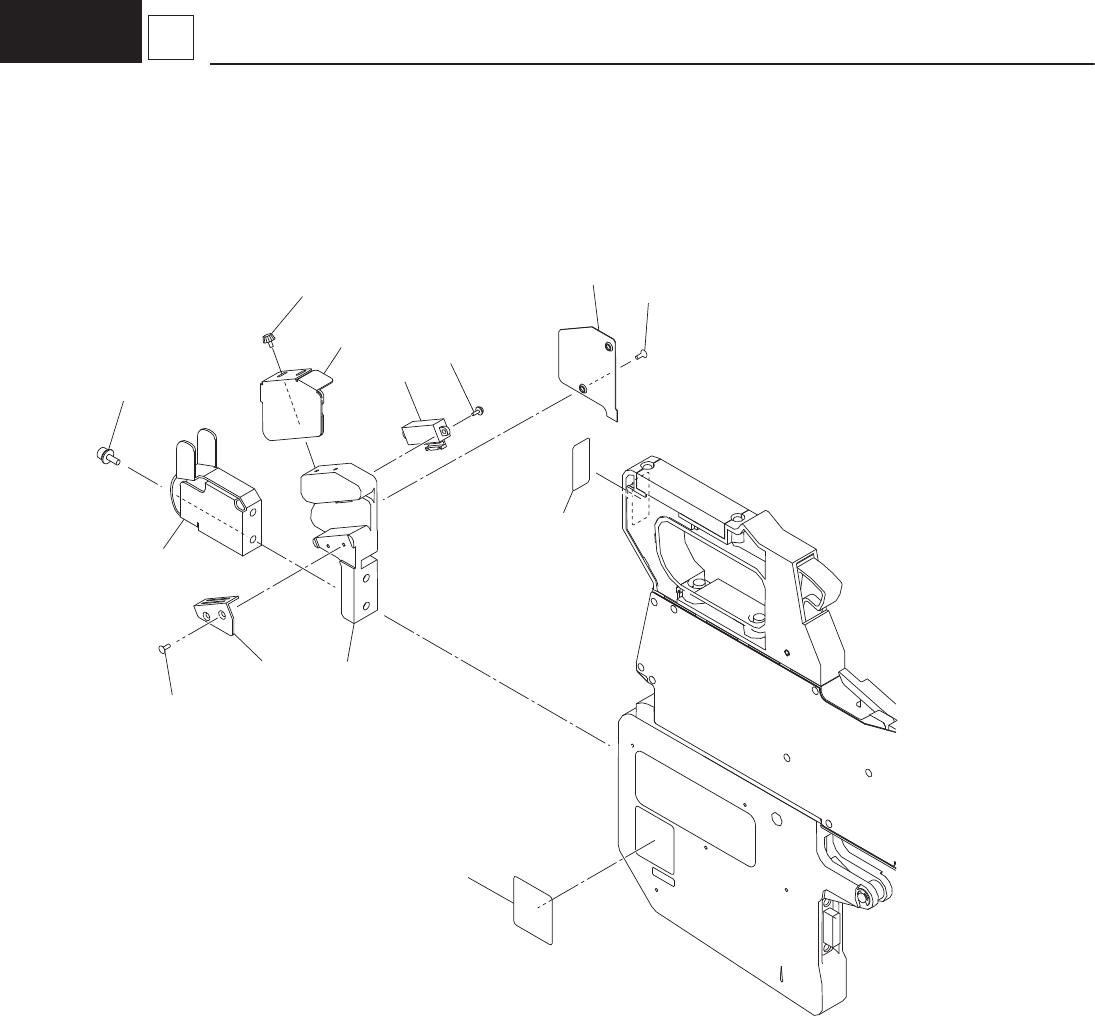

Joint Detection Unit DS-12162
1710-006
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
3 KYD-MC208-00 0926000N ASSY_NAMEPLATE 1
4 KYD-MC209-00 0926000P ASSY_NAMEPLATE 1
5 90990-01J150 221A0098 BOLT_HEX-SCT 2 M4L20 SW+FW
11 KYD-MC232-00 210B4392 FRAME 1
12 KYD-MC235-00 011A0007 ASSY_COVER 1
13 KYD-MC237-00 211A9111 COVER(D) 1
14 KYD-MC238-00 211D9941 PLATE 1
15 KYD-MC140-00 23G10090 SENSOR_PHOTO 1
16 90166-12J206 221DA065 MACHINE_SCREW 2 PAN M2L6 SW+FWS
17 90167-02JA06 221DA103 MACHINE SCREW 4 FLT M2.5L6
18 KYD-MC236-00 0926J003 MACHINE_SCREW 2
19 KYD-MC234-00 212A2467 GUIDE 1
D Ver の場合は下記 Part No. となります。
No.3 : KYD-MC208-10
No.4 : KYD-MC209-10
In the case of D Ver, it becomes the following part number.
No.3 : KYD-MC208-10
No.4 : KYD-MC209-10
