– 71 –

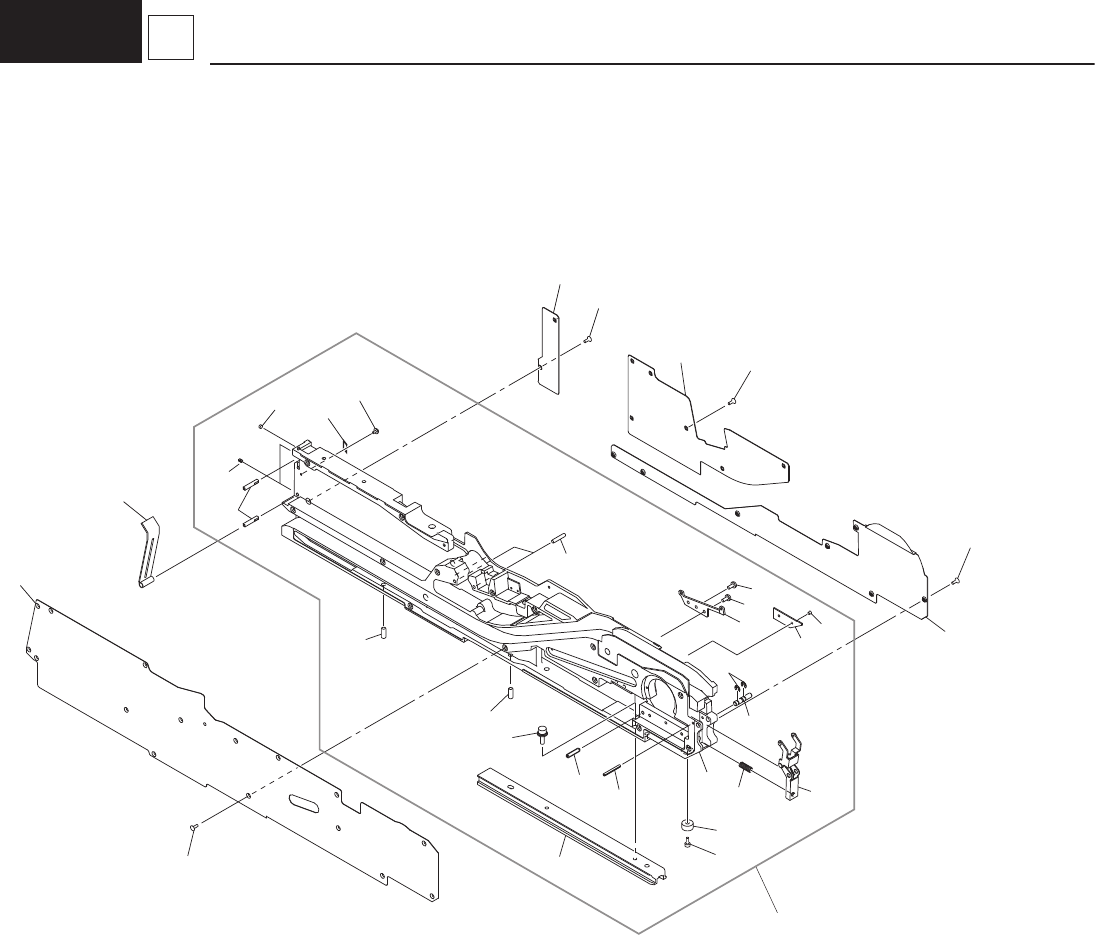

Tape Feeder GT-12162
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
3 KYD-MC214-00 211AD446 COVER(LA) 1
4 KYD-MC215-00 211AD447 COVER(LB) 1
5 KYD-MC223-00 211AD448 COVER(LC) 1
6 KYD-MC216-00 211AE090 COVER(R) 1
20 KYD-MC224-00 211AD624 COVER(FUTA) 1
21 KYB-M3824-00 226J1958 MECH-P MAGNET 1
25 90167-02JA06 221DA103 MACHINE SCREW 31 FLT M2.5L6
B1 KYD-MC204-00 210B4500 FRAME 1
B2 KYD-MCN3P-00 216E1485 PIN_LOCATE 3
B3 KYD-MC21S-00 0926C017 PLATE 1
B4 90167-02JA06 221DA103 MACHINE SCREW 1 FLT M2.5L6
B5 90166-02JA06 221DA005 MACHINE SCREW 2 PAN M2.5L6
B6 KYD-MC218-00 211DE587 PLATE 1
B7 KYB-M91E9-00 221D0201 MACHINE_SCREW 2 PAN M2L3.5
B8 91609-20018 221J0066 PIN,SPRING 1 2L20
B9 KYD-MC20E-00 016J0025 ASSY_HOOK 1
C0 KYD-MC229-00 216D0466 PIN_HINGE(FRONT) 1
C1 KYD-MCN41-00 222M1491 SPRING_COMP 1
C2 90440-01J025 221KB002 RING_E_025W 2 E RING 2
C3 KYD-MCN4D-00 226J0249 RUBBER_LEGS 1
C4 90115-2AJ006 221A0104 BOLT,HEX-SCT 1 M2.5L6
C5 KYC-M3716-00 216E1741 PIN_LOCATE 4
C6 KYD-MC22B-00 216E1712 PIN_LOCATE 2 3L18
C7 90990-02J015 221C0107 SCREW,SET
2 SET M2L4
C8 KYD-MC13X-00 226J1909 MECH-P_CUTTER 1
C9 90166-12J204 221DA060 MACHINE SCREW 1 PAN M2L4 SW+FWS
D0 KYB-M940H-00 1016B005 SLIDE(BASE) 1
D1 90990-01J146 221AA102 BOLT,HEX.S/H WW 2 M4L14 SW+FW
